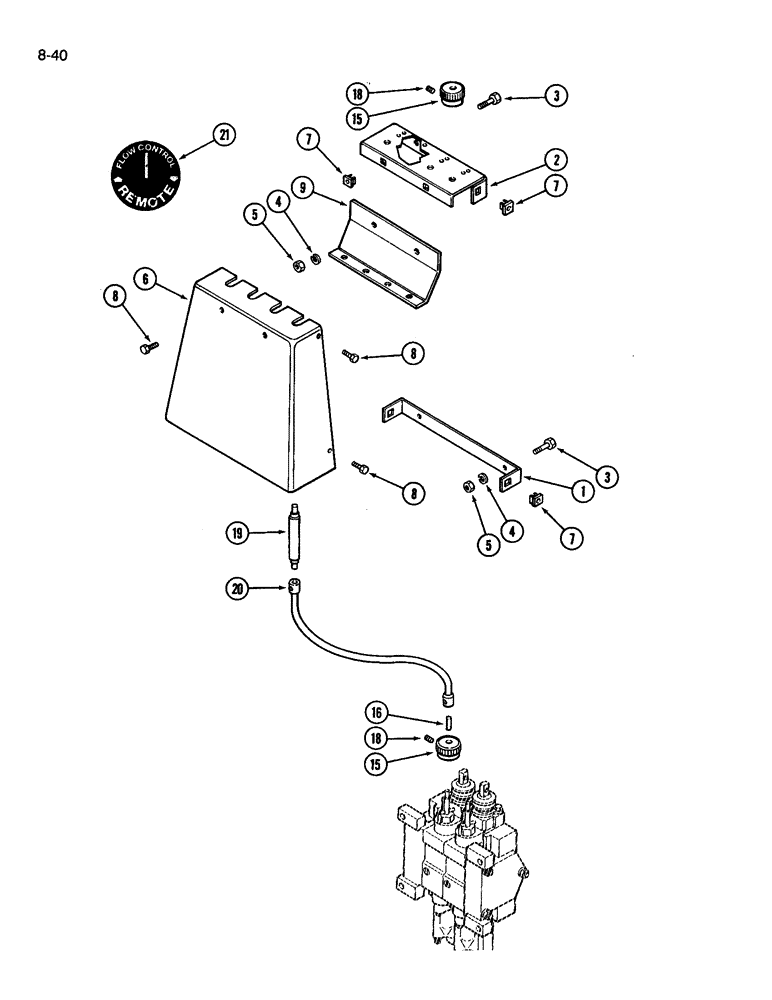

Запчасти Case IH 3594 (8-040) - REMOTE HYDRAULIC FLOW CONTROLS (08) - HYDRAULICS

A67475

KIT

Console, remote flow control, Order components, Includes Ref. 1 - 9

1шт.

1

A160314

KNOB

BRACKET flow control

1шт.

2

A160256

SUPPORT

shroud, flow control

1шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

4шт.

6

A160259

PANEL

SHROUD flow control

1шт.

7

A67319

NUT

shroud

6шт.

8

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

9

A160257

BRACKET

flow control

1шт.

A67476

KIT

Remote Flow Control, Order components, Includes Ref. 15 - 21

1шт.

15

A160814

KNOB

flow control

2шт.

16

A160815

PIN

flexible shaft

2шт.

18

84-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW set, hex socket, No. 10 NF x 5/8 inch

3шт.

19

A147636

SHAFT

rigid, flow control

1шт.

20

A149146

SHAFT

flexible, flow control

1шт.

21

321-4129

DECAL

flow control

1шт.

3

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
