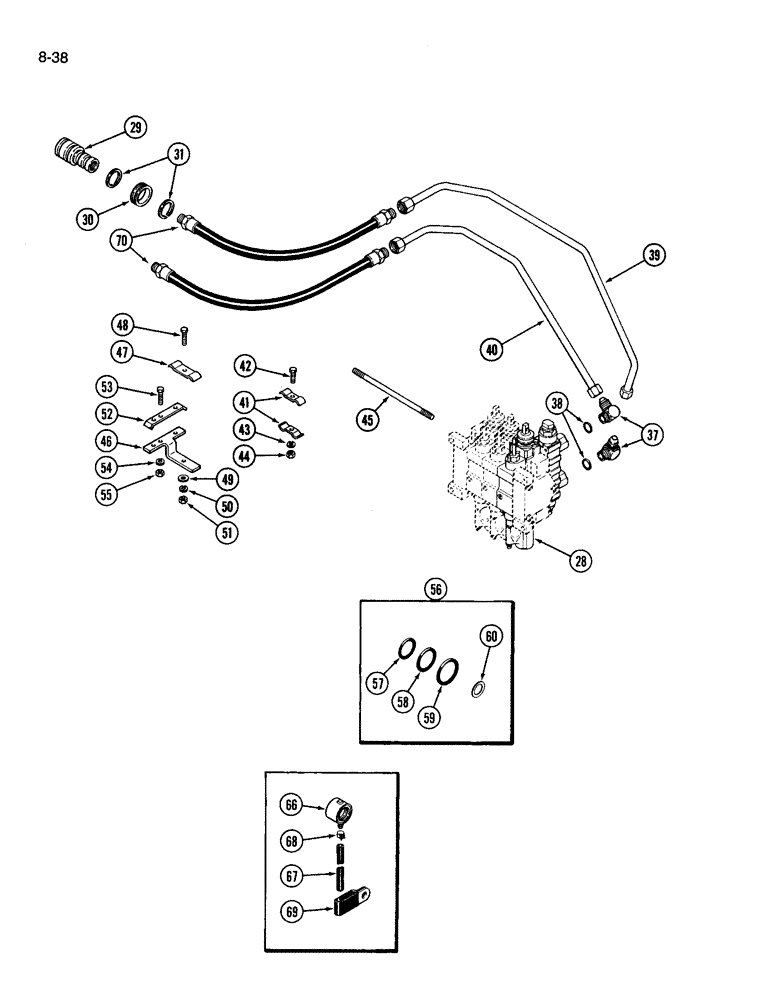

Запчасти Case IH 3594 (8-038) - REMOTE HYDRAULICS ADD ON ATTACHMENT, THIRD CIRCUIT WITH LOAD (08) - HYDRAULICS

A181932

ATTACHMENT remote hydraulics, 3rd circuit, Replaces A180264, machinery item, Order components, Includes Ref. 28 - 70

1шт.

28

REF

INSTRUCTION

REMOTE VALVE BODY ASSEMBLY, See Figure 8-056 through 8-060

1шт.

29

REF

INSTRUCTION

COUPLING remote hydraulic, female, See Figure 8-064

2шт.

30

A139805

RETAINER

coupling

2шт.

31

104-11150

SNAP RING,#150, 1.408", Ext

RING retaining

4шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

A181337

TUBE

valve to No. 5 coupling

1шт.

40

A181339

TUBE

valve to No. 6 coupling

1шт.

41

A63323

CLAMP

tube

2шт.

42

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

45

A147507

STUD

3/8 NC x 9-7/8 inch

3шт.

46

A147771

BRACKET

support, tube clamp

1шт.

47

A17542

CLAMP

tube

1шт.

48

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch

1шт.

49

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch

1шт.

50

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

1шт.

52

A147772

CLAMP

tube

1шт.

54

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

55

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

2шт.

56

A47576

KIT

Seals and Shims, Order components, Includes Ref. 57 - 60

1шт.

57

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

3/4 ID x 1/8 inch wide

1шт.

58

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

59

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

5шт.

60

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

3шт.

66

A177479

CAP

dust, coupling

2шт.

67

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (Cut to Length) 7.90 mm ID x 914.40 mm, SAE J200

2шт.

68

A180159

CLAMP,10.29mm - 12.32mm

hose

2шт.

69

A180154

CLAMP

hose

1шт.

70

A181359

HOSE,12.70 mm ID x 782.00 mm, SAE 100R2

- - Remote tubes to couplings 12.70 mm ID x 782.00 mm, SAE 100R2

2шт.

53

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
