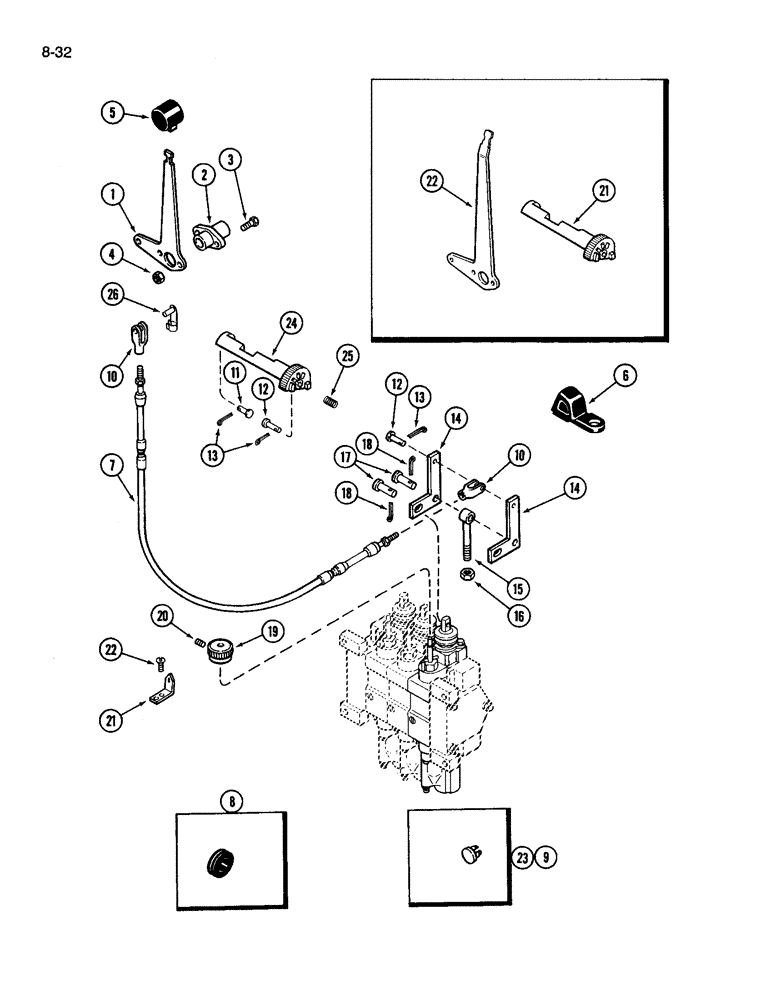

Запчасти Case IH 3594 (8-032) - REMOTE HYDRAULICS ADD ON ATTACHMENT, THIRD OR FOURTH CIRCUIT WITHOUT LOAD CHECK (08) - HYDRAULICS

A181930

ATTACHMENT

remote hydraulics, 3rd or 4th circuit, Replaces A180262, machinery item, Includes Ref. 1 - 26

1шт.

1

A141392

LEVER

inner, 3rd circuit

1шт.

2

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING control lever

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

5

A177438

KNOB

hand lever, black

1шт.

6

A141542

LEVER

TAB float lockout

1шт.

7

A177635

CABLE

control lever to valve, 57" long

1шт.

8

A141389

GROMMET

cable

1шт.

9

A67295

PLUG

9/16 inch diameter head

2шт.

10

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS adjustable, No. 10

2шт.

11

A167543

PIN,4.72mm OD x 19.99mm L

clevis

2шт.

12

A67313

PIN

clevis

2шт.

13

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

3шт.

14

A145598

LEVER

remote valve bellcrank

2шт.

15

A145597

EYE

bellcrank pivot

1шт.

16

425-146

JAM NUT,3/8" - 16, Gr 5

hex, jam, 3/8 inch NC

1шт.

17

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

18

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

19

A160814

KNOB

flow control

1шт.

20

84-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW set, hex socket, No. 10 NF x 5/8 inch

1шт.

21

A162860

QUADRANT

remote lockout, outer, 4th circuit

1шт.

22

A181781

LEVER

outer, 4th circuit

1шт.

23

A162961

PLUG

3/4 inch diameter head

1шт.

24

A162861

QUADRANT

remote lockout, inner, 3rd circuit

1шт.

25

A164976

SPRING

remote lockout

1шт.

26

A149683

PIN

clevis, spring, 3/16 inch

1шт.
