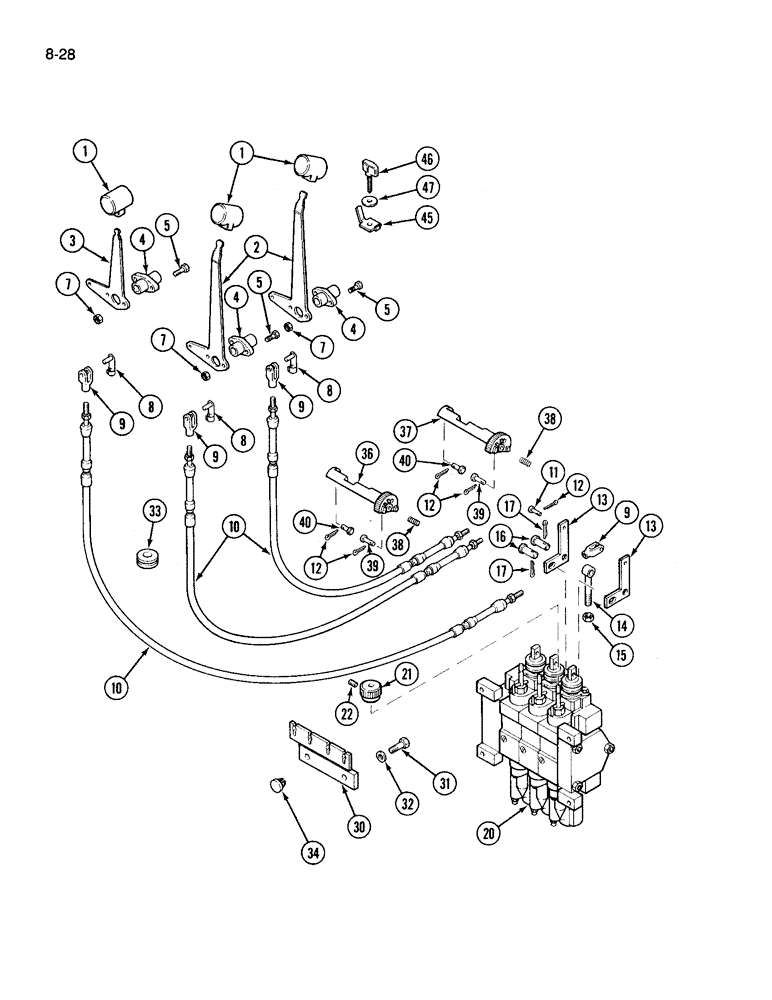

Запчасти Case IH 3594 (8-028) - REMOTE HYDRAULIC CONTROLS, THREE CIRCUIT REMOTE (08) - HYDRAULICS

1

A177438

KNOB

hand lever, black

3шт.

2

A181781

LEVER

remote, 1st and 2nd circuit

2шт.

3

A141392

LEVER

remote, 3rd circuit

1шт.

4

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING control lever

3шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

7

230-4214

LOCK NUT,1/4"-20, GA

NUT hex, self-locking, 1/4 inch NC

6шт.

8

A149683

PIN

clevis, spring, 3/16 inch

3шт.

9

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS adjustable, No. 10

6шт.

10

A177635

CABLE

control lever to valve, 57" long

3шт.

11

A67313

PIN

clevis

3шт.

12

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

9шт.

13

A145598

LEVER

remote valve bellcrank

6шт.

14

A145597

EYE

bellcrank pivot

3шт.

15

425-146

JAM NUT,3/8" - 16, Gr 5

hex jam, 3/8 inch NC

3шт.

16

141-54

CLEVIS PIN,3/8" x 1 1/16"

6шт.

17

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

20

REF

INSTRUCTION

VALVE remote, See Figure 8-044

1шт.

21

A160814

KNOB

flow control

3шт.

22

84-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW set, hex socket, No. 10 NF x 5/8 inch

3шт.

30

A145021

PLATE

mounting, remote cable

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

32

95-21044

WASHER,3/8"

flat, 7/16 x 1 x 5/64 inch

2шт.

33

A141389

GROMMET

cable

3шт.

34

A67295

PLUG

9/16 inch diameter head

3шт.

34

A162961

PLUG

3/4 inch diameter head

3шт.

36

A162860

QUADRANT

remote lockout, outer

1шт.

37

A162861

QUADRANT

remote lockout, inner

2шт.

38

A164976

SPRING

remote lockout

3шт.

39

A67313

PIN

clevis

3шт.

40

A167543

PIN,4.72mm OD x 19.99mm L

clevis

3шт.

A67602

KIT Lockout Stop, Order components, Includes Ref. 45, 46 and 47

1шт.

45

A176175

CLAMP

lever stop

1шт.

46

A162958

BUTTON

KNOB stop

1шт.

47

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.
