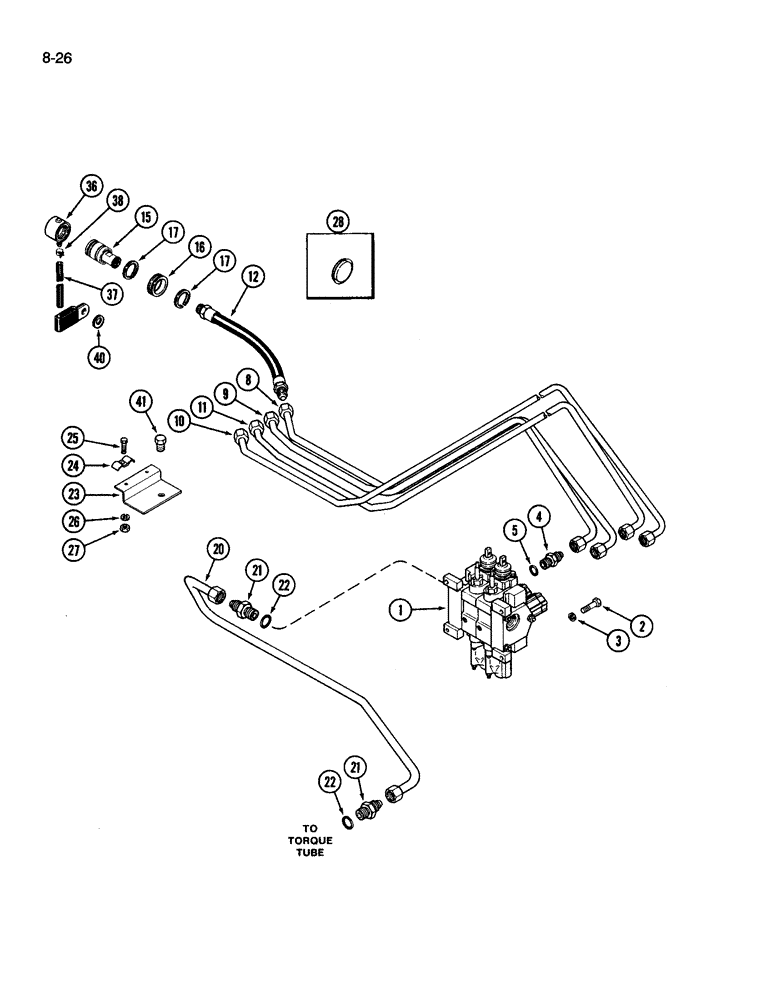

Запчасти Case IH 3594 (8-026) - REMOTE TUBES AND COUPLINGS, TWO CIRCUIT REMOTE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE remote, See Figure 8-042
1шт.
2
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
hex, 3/8 NC x 1-1/2 inch
3шт.
3
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
4
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes Ref. 5
4шт.
5
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
8
A181331
TUBE
valve to No. 1 coupling
1шт.
9
A181332
TUBE
valve to No. 2 coupling
1шт.
10
A181334
TUBE
valve to No. 3 coupling
1шт.
11
A181335
TUBE
valve to No. 4 coupling
1шт.
12
A181348
HYDRAULIC HOSE,12.7mm ID x 457.2mm L, SAE 100R2
12.70 mm ID x 457.20 mm, - Remote tubes to couplings SAE 100R2
4шт.
15
REF
INSTRUCTION
COUPLING remote hydraulic, female, See Figure 8-064
4шт.
16
A139805
RETAINER
coupling
4шт.
17
104-11150
SNAP RING,#150, 1.408", Ext
RING retaining
8шт.
20
A177714
TUBE ASSY.
TUBE remote, Serial Range: valve-sump
1шт.
21
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 22
2шт.
22
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
23
A185548
BRACKET
SUPPORT tube clamps, Replaces A141174
1шт.
24
A63323
CLAMP
tube
2шт.
25
413-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
hex, 5/16 NC x 1-1/4 inch
2шт.
26
92-11031
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
27
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC, grade 5
2шт.
28
353-590
PLUG,1 7/8"
button, 1-7/8 inch
4шт.
36
A177479
CAP
dust, coupling
4шт.
37
A180178
HOSE,7.90 mm ID x 914.40 mm, SAE J200
- drain 7.90 mm ID x 914.40 mm, SAE J200
4шт.
38
A180159
CLAMP,10.29mm - 12.32mm
hose
4шт.
39
A180154
CLAMP
hose
1шт.
40
495-21056
WASHER,1/2"
flat, 9/16 x 1-3/8 x 3/32 inch
1шт.
41
13-1012
BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd
1шт.
Выбрано товаров: 28
