Запчасти Case IH 3594 (8-024) - REMOTE HYDRAULIC CONTROLS, TWO CIRCUIT REMOTE (08) - HYDRAULICS

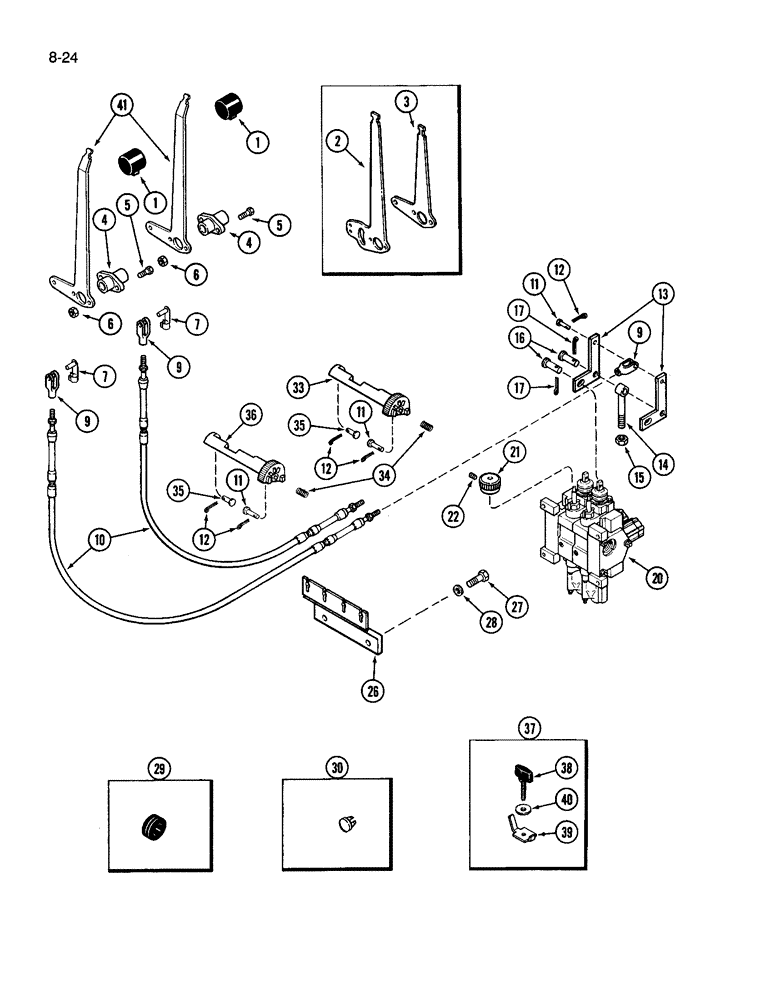

Схема запчастей Case IH 3594 - (8-024) - REMOTE HYDRAULIC CONTROLS, TWO CIRCUIT REMOTE (08) - HYDRAULICS
4
6
14
12
17
7
6
15
11
35
3
40
11
30
16
39
21
10
28
1
17
26
13
9
11
20
27
12
41
5
37
7
9
29
2
22
5
12
34
36
4
35
1
33
38
9

Артикул

Название

Примечание

Количество

1

A177438

KNOB

hand lever, black

2шт.

2

A162858

LEVER

outer, if equipped

1шт.

3

A141393

LEVER

inner, if equipped

1шт.

4

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING control lever

2шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT hex, self-locking, 1/4 inch NC

4шт.

7

A149683

PIN

clevis, spring, 3/16 inch

2шт.

9

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS adjustable, No. 10

4шт.

10

A177635

CABLE

control, Serial Range: lever-valve

2шт.

11

A67313

PIN

clevis

4шт.

12

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

6шт.

13

A145598

LEVER

remote valve bellcrank

4шт.

14

A145597

EYE

bellcrank pivot

2шт.

15

425-146

JAM NUT,3/8" - 16, Gr 5

hex jam, 3/8 inch NC

2шт.

16

141-54

CLEVIS PIN,3/8" x 1 1/16"

4шт.

17

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

20

REF

INSTRUCTION

VALVE remote, See Figure 8-042

1шт.

21

A160814

KNOB

flow control

2шт.

22

84-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW set, hex socket, No. 10 NF x 5/8 inch

2шт.

26

A145021

PLATE

mounting, remote cable

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

28

95-21044

WASHER,3/8"

flat, 7/16 x 1 x 5/64 inch

2шт.

29

A141389

GROMMET

cable, cab floor

1шт.

30

A67295

PLUG

9/16 inch diameter head

1шт.

30

A162961

PLUG

3/4 inch diameter head

1шт.

33

A162861

QUADRANT

remote lockout, inner

1шт.

34

A164976

SPRING

remote lockout

2шт.

35

A167543

PIN,4.72mm OD x 19.99mm L

clevis

2шт.

36

A162860

QUADRANT

remote lockout, outer

1шт.

37

A67602

KIT Stop, remote lever lockout, Order components, Includes Ref. 38, 39 and 40

1шт.

38

A162958

BUTTON

KNOB stop

1шт.

39

A176175

CLAMP

lever stop

1шт.

40

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

41

A181781

LEVER

remote, if equipped

2шт.

Выбрано товаров: 34
