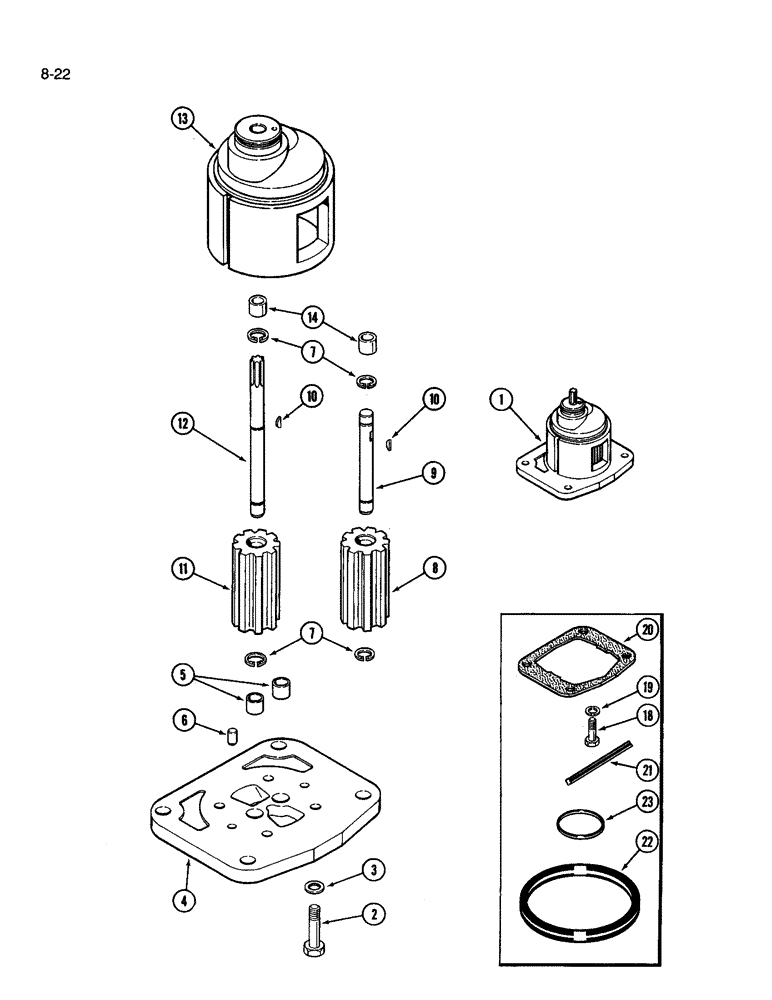

Запчасти Case IH 3594 (8-022) - CHARGING PUMP (08) - HYDRAULICS

1

A141298

PUMP

CHARGING PUMP ASSEMBLY hydraulic oil, Includes Ref. 2 - 14

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

A63335

WASHER

seal, Serial Range: cover-body

4шт.

4

A141296

COVER

PUMP COVER ASSEMBLY, Includes Ref. 5

1шт.

5

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

pump cover

2шт.

6

A11528

PIN,7.81mm OD x 14.29mm L

dowel, Serial Range: cover-body

2шт.

7

603540C1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

4шт.

8

A64096

GEAR

driven

1шт.

9

A64097

SHAFT

driven gear

1шт.

10

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

2шт.

11

A64096

GEAR

drive

1шт.

12

A64099

SHAFT

drive gear

1шт.

13

A64093

HOUSING

PUMP BODY ASSEMBLY, Includes Ref. 14

1шт.

14

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

pump body

2шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20

1981256C1

GASKET

pump to torque tube, Replaces A141326

1шт.

21

A63336

OIL SEAL

pump to torque tube

2шт.

22

A63337

OIL SEAL

pump to torque tube

1шт.

23

238-5130

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1шт.
