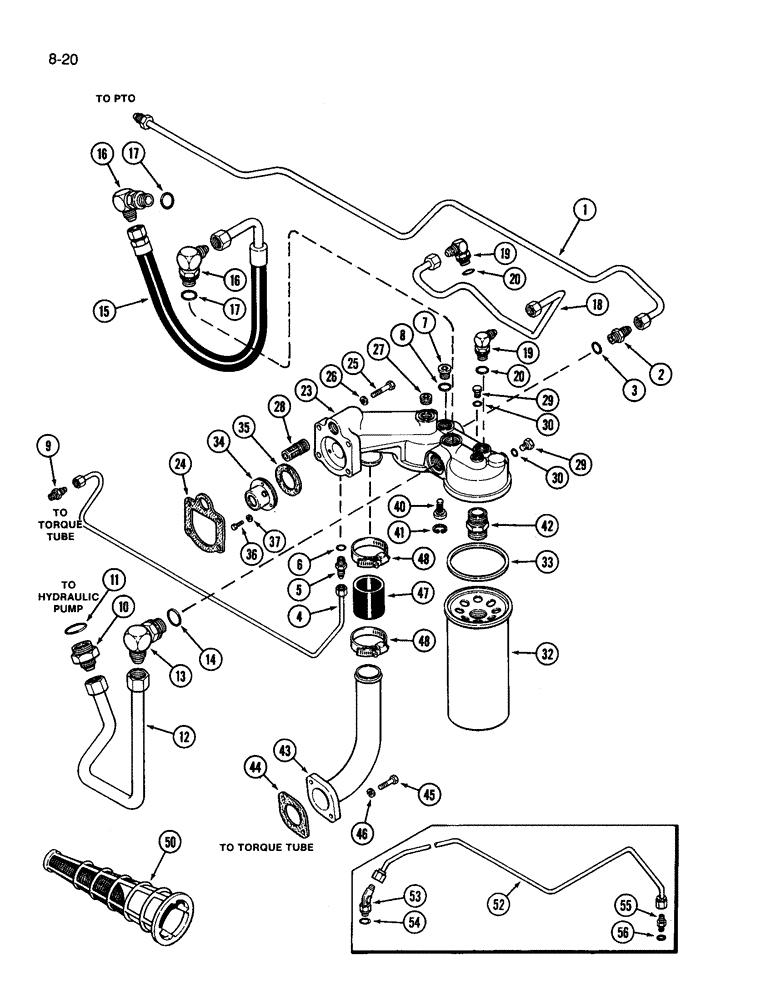

Запчасти Case IH 3594 (8-020) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

1

A177647

TUBE

PTO lubrication, front

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

A177718

TUBE

C1 clutch lubrication

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 6

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 8 Hex Soc, 3/4"-16 ORB

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER straight, 9/16-18 flare x 1/4 inch PT

1шт.

10

A147128

CONNECTOR, ELEC

UNION straight, 1 inch tube, 1-5/16 NF x 1-7/8 inch NF, Includes Ref. 11

1шт.

11

237-6028

O-RING,1.364" ID x 1.504" OD x 0.07"

28-1, 90 Duro, 2.09" ID x .116" Thk

1шт.

12

A177472

TUBE ASSY.

TUBE, Serial Range: filter-pump

1шт.

13

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Incl. Ref. 14 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

15

A176974

HOSE

pump suction

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 17

2шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

A177636

TUBE ASSY.

TUBE priority valve

1шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, 3/4-16 inch flare x adj O-ring boss, Includes Ref. 20

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

A181428

HOUSING

filter

1шт.

24

A181430

GASKET

filter housing

1шт.

25

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

26

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

27

221-844

PLUG,Hex Soc, 1/2"-14

hex socket, 1/2 inch PT

1шт.

28

A181374

VALVE, CHECK

VALVE check

1шт.

29

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 30 Hex Hd, 7/16"-20 ORB

2шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT Filter Element, Includes Ref. 32

1шт.

32

NSS

NOT SOLD SEPARAT

ELEMENT filter

2шт.

33

123010C2

GASKET

filter

2шт.

34

A152794

VALVE

filter pressure regulator

1шт.

35

A176475

GASKET

regulator valve

1шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

37

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

3шт.

40

A177540

VALVE

filter bypass

2шт.

41

A177482

SNAP RING

RING retaining

2шт.

42

A176321

CONNECTOR, ELEC

ADAPTOR filter mounting

2шт.

43

A177619

TUBE ASSY.

TUBE filter inlet

1шт.

44

A176323

GASKET

inlet tube

1шт.

45

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

46

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

47

A177620

HOSE,50.80 mm ID x 63.50 mm, SAE 30R2, SAE J30

suction 50.80 mm ID x 63.50 mm, SAE 30R2, SAE J30

1шт.

48

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj #36, 1.81/2.75 Type F Worm

2шт.

50

A139052

FILTER

inlet

1шт.

52

A177646

TUBE

dual range lubrication, 24 speed transmission

1шт.

53

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj O-ring boss, Includes Ref. 54

1шт.

54

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

55

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes Ref. 56

1шт.

56

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
