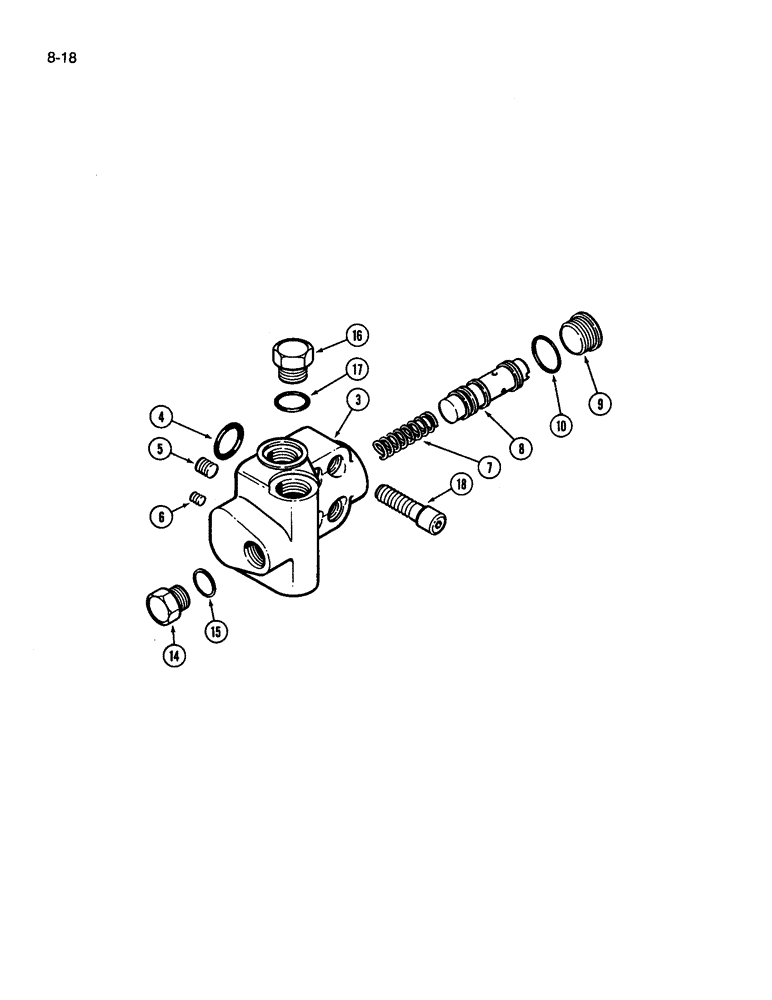

Запчасти Case IH 3594 (8-018) - GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS

A185363

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY

1шт.

A185363R

REMAN-HYD PUMP

3594 (1/85-12/87)

1шт.

A185363C

CORE-HYDRAULIC PUMP

Return Number

1шт.

A49791

VALVE

priority flow control, Includes Ref. 3 - 18

1шт.

3

NSS

NOT SOLD SEPARAT

BODY control valve

1шт.

4

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

1шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

hex socket, 1/8 inch PT

1шт.

6

221-850

PLUG,Hex Soc, 1/16"-27

hex socket, 1/16 inch PT

1шт.

7

A47648

SPRING

spool

1шт.

8

A47647

SPOOL

valve

1шт.

9

86625138

PLUG,7/18" - 14

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

214389

PLUG,3/4" - 16 ORB

Includes Ref. 15 Hex Hd, 3/4"-16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

A47652

PLUG

hex

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

v

1шт.

18

861-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW, Hex Soc Hd, M8 x 35, 12.9

4шт.
