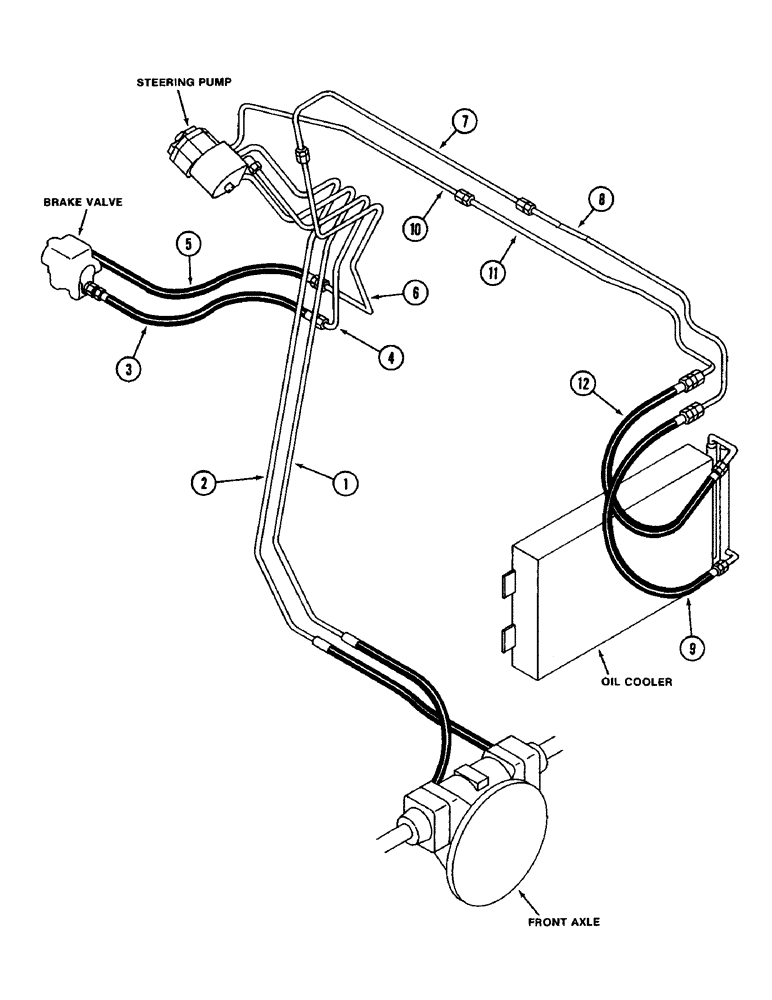

Запчасти Case IH 3594 (1-16) - PICTORIAL INDEX, STEERING HYDRAULICS (00) - PICTORIAL INDEX
7
8
1
9
5
4
2
3
12
11
6
10
№
Артикул
Название
Примечание
Количество
1
Right steering pump to axle tube, Page 5-7
1шт.
2
Left steer pump to axle tube, Page 5-7
1шт.
3
Brake valve to steering pump hose, Page 5-7
1шт.
4
Brake valve to steering pump tube, Page 5-7
1шт.
5
Oil cooler return hose, Page 5-9
1шт.
6
Oil cooler return tube, Page 5-9
1шт.
7
Oil cooler center outlet tube, Page 5-9
1шт.
8
Oil cooler front outlet tube, Page 5-9
1шт.
9
Oil coolter outlet hose, Page 5-9
1шт.
10
Steering pump to oil cooler inlet tube, Page 5-9
1шт.
11
Oil cooler front inlet tube, Page 5-9
1шт.
12
Oil cooler inlet hose, Page 5-9
1шт.
Выбрано товаров: 12
