Запчасти Case IH 3594 (8-014) - GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS

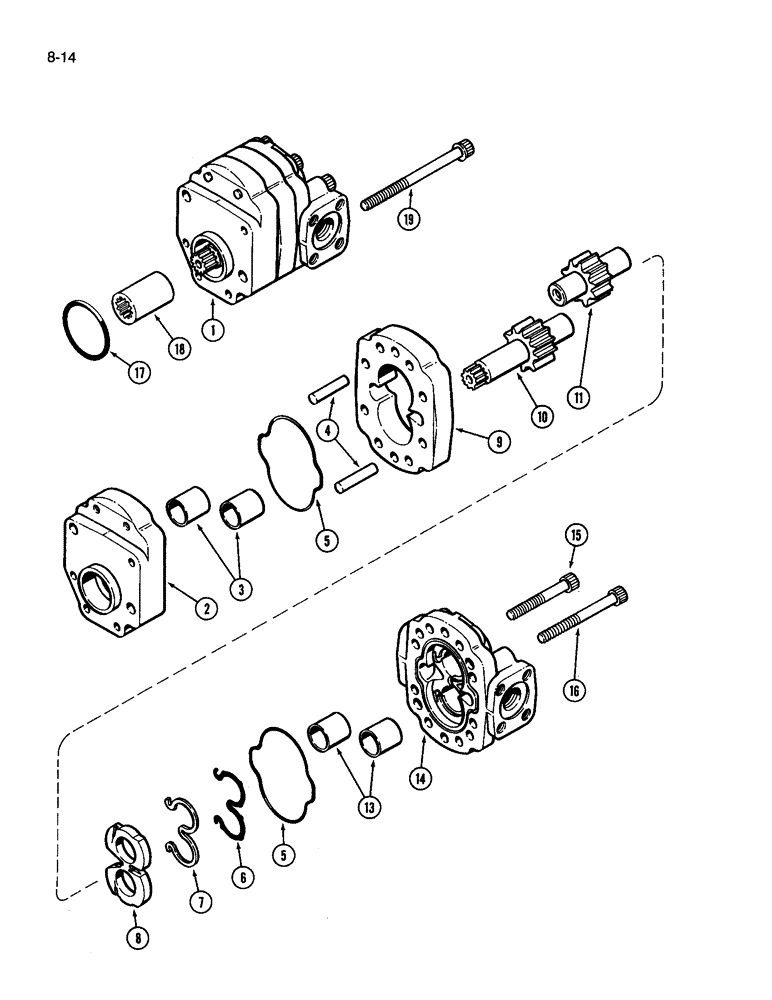

Схема запчастей Case IH 3594 - (8-014) - GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS
8
9
4
2
17
5
19
1
5
14
15
10
13
7
3
18
6
11
16

Артикул

Название

Примечание

Количество

A185363

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY, Includes Ref. 1 - 16

1шт.

A185363R

REMAN-HYD PUMP

3594 (1/85-12/87)

1шт.

A185363C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

A49792

PUMP

GEAR PUMP ASSEMBLY, Includes Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

COVER front

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING front cover

2шт.

4

NSS

NOT SOLD SEPARAT

DOWEL body locating

2шт.

5

NSS

NOT SOLD SEPARAT

O-RING cover

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL rubber

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL teflon

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE wear

1шт.

9

NSS

NOT SOLD SEPARAT

BODY pump

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR drive

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR idler

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING cover, rear

2шт.

14

NSS

NOT SOLD SEPARAT

COVER, rear

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW short

6шт.

16

NSS

NOT SOLD SEPARAT

SCREW long

4шт.

A47643

SEAL

KIT Service, gear pump seals

1шт.

17

F98069

O-RING

sealing, In kit A49833

1шт.

18

A47312

COUPLING, BREAK AWAY

COUPLING drive, gear, Serial Range: pump-piston

1шт.

19

A47412

SCREW,M8 x 100mm

metric, gear, Serial Range: pump-piston

2шт.
