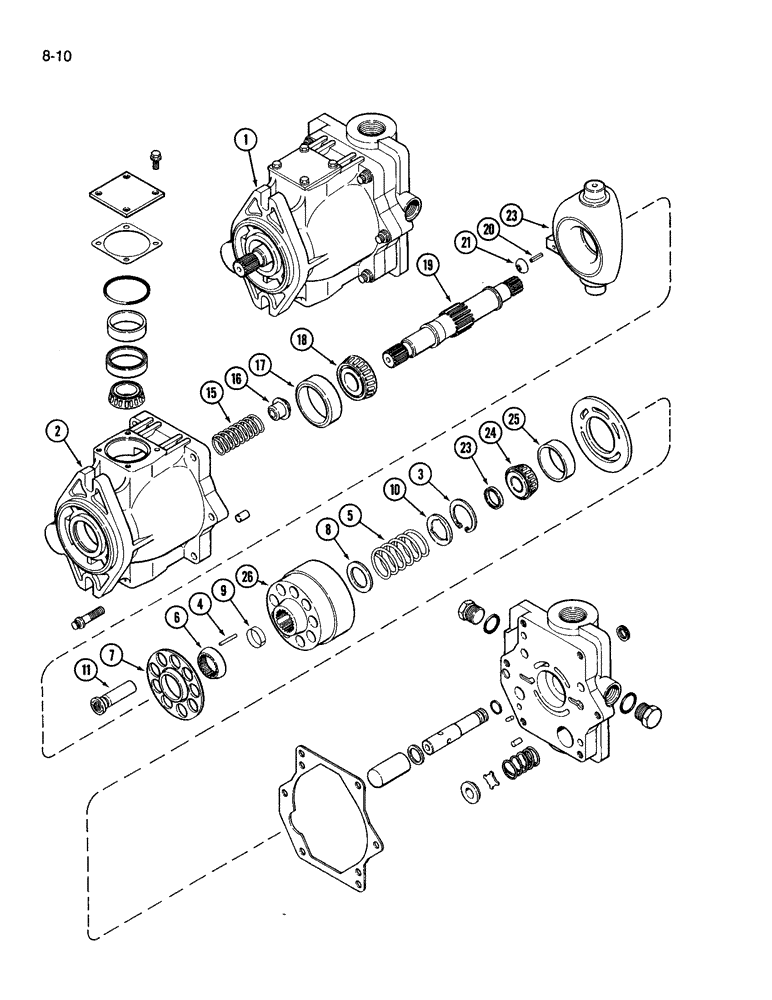

Запчасти Case IH 3594 (8-010) - GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A185363
PUMP, HYDRAULIC
HYDRAULIC PUMP ASSEMBLY , Includes Ref. 2 - 26
1шт.
A185363R
REMAN-HYD PUMP
3594 (1/85-12/87)
1шт.
A185363C
CORE-HYDRAULIC PUMP
Return Number
1шт.
2
A47278
HOUSING
pump, piston
1шт.
1263239C1
REPAIR KIT
KIT Rotating Group, Includes Ref. 3 - 10
1шт.
3
100-21162
SNAP RING,1.625", Int, #162
Ring, Snap, 1.625", Int, #162
1шт.
4
A47296
PIN
block
3шт.
5
A47298
SPRING
block
1шт.
6
A47293
WASHER
spherical
1шт.
7
A47292
PLATE
shoe
1шт.
8
A47299
WASHER
spring
1шт.
9
A47297
SNAP RING,7.11mm Thk, Int
pin
1шт.
10
A47300
SPRING WASHER
WASHER spring
1шт.
11
A47334
PACKAGE
KIT Piston, Includes 9 pistons and shoes
1шт.
15
A47281
SPRING
piston pump housing
1шт.
16
A47282
PLUG
SEAT spring
1шт.
17
642954R1
BEARING ASSY,1" ID x 2.441" OD x 0.8125"
CUP bearing
1шт.
18
594446R1
ROLLER BEARING
CONE bearing
1шт.
19
A47289
SHAFT
drive, piston pump
1шт.
20
138-88
LOCK PIN,3/16" x 1/2", Slotted
PIN, 3/16" x 1/2", Slotted
1шт.
21
A47283
SEAT
spherical
1шт.
22
A47284
YOKE
swing
1шт.
145582C1
KIT
Spacer, rear bearing, Includes Ref. 23
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER bearing, 0.139 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER bearing, 0.142 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER bearing, 0.145 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER bearing, 0.148 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER bearing, 0.151 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER bearing, 0.154 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER bearing, 0.157 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER bearing, 0.160 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER bearing, 0.163 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER bearing, 0.166 inch
1шт.
23
NSS
NOT SOLD SEPARAT
SPACER bearing, 0.169 inch
1шт.
24
371882R91
ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W
1шт.
25
371883R1
BEARING CUP
1шт.
26
A47295
BLOCK
cylinder
1шт.
Выбрано товаров: 37
