Запчасти Case IH 3594 (8-008) - GEAR AND PISTON PUMP (08) - HYDRAULICS

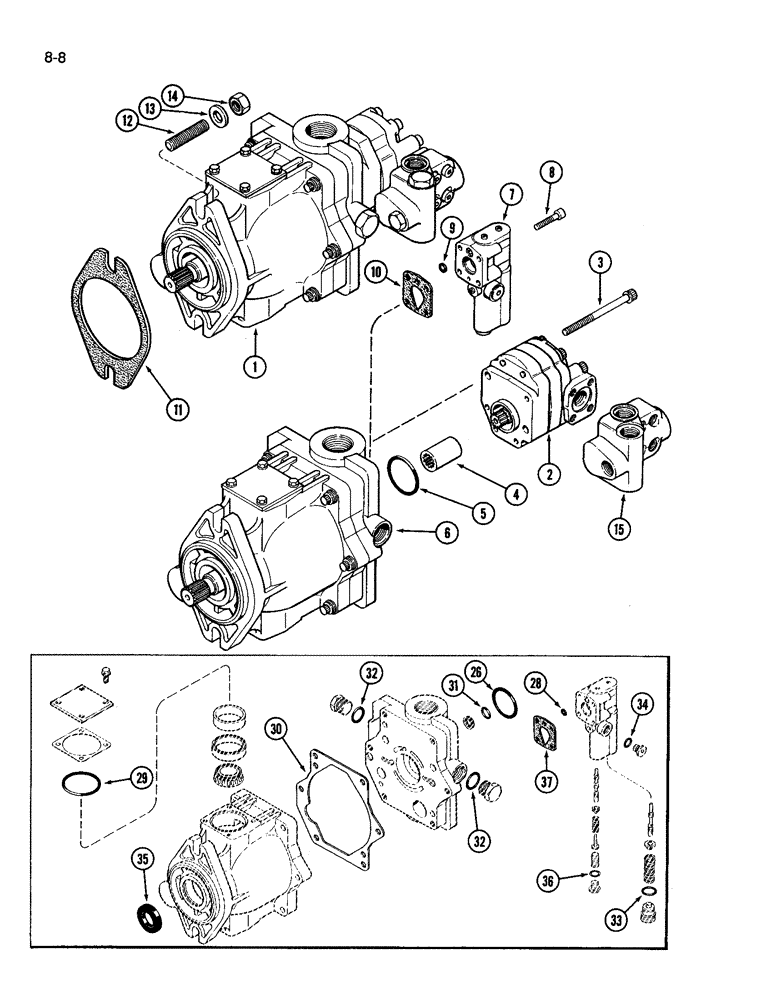

Схема запчастей Case IH 3594 - (8-008) - GEAR AND PISTON PUMP (08) - HYDRAULICS
12
30
6
33
26
1
7
3
29
37
36
4
32
32
13
5
31
15
35
28
11
34
9
2
8
10
14

Артикул

Название

Примечание

Количество

1

A185363

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSEMBLY gear and piston, Includes Ref. 2 - 10

1шт.

A185363R

REMAN-HYD PUMP

3594 (1/85-12/87)

1шт.

A185363C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

REF

INSTRUCTION

GEAR SECTION PUMP ASSEMBLY, See Figure 8-014

1шт.

3

A47412

SCREW,M8 x 100mm

metric

2шт.

4

A47312

COUPLING, BREAK AWAY

COUPLING drive

1шт.

5

F98069

O-RING

sealing, In kit A49833

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON SECTION PUMP ASSEMBLY, See Figure 8-010 and 8-012

1шт.

7

REF

INSTRUCTION

PUMP COMPENSATOR ASSEMBLY, See Figure 8-016

1шт.

8

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW, Hex Soc Hd, #10-24 x 1 1/4"

4шт.

9

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

(in Kit A49833) -011, 90 Duro, .301" ID x .070" Thk

1шт.

10

A49436

GASKET

compensator mounting, In kit A49833

1шт.

11

1342787C1

GASKET

pump mounting, Replaces A141828, gear and piston

1шт.

12

A160002

STUD

mounting, gear and piston pump

2шт.

13

A75865

WASHER

hardened, gear and piston pump

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Gear and piston pump 1/2"-13, G5

2шт.

15

REF

INSTRUCTION

VALVE priority flow control, See Figure 8-018, gear and piston pump

1шт.

A49833

SEAL

KIT Pump Repair, Order components, Includes Ref. 26 - 37

1шт.

26

F98069

O-RING

gear, Serial Range: pump-piston

1шт.

27

A49436

GASKET

compensator, not used on this pump

1шт.

28

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

29

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

30

A47280

GASKET,0.53mm Thk

housing

1шт.

31

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

33

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

35

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

oil, not used on this pump

1шт.

36

A49435

O-RING

sensing plug

1шт.

37

A49436

GASKET

compensator mounting

1шт.

Выбрано товаров: 30
