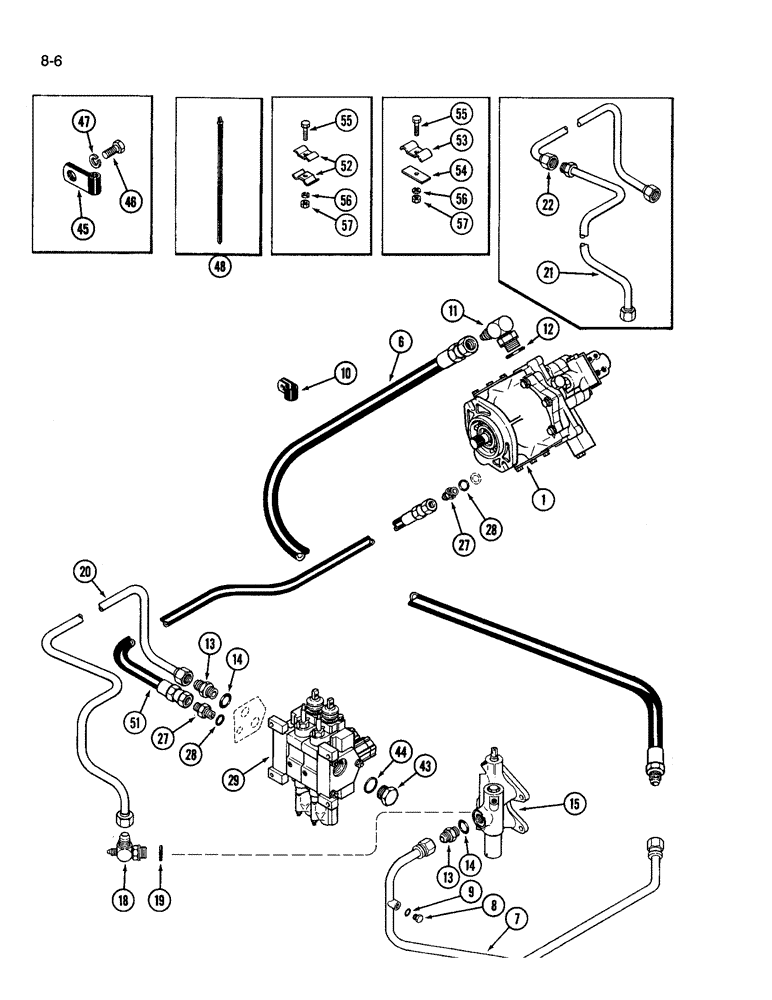

Запчасти Case IH 3594 (8-006) - HYDRAULICS, GEAR, PISTON PUMP AND HYDRAULIC LINES, WITHOUT HITCH (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP gear and piston, See Figure 8-008

1шт.

6

D42600

HOSE

regulator valve

1шт.

7

A181861

TUBE

pump to regulator valve

1шт.

8

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 9 Hex Hd, 7/16"-20 ORB

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

T50103

CLAMP

tube

1шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring, Includes Ref. 12

1шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 ID x 1/64 inch

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

REF

INSTRUCTION

VALVE PTO regulator, See Figure 6-082 and 6-084

1шт.

18

218-5578

TEE,9/19/16"-18, 37 Degree x 1 1/16"-12, O-Ring Run

1-1/16-12 flare branch x adj O-ring x 9/16-18 inch flare, Includes Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

REF

INSTRUCTION

TUBE regulator valve, Order Ref. 21 and 22

1шт.

21

A162498

TUBE

tee to, service only

1шт.

22

A162499

TUBE

to remote valve, service only

1шт.

27

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes Ref. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

29

REF

INSTRUCTION

VALVE remote, See Figure 8-042 and 8-044

1шт.

43

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes Ref. 44 Hex Hd, 1 1/16"-12 ORB

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

45

49839

CLAMP

tube

2шт.

46

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

47

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

51

A177471

HOSE,6.35 mm ID x 991.00 mm, SAE 100R1

load sensing 6.35 mm ID x 991.00 mm, SAE 100R1

1шт.

52

49885

CLAMP

tube

4шт.

53

A57740

CLAMP

tube

2шт.

54

A60864

PLATE

tube clamp

2шт.

55

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

56

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

57

425-105

NUT,5/16"-18, G5

4шт.
