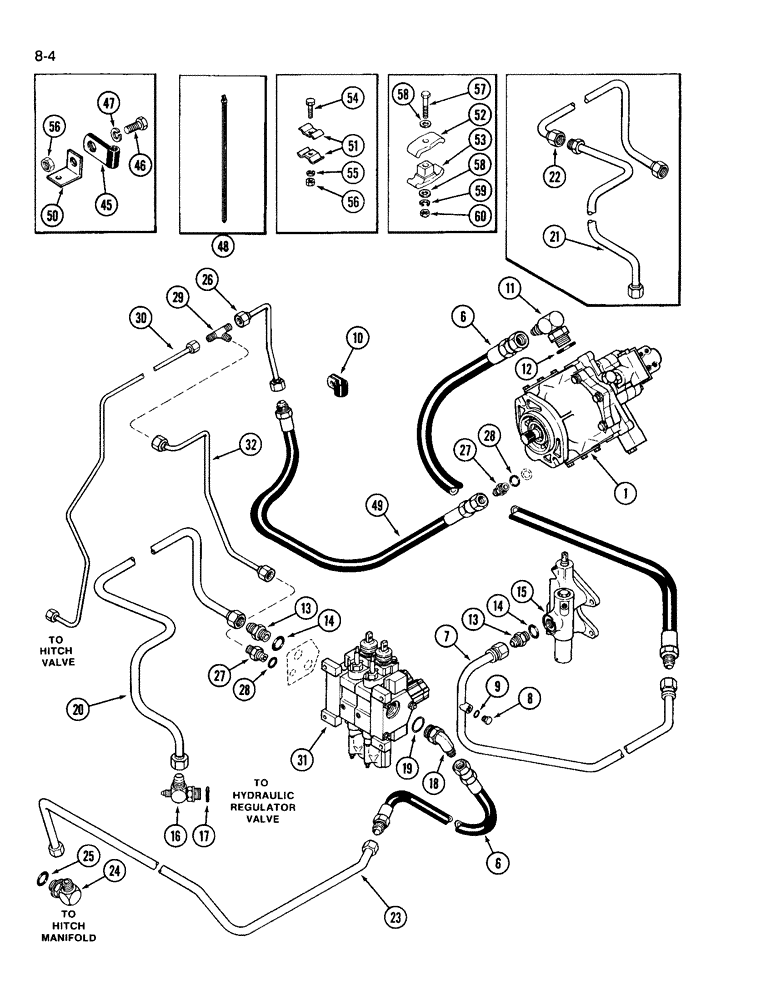

Запчасти Case IH 3594 (8-004) - HYDRAULICS, GEAR, PISTON PUMP AND HYDRAULIC LINES, WITH HITCH (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP gear and piston, See Figure 8-008

1шт.

6

D42600

HOSE

hydraulic

2шт.

7

A181861

TUBE

pump to regulator valve

1шт.

8

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 9 Hex Hd, 7/16"-20 ORB

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

T50103

CLAMP

tube

1шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring, Includes Ref. 12

1шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 ID x 1/64 inch

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

REF

INSTRUCTION

VALVE PTO regulator, See Figure 6-082 and 6-084

1шт.

16

218-5578

TEE,9/19/16"-18, 37 Degree x 1 1/16"-12, O-Ring Run

1-1/16-12 flare branch x adj O-ring x 9/16-18 inch fl, Includes Ref. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

REF

INSTRUCTION

TUBE remote valve, Order Ref. 21 and 22

1шт.

21

A162498

TUBE

tee, service only

1шт.

23

A162499

TUBE

to remote valve, service only

1шт.

23

A185532

TUBE

remote to hitch, Replaces A181665

1шт.

24

A181670

ELBOW,90 Degree, 1 1/16"-12 37 Degree x 7/8"-14, O-Ring

90 degree, 7/8 NF x 1-1/16 inch NF, Includes Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

A185066

TUBE

pump pilot to tee, Replaces A180107

1шт.

27

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes Ref. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

29

218-593

TEE,9/16"-18, 37 Degree

9/16-18 inch flare

1шт.

30

NSS

NOT SOLD SEPARAT

tee to hitch manifold, pilot

1шт.

31

REF

INSTRUCTION

VALVE remote, See Figure 8-042 and 8-044

1шт.

32

A180108

TUBE ASSY.

TUBE remote valve, Serial Range: pilot-tee

1шт.

45

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

tube

2шт.

46

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

47

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

49

H171017

HYDRAULIC HOSE,6.35 mm ID x 1016.00 mm, SAE 100R1

Pump Pilot 6.35 mm ID x 1016.00 mm, SAE 100R1

1шт.

50

A162527

BRACKET

clamp

1шт.

51

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

tube

4шт.

52

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

tube, cap

2шт.

53

D124301

CLAMP,3/4" ID

tube

2шт.

54

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

55

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

56

425-105

NUT,5/16"-18, G5

3шт.

57

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

58

95-21044

WASHER,3/8"

flat, 7/16 x 1 x 5/64 inch

4шт.

59

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

60

425-106

NUT,3/8"-16, Cl 5

2шт.
