(8-002) - PTO HYDRAULICS

Запчасти Case IH 3594 (8-002) - PTO HYDRAULICS (08) - HYDRAULICS

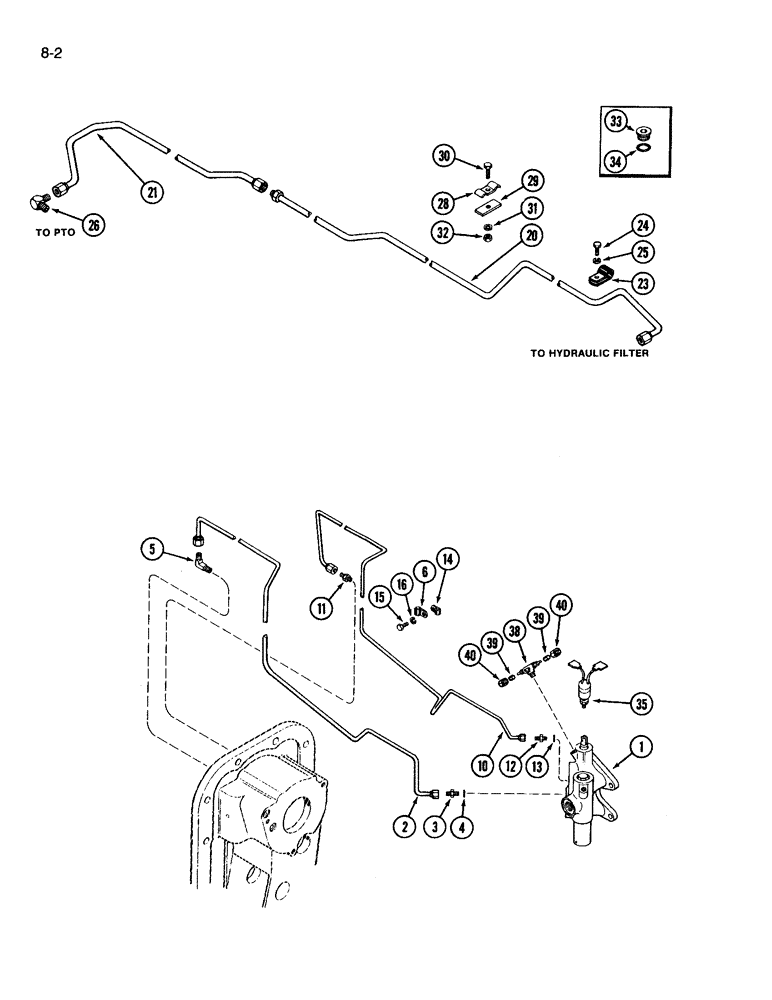

Схема запчастей Case IH 3594 - (8-002) - PTO HYDRAULICS (08) - HYDRAULICS
16
40
39
4
40
10
6
38
15
1
11
34
23
29
20
5
21
2
25
32
24
12
13
28
26
31
33
3
39
35
30
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PTO AND CLUTCH REGULATING VALVE ASSEMBLY, See Figure 6-082 and 6-084

1шт.

2

A169098

TUBE

valve to PTO clutch

1шт.

3

G109024

CONNECTOR, ELEC

PTO VALVE CONNECTOR ASSEMBLY, detent, Includes Ref. 4

1шт.

5

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

6

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

tube

1шт.

10

A169099

TUBE

valve to PTO brake

1шт.

11

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER straight, 7/16-20 flare x 1/8 inch PT

1шт.

12

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 13

1шт.

14

A20541

CLIP

CLAMP tube

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

16

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

A177647

TUBE

PTO lubrication, front

1шт.

21

A169859

TUBE

PTO lubrication, rear

1шт.

23

49836

CLAMP

tube

1шт.

24

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

28

A139065

CLAMP

tube

1шт.

29

A60864

PLATE

tube clamp

1шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

1шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

33

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 34 Hex Soc, 9/16"-18 ORB

1шт.

35

A162422

SWITCH

transmission oil pressure

1шт.

38

222-2681

TEE,17/32"-24 x 1/8" NPT Br

ASSEMBLY, 3/8 tube 7/16-24 x 1/4 inch PT, Includes Ref. 39 and 40

1шт.

39

222-2610

SLEEVE

flanged, 3/8 inch tube OD

2шт.

40

222-2600

NUT

NUT hex, 3/8 tube OD x 7/16-24 inch

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
