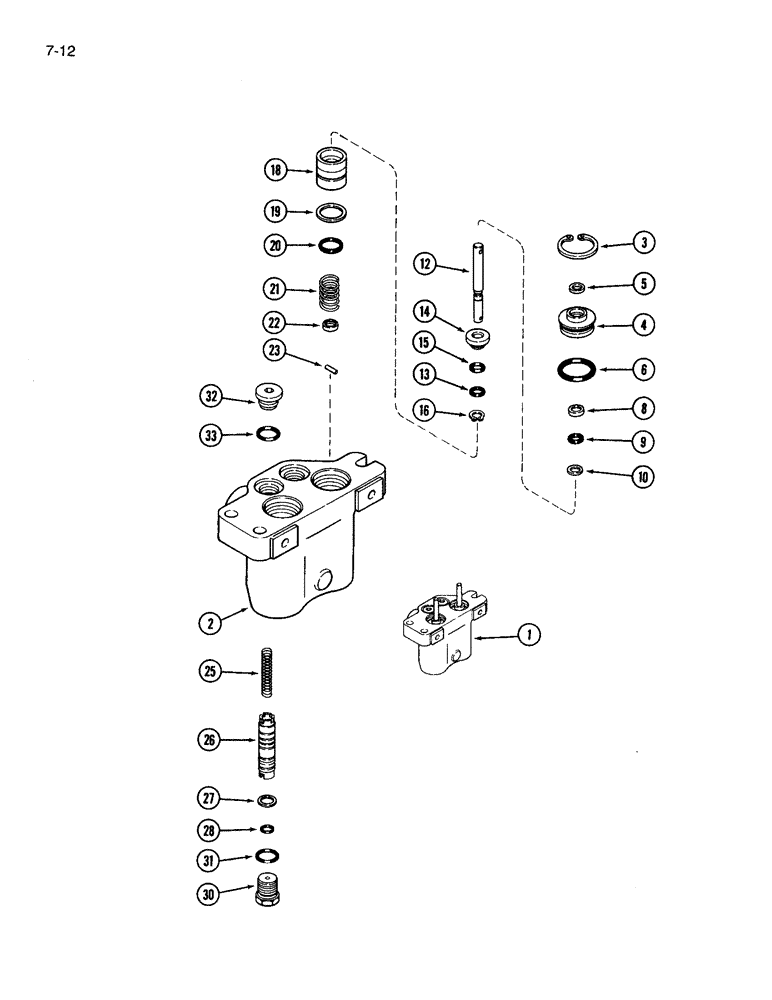

Запчасти Case IH 3594 (7-012) - MASTER POWER BRAKE VALVE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
G105024
VALVE
MASTER POWER BRAKE VALVE ASSEMBLY, Includes Ref. 2 - 23
1шт.
2
NSS
NOT SOLD SEPARAT
BODY brake valve
1шт.
3
A32181
SNAP RING,1.375", Int, #137
Ring, Snap, 1.375", Int, #137
2шт.
G101064
PISTON
VALVE PISTON ASSEMBLY, Order components
2шт.
G101063
STOP
MASTER CYLINDER STOP ASSEMBLY, Includes Ref. 4 - 10
1шт.
4
NSS
NOT SOLD SEPARAT
STOP piston
1шт.
5
G101066
SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk
oil
1шт.
8
G101070
RING
backup
1шт.
9
238-5012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
-012, 70 Duro, .364" ID x .070" Thk
1шт.
10
G101065
SEAL RETAINER
RETAINER seal
1шт.
12
G101059
PIN,9.53mm OD x 110.62mm L
piston
1шт.
13
238-5008
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
-008, 70 Duro, .176" ID x .070" Thk
1шт.
14
G101060
WASHER
seal
1шт.
15
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
16
G10659
SNAP RING,#31, Ext
Ring, Snap, #31, Ext
1шт.
G101062
PISTON
MASTER CYLINDER PISTON ASSEMBLY , Includes Ref. 18, 19 and 20
1шт.
18
NSS
NOT SOLD SEPARAT
PISTON brake valve
1шт.
19
G101302
RING
SEAL ring, piston
1шт.
20
238-5019
O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro
-019, 70 Duro, .801" ID x .070" Thk
1шт.
21
G101303
SPRING
piston
1шт.
22
G101067
RETAINER
spring
1шт.
23
G101304
PIN
trtainer
1шт.
25
A59950
SPRING
booster spool
2шт.
G102283
SPOOL
BOOSTER SPOOL ASSEMBLY , Includes Ref. 26, 27 and 28
2шт.
26
NSS
NOT SOLD SEPARAT
SPOOL booster
1шт.
27
A59951
RING
backup
1шт.
28
238-5011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro
-011, 70 Duro, .301" ID x .070" Thk
1шт.
30
A59948
PLUG
reducer
2шт.
31
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
2шт.
32
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Incl Ref 33 Hex Soc, 3/4"-16 ORB
2шт.
33
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
Выбрано товаров: 32
