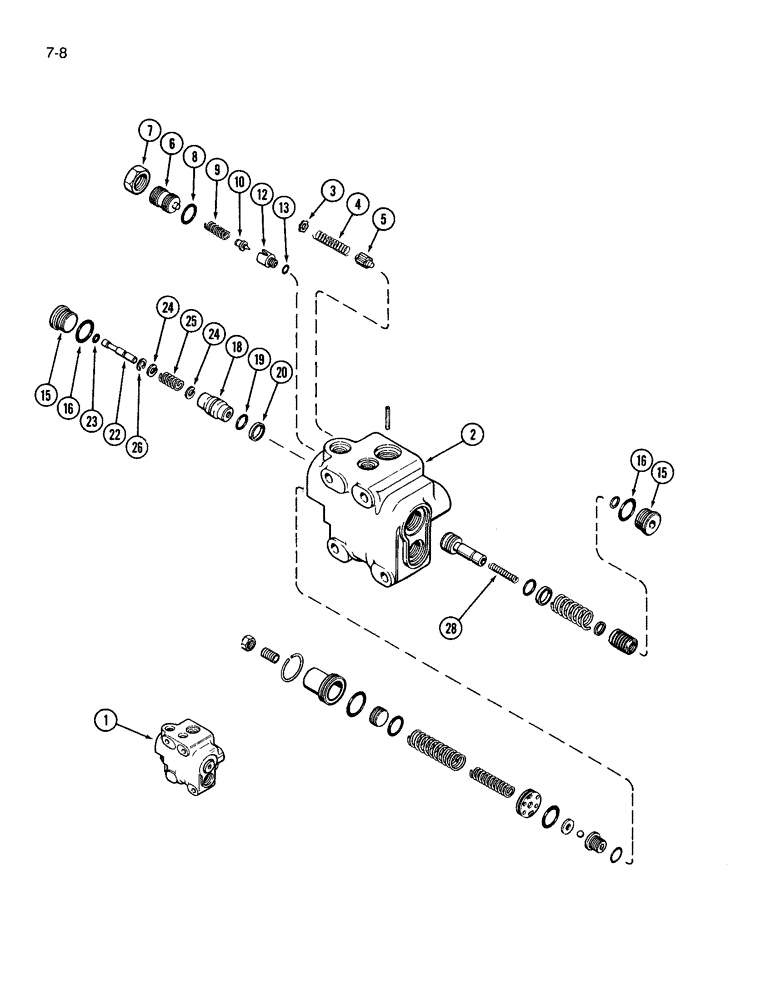

Запчасти Case IH 3594 (7-008) - BRAKE VALVE (07) - BRAKES

1

G105128

VALVE, BRAKE

POWER BRAKE VALVE ASSEMBLY, Includes Ref. 2 - 28

1шт.

2

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

3

A58439

RETAINER

RING retaining

1шт.

4

G101155

SPRING

low pressure sump

1шт.

5

G101106

VALVE POPPET

1шт.

6

G104393

PLUG

locking relief valve

1шт.

7

218-1278

BHD LOCK NUT,Blkhd, 3/4"-16

NUT small hex, lock, 3/4 inch NF

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

G104395

SPRING

pilot relief

1шт.

10

G104392

SPOOL

POPPET relief valve

1шт.

12

G104394

PLUG

SEAT poppet

1шт.

13

G103122

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

poppet seat 2-1, .239" ID x .064" Thk

1шт.

15

86625138

PLUG,7/18" - 14

Includes Ref. 16 Hex Soc, 7/8"-14 ORB

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

G105031

PISTON

pressure equilizer

1шт.

19

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

20

G100797

RING

sealing

1шт.

22

G105032

PISTON PIN

PIN equalizer

1шт.

23

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

24

G100941

WASHER

RING spring retaining

2шт.

25

G105033

SPRING

pressure

1шт.

26

A59947

SNAP RING,0.453", Int, #45

Ring, Snap, 0.453", Int, #45

1шт.

28

G100794

SPRING

piston retaining

1шт.
