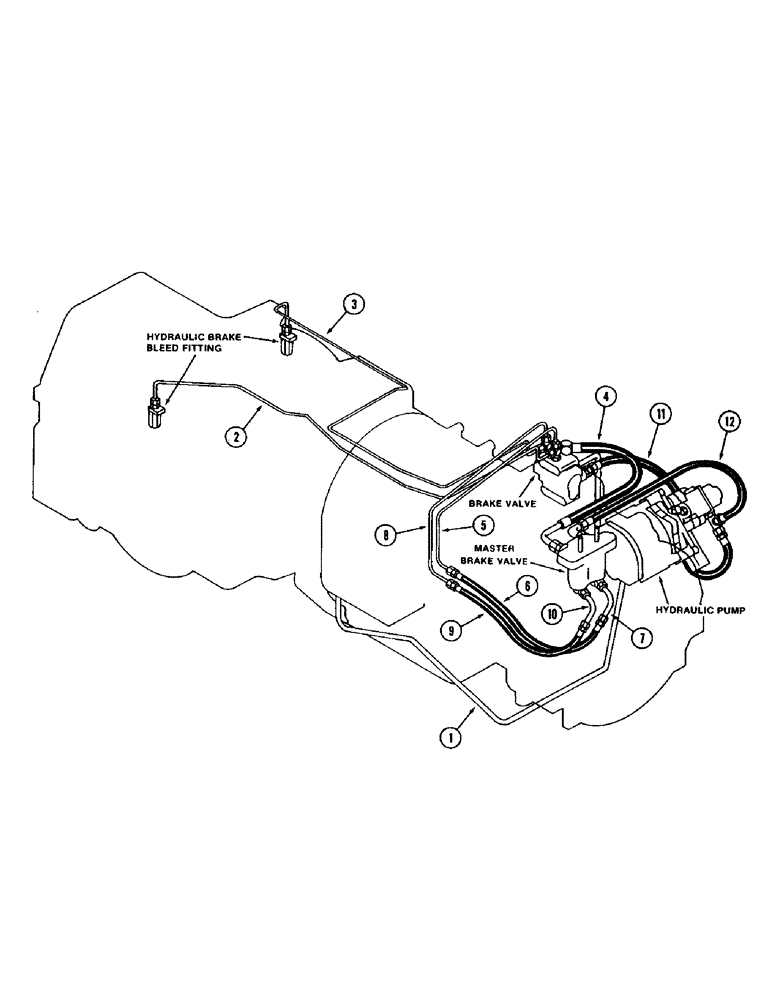

Запчасти Case IH 3594 (1-14) - PICTORIAL INDEX, BRAKE HYDRAULICS (00) - PICTORIAL INDEX

1

Brake valve to sump tube, Page 5-9

1шт.

2

Right rear brake tube, Page 7-5

1шт.

3

Left rear brake tube, Page 7-5

1шт.

4

Brake valve to master brake valve hose, Page 7-5

1шт.

5

Right front brake tube, Page 7-5

1шт.

6

Right front brake hose, Page 7-5

1шт.

7

Right front brake stub tube, Page 7-5

1шт.

8

Left front brake tube, Page 7-5

1шт.

9

Left front brake hose, Page 7-5

1шт.

10

Left front brake stub tube, Page 7-5

1шт.

11

Brake valve to pump hose, Page 7-5

1шт.

12

Master brake valve to pump hose, Page 7-5

1шт.
