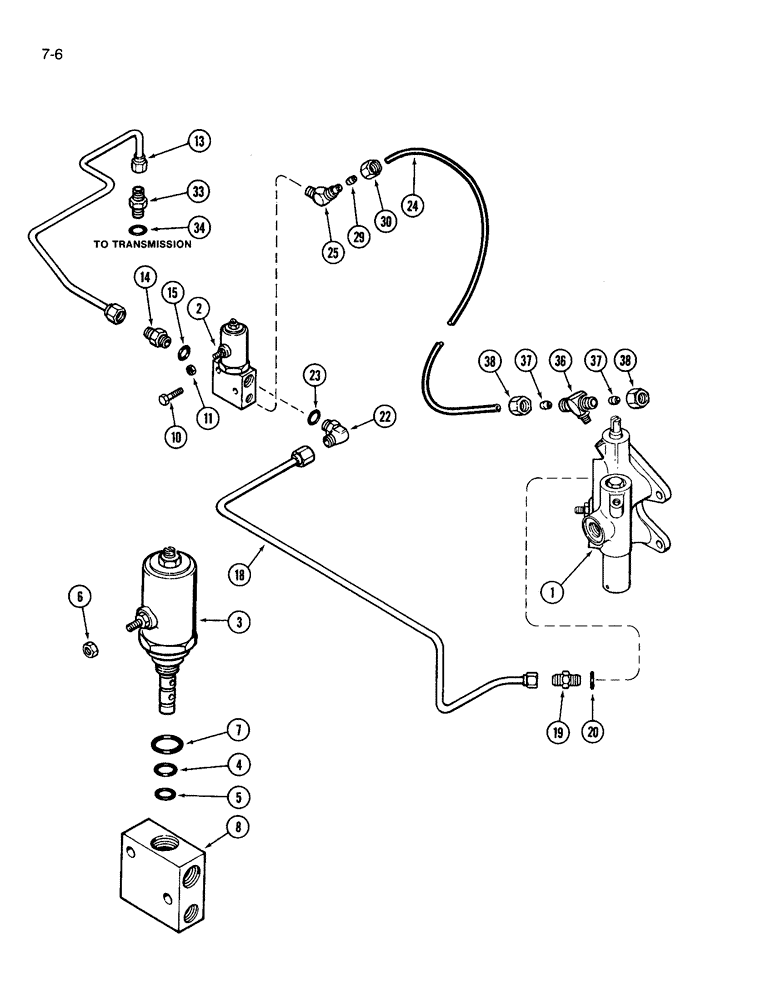

Запчасти Case IH 3594 (7-006) - DIFFERENTIAL LOCK CIRCUITRY (07) - BRAKES

1

REF

INSTRUCTION

PTO CONTROL VALVE ASSEMBLY, See Figure 6-082 and 6-084

1шт.

2

A176599

VALVE

SOLENOID VALVE ASSEMBLY, differential lock, Includes Ref. 3 - 8

1шт.

3

A49644

COIL

solenoid valve

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16 inch, class 6

1шт.

6

225-14108

NUT,#8-32

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

11

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

hex, with external tooth lock washer, No. 8 NC

1шт.

13

A163233

TUBE ASSY.

TUBE differential, Serial Range: lock-transmission

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 15

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

A163015

TUBE ASSY.

TUBE control, Serial Range: valve-lock

1шт.

19

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes Ref. 20

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, Includes Ref. 23

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

A164247

HOSE ASSY.

TUBE nylon, 22 inch, Order A167912 and, Serial Range: cut-length

1шт.

25

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

45 deg, compression, 3/8 tube OD x 1/4 inch PT, Includes Ref. 29 and 30

1шт.

29

222-2611

SLEEVE

flanged, 3/8 inch OD tube

1шт.

30

222-2601

NUT

NUT hex, 3/8 tube OD x 17/21-24 inch

1шт.

33

A154119

FITTING

bulkhead

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

36

222-2681

TEE,17/32"-24 x 1/8" NPT Br

ASSEMBLY, 1/4 tube 7/16-24 x 1/4 inch PT, Includes Ref. 37 and 38

1шт.

37

222-2610

SLEEVE

flanged, 1/4 inch tube OD

2шт.

38

222-2600

NUT

NUT hex, 1/4 tube OD x 7/16-24 inch

2шт.

10

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
