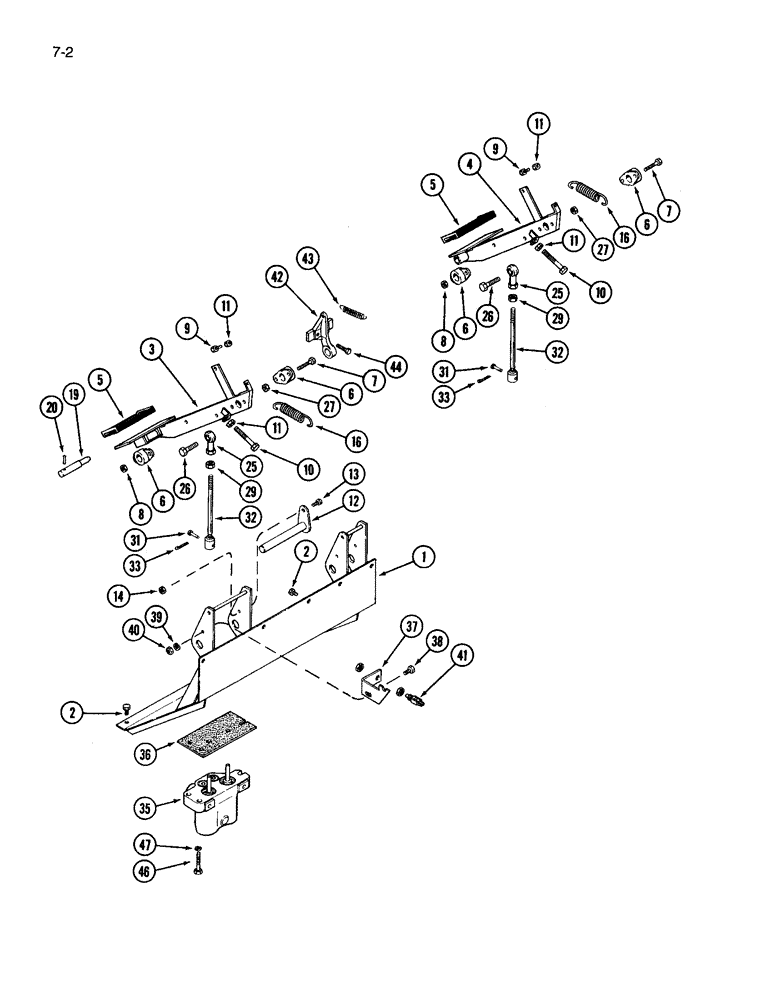

Запчасти Case IH 3594 (7-002) - BRAKE PEDALS AND VALVE (07) - BRAKES

1

A143559

BRACKET

COVER brake and clutch

1шт.

2

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW self-tapping, hex washer head, 3/8 NC x 5/8 inch

8шт.

3

A164687

PEDAL

brake, right

1шт.

4

A164688

PEDAL

brake, left

1шт.

5

F9197

PAD

COVER pedal, rubber

2шт.

6

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

pivot, foot pedal

4шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

8

131-1281

LOCK NUT,Jam, 5/16"-18

NUT hex, jam, self-locking, 5/16 inch NC

4шт.

9

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

10

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

12

A59452

SHAFT

brake pedal

1шт.

13

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

14

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

16

A160874

SPRING

pedal return

2шт.

19

A164694

PIN

interlock, brake pedal

1шт.

20

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

1шт.

25

A32398

BALL JOINT

LINK eye, female

2шт.

26

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC

3шт.

29

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

2шт.

31

A67313

PIN

clevis

2шт.

32

A160653

ROD

brake

2шт.

33

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

35

REF

INSTRUCTION

VALVE brake, master power, See Figure 7-012

1шт.

36

A163161

GASKET

brake, master cylinder

1шт.

37

A169537

BRACKET

differential lock switch

1шт.

38

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

39

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

40

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

41

A163160

SWITCH

brake, differential lock

1шт.

42

A169728

LEVER

differential lock return

1шт.

43

A164415

SPRING

lever return

1шт.

44

A67294

BOLT

adjusting, control lever

1шт.

46

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

3шт.

47

93-11039

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER lock, 3/8 inch internal - external shakeproof

3шт.
