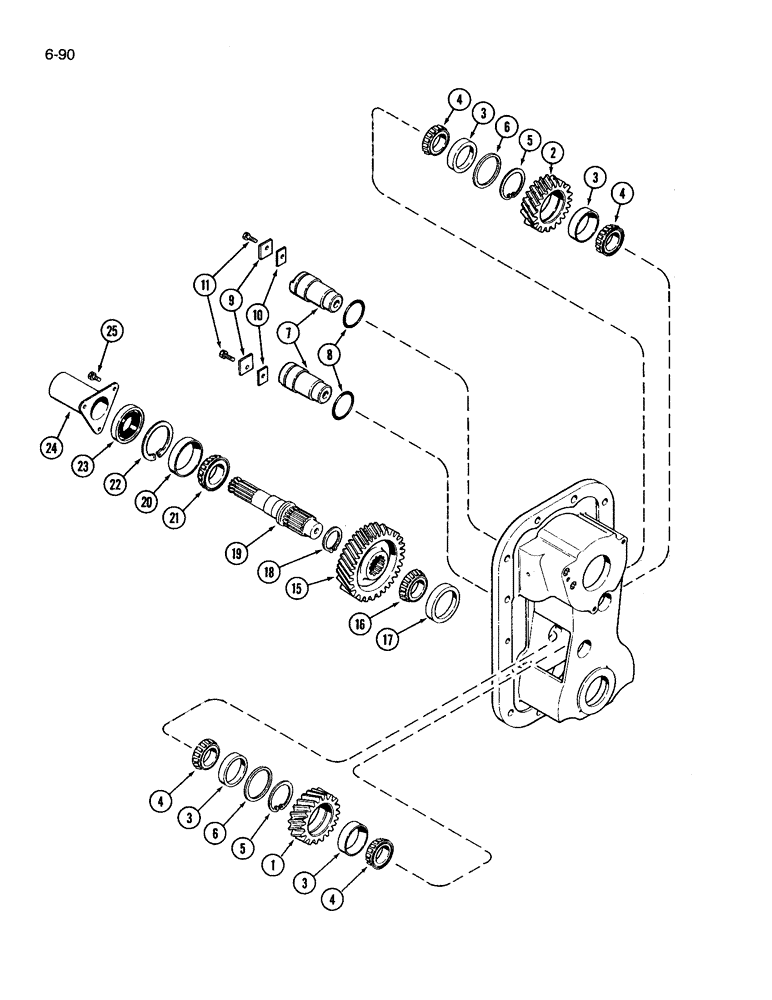

Запчасти Case IH 3594 (6-090) - PTO IDLERS AND OUTPUT SHAFT (06) - POWER TRAIN

1

A142592

GEAR

PTO idler, left

1шт.

2

A142591

GEAR

PTO idler, right, with identification groove

1шт.

3

130503H

BEARING CUP

CUP bearing

4шт.

4

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

CONE bearing

4шт.

5

100-21325

SNAP RING,3.25", Int, #325

Ring, Snap, 3.25", Int, #325

2шт.

6

A142667

SPACER

bearing

2шт.

7

A142593

PIN,57.07mm OD x 119.58mm L

PTO idler gear

2шт.

8

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

9

A136233

RETAINER

idler pins

2шт.

10

A136315

SHIM,.0050" Thk

Retainer .0050" Thk

1шт.

10

A136316

SHIM,.0070" Thk

Retainer .0070" Thk

1шт.

10

A136317

SHIM,.010" Thk

Retainer .010" Thk

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

15

A138186

GEAR

PTO output

1шт.

16

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE bearing

1шт.

17

ST877

BEARING CUP,85mm OD x 17.46mm W

CUP bearing

1шт.

18

A142923

SNAP RING,#206, Ext

Ring, Snap, #206, Ext

1шт.

19

A148833

SHAFT

output

1шт.

20

ST970

BEARING SET,88.92mm OD x 16.56mm W

CUP bearing

1шт.

21

298029R91

BEARING ASSY,47.63mm ID x 22.23mm W

CONE bearing

1шт.

22

A151628

RING

retaining, output shaft, 0.074 inch

1шт.

22

A151471

RING

retaining, output shaft, 0.078 inch

1шт.

22

A151470

RING

retaining, output shaft, 0.082 inch

1шт.

22

A151235

RING

retaining, output shaft, 0.086 inch

1шт.

22

A142636

RING

retaining, output shaft, 0.090 inch

1шт.

22

A142635

RING

retaining, output shaft, 0.094 inch

1шт.

22

A142634

RING

retaining, output shaft, 0.098 inch

1шт.

22

A142637

RING

retaining, output shaft, 0.102 inch

1шт.

22

A148193

RING

retaining, output shaft, 0.108 inch

1шт.

22

D38774

SNAP RING,3.50", Int, #350

Ring, Snap, , output shaft, 0.109 inch 3.50", Int, #350

1шт.

23

A142927

OIL SEAL,47.63mm ID x 89.08mm OD x 13.08mm Thk

oil, output shaft

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

24

A142641

GUARD

PTO output shaft

1шт.

25

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch

3шт.

A49396

SEAL

KIT Seal, PTO clutch and brake, Includes Ref. 8 and 23 and Ref. 3, 13, 17, 18 and 37 - 40 on Figure 6-088

1шт.
