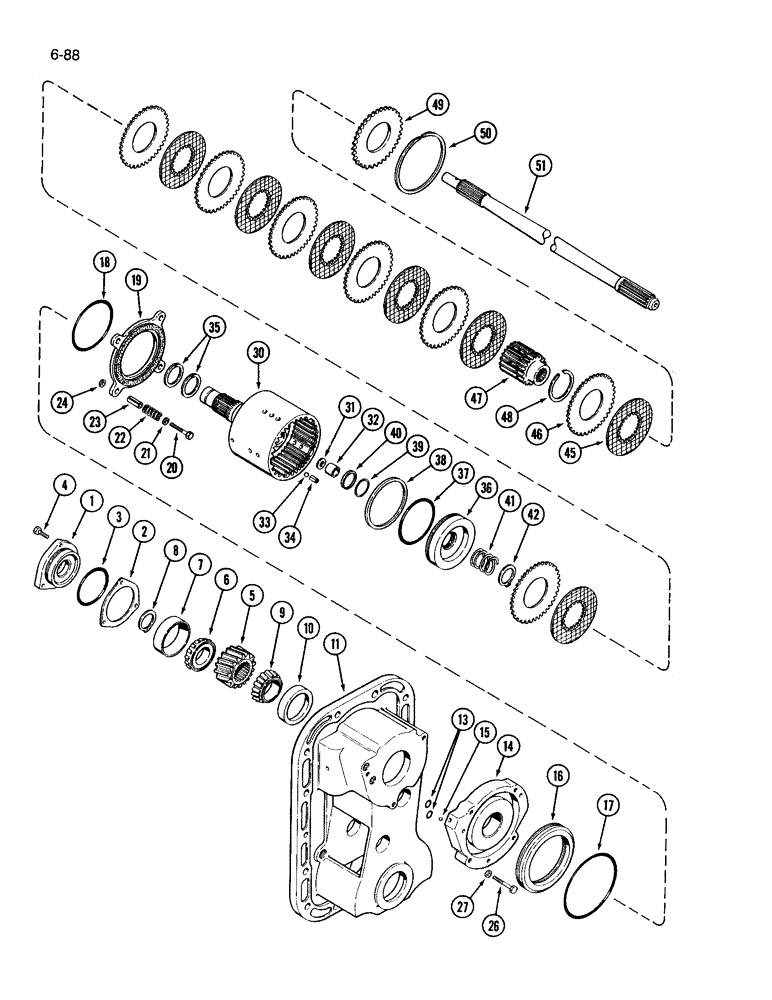

Запчасти Case IH 3594 (6-088) - PTO CLUTCH AND BRAKE (06) - POWER TRAIN

1

A142590

COVER

lubrication oil inlet

1шт.

2

A144020

SHIM

cover, 0.005 inch

1шт.

2

A144021

SHIM

cover, 0.007 inch

1шт.

2

A144022

SHIM

cover, 0.010 inch

1шт.

3

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

5

A138183

GEAR

PTO, input

1шт.

6

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE bearing

1шт.

7

T27784

CUP

bearing

1шт.

8

100-16156

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

1шт.

9

317705C91

ROLLER BEARING,47.638 mm ID x 25.6 mm

CONE bearing

1шт.

10

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

CUP bearing

1шт.

11

REF

INSTRUCTION

HOUSING PTO, See Figure 6-086

1шт.

13

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING square section, 0.301 ID x 0.066 inch

2шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

14

A138176

CARRIER

PTO brake piston

1шт.

15

211-208

BALL,5/16" Dia

5/16 inch, grade 200, chrome alloy steel

1шт.

16

A150236

PISTON

brake, PTO

1шт.

17

238-5259

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

18

238-7248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 7, 75 Duro

Inner -248, Cl 7, 4.734" ID x .139" Thk

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

19

1981243C1

PLATE

BRAKE PTO, Replaces A142910

1шт.

20

26-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

hex, 5/16 NC x 2-1/4 inch, grade 8

4шт.

21

95-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.

22

A152184

SPRING

PTO brake return

4шт.

23

138-202

LOCK PIN,1/2" x 1 3/8", Slotted

Pin, 1/2" x 1 3/8", Slotted

4шт.

24

A148875

WASHER,8.2mm ID x 12.7mm OD x 0.86mm Thk

PTO brake return

4шт.

26

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3шт.

27

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

carrier bolt

3шт.

30

A142918

CARRIER

PTO CLUTCH CARRIER ASSEMBLY

1шт.

31

A63265

WASHER

thrust, PTO input shaft

1шт.

32

A64451

BUSHING,20.54mm ID x 25.41mm OD x 22.35mm L

input shaft

1шт.

33

211-207

BALL

9/32 inch, grade 200, chrome alloy steel

1шт.

34

138-222

LOCK PIN,5/16" x 1/2", Slotted

Pin, 5/16" x 1/2", Slotted

1шт.

35

A59005

SEAL

RING seal

2шт.

36

A155962

PISTON

PTO clutch

1шт.

37

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEAL piston, external

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

38

A155963

SEAL

piston, external

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

39

A63258

SEAL

piston, internal

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

40

A155964

O-RING,1.812" ID x 0.073" Thk

SEAL piston, internal

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

41

A63260

SPRING

piston return

1шт.

42

100-16150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

45

1981228C1

PLATE

clutch, friction, Replaces A67130

8шт.

46

A67156

PLATE

clutch, steel

8шт.

47

A136226

HUB

PTO clutch

1шт.

48

101-11275

SNAP RING,#275, 2.594, Ext

RING, SNAP, #275, 2.594, Ext

1шт.

49

A50643

PLATE

clutch back-up

1шт.

50

A50639

RING

retaining

1шт.

51

A152396

SHAFT

PTO input

1шт.

A49396

SEAL

KIT Seal, PTO clutch and brake, Includes Ref. 3, 13, 17, 18 and 37 - 40, and Ref. 8 and 23 on Figure 6-090

1шт.
