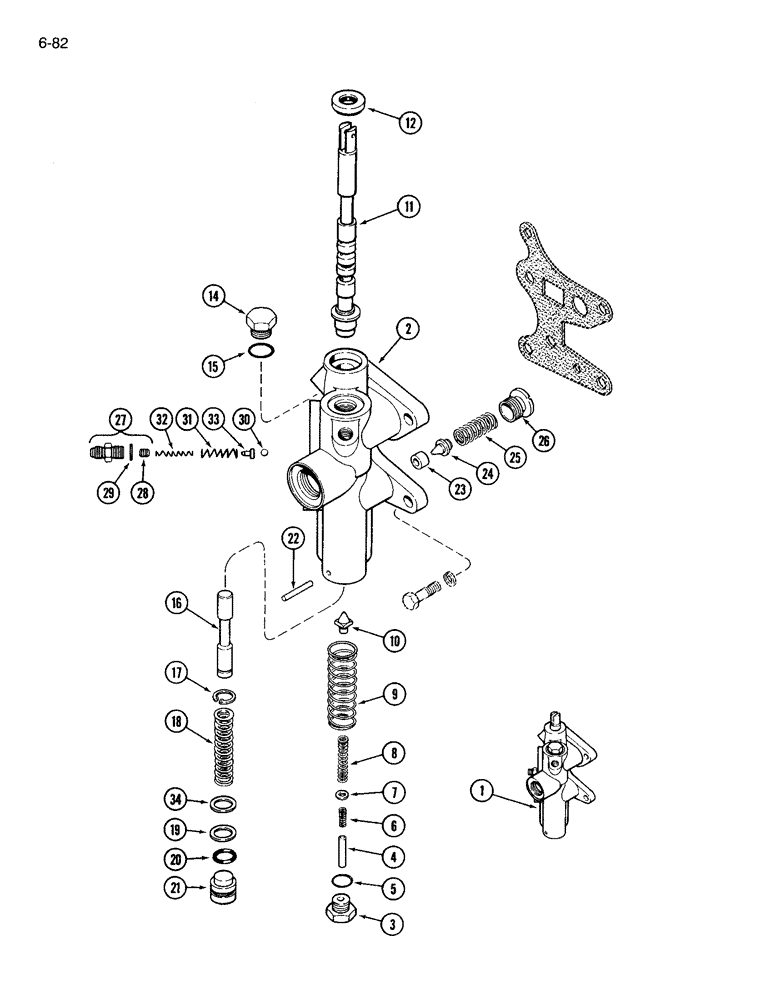

Запчасти Case IH 3594 (6-082) - G107966 PTO CONTROL VALVE (06) - POWER TRAIN

1

G107966

CHECK VALVE

PTO CONTROL VALVE ASSEMBLY, Order valve G110274

1шт.

2

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

G107958

PLUG

MODULATOR PLUG ASSEMBLY

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG modulator

1шт.

4

NSS

NOT SOLD SEPARAT

PIN spring guide

1шт.

5

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 ID x 1/64 inch

1шт.

6

G107969

SPRING

modulator, secondary

1шт.

7

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

spring guide

1шт.

8

G109048

SPRING

modulator, primary

1шт.

9

A139739

SPRING

return

1шт.

Order one each of the following springs, P/N G109868, G109662, and G109663

1шт.

10

A61991

POINT

modulator

1шт.

11

NSS

NOT SOLD SEPARAT

PTO CONTROL SPOOL ASSEMBLY, Order valve G110274

1шт.

12

G105700

OIL SEAL

oil

1шт.

14

214389

PLUG,3/4" - 16 ORB

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL regulating, Order valve G110274

1шт.

17

A60273

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

18

G109129

SPRING

regulator spool

1шт.

19

A149281

SHIM

regulator spring, 1/64 inch

1шт.

20

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

21

A149282

PLUG

regulator spool

1шт.

22

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

23

A60686

SEAT

relief valve

1шт.

24

A60687

VALVE POPPET

POPPET relief valve

1шт.

25

G109164

SPRING

relief valve

1шт.

26

A63356

PLUG

relief spring

1шт.

27

G109024

CONNECTOR, ELEC

PTO VALVE CONNECTOR ASSEMBLY, detent

1шт.

28

A160657

SET SCREW,3/8" - 16

adjusting

1шт.

30

211-211

BALL,13/32" Dia

13/32 inch, grade 200, chrome alloy steel

1шт.

31

G109025

SPRING

detent, outer

1шт.

Order one each of the following springs, P/N G109868, G109662, and G109663

1шт.

32

G109026

SPRING

detent, inner

1шт.

Order one each of the following springs, P/N G109868, G109662, and G109663

1шт.

33

G109022

AXLE PIN

PIN guide, detent spring

1шт.

34

G109428

SHIM,.0950" Thk

Regulator spring .0950" Thk

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
