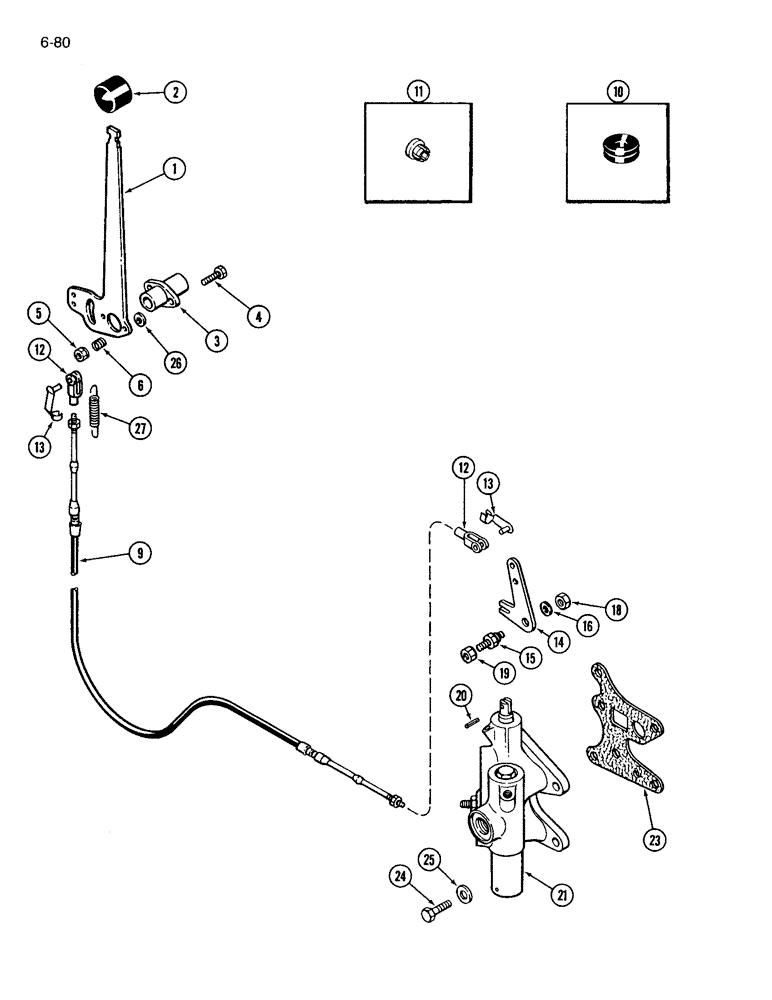

Запчасти Case IH 3594 (6-080) - PTO CONTROL LINKAGE (06) - POWER TRAIN

1

A162858

LEVER

PTO control

1шт.

2

A177440

KNOB

lever, yellow

1шт.

3

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING control lever

1шт.

5

230-4214

LOCK NUT,1/4"-20, GA

NUT hex, self-locking, 1/4 inch NC

2шт.

6

B51407

SPRING

control lever

2шт.

9

A177635

CABLE

control lever to valve, 57" long

1шт.

10

A141389

GROMMET

cable

1шт.

11

A162961

PLUG

3/4 inch diameter head

2шт.

12

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS adjustable, No. 10

2шт.

13

A149683

PIN

clevis, spring, 3/16 inch

2шт.

14

A163049

LEVER

PTO

1шт.

15

A160040

STUD

PTO lever

1шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

18

131-1306

JAM NUT,Jam, 3/8"-16

NUT hex, jam, self-locking, 3/8 inch NC

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

20

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

1шт.

21

REF

INSTRUCTION

PTO CONTROL VALVE ASSEMBLY, See Figure 6-082 and 6-084

1шт.

23

A145530

GASKET

mounting, control valve

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

4шт.

25

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

27

A164415

SPRING

lever return, used with control valve G107966 only

1шт.

4

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
