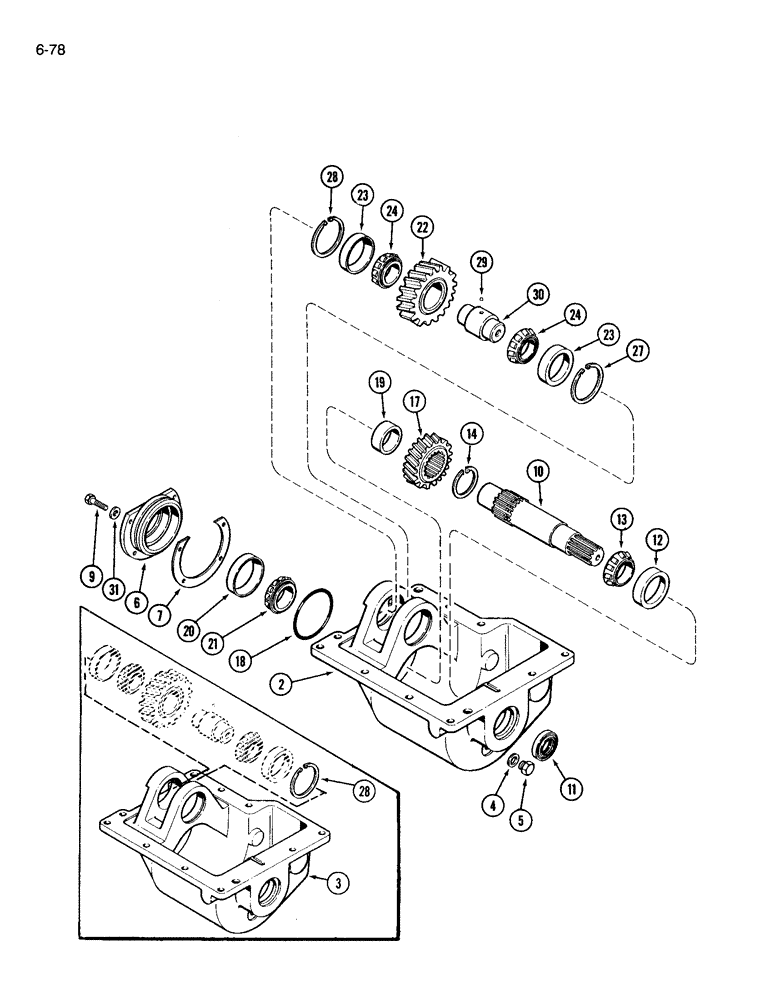

Запчасти Case IH 3594 (6-078) - TRANSFER GEARBOX (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A179368
GEARBOX ASSY
TRANSFER GEARBOX ASSEMBLY, Order components, Includes Ref. 2 - 31
1шт.
2
A182204
HOUSING
gearbox, with front and rear retaining ring grooves
1шт.
3
A179298
HOUSING
gearbox, with front retaining ring groove only, Order A182204
1шт.
4
A58608
GASKET
drain plug
1шт.
5
A140222
PLUG
drain
1шт.
6
A179180
RETAINER
output shaft, rear
1шт.
7
A179246
SHIM,0.051mm Thk
Bearing retainer (0.002") 0.051mm Thk
1шт.
7
A179247
SHIM,0.254mm Thk
Bearing retainer (0.010") 0.254mm Thk
1шт.
7
A179248
SHIM,0.508mm Thk
Bearing retainer (0.020") 0.508mm Thk
1шт.
9
26-622
BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 8
hex, 3/8 NC x 1-3/8 inch
4шт.
10
A179553
SHAFT
output
1шт.
11
A182219
OIL SEAL
SEAL oil, output shaft
1шт.
12
779160R1
BEARING, CUP
CUP bearing
1шт.
13
A31264
ROLLER BEARING,1.625" ID x 1"
CONE bearing
1шт.
14
F35283
SNAP RING,#231, Ext
Ring, Snap, #231, Ext
1шт.
17
A168606
GEAR
output
1шт.
18
238-5245
O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro
1шт.
19
A182280
SPACER
output gear
1шт.
20
376463C1
BEARING CUP
CUP bearing
1шт.
21
364463C91
BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"
CONE bearing
1шт.
22
A168430
GEAR, IDLER
GEAR idler
1шт.
23
130503H
BEARING CUP
CUP bearing
2шт.
24
300426R91
BEARING ASSY,45.618 mm ID x 25.4 mm
CONE bearing
2шт.
27
A151675
RING
retaining, 0.086 inch, standard
1шт.
28
A151678
RING
retaining, spacer, 0.070 inch
1шт.
28
A151677
RING
retaining, spacer, 0.076 inch
1шт.
28
A151676
RING
retaining, spacer, 0.081 inch
1шт.
28
A151675
RING
retaining, spacer, 0.086 inch
1шт.
28
A152246
RING
retaining, spacer, 0.091 inch
1шт.
28
A152245
RING
reatining, spacer, 0.096 inch
1шт.
28
A152244
RING
retaining, spacer, 0.101 inch
1шт.
29
211-206
BALL,1/4" Dia
1/4 inch, grade 200, chrome alloy steel
1шт.
30
A179624
SHAFT
idler gear
1шт.
31
A140282
WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk
hardened
4шт.
Выбрано товаров: 34
