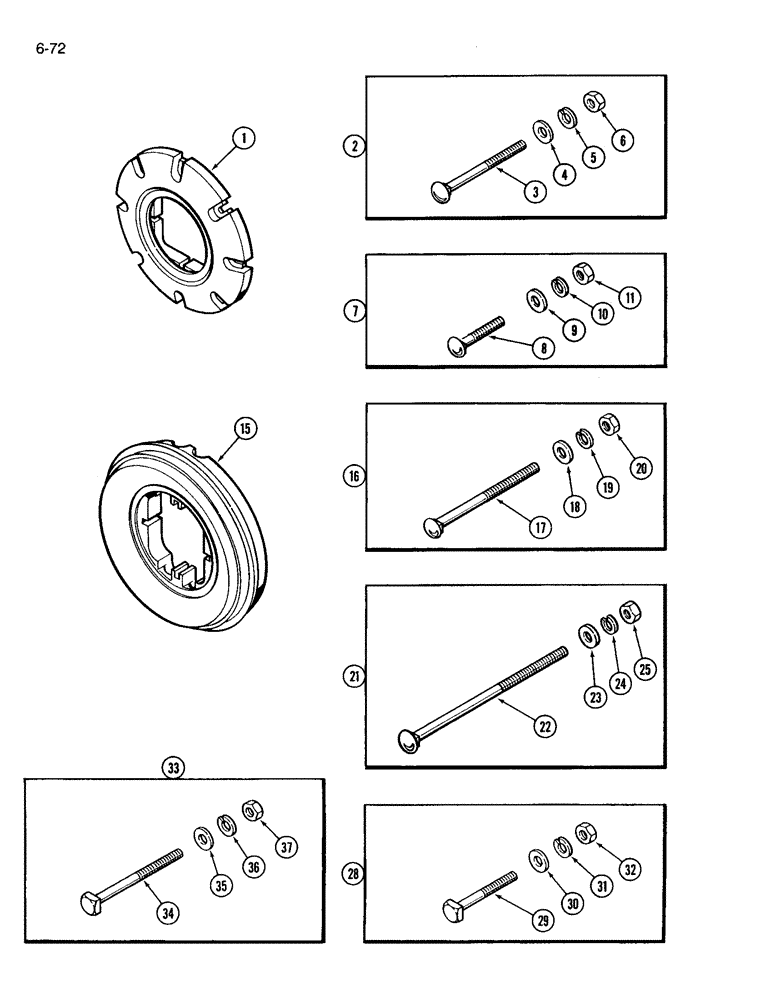

Запчасти Case IH 3594 (6-072) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

A33178

WEIGHT

outside of wheel, 140 lb, machinery item

1шт.

2

A67484

PACKAGE

KIT Hardware, first outside weight, machinery item, Includes Ref. 3 - 6

1шт.

3

433-10112

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 7", Gr 5

BOLT round head square neck, 5/8 NC x 7 inch

8шт.

4

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

8шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

425-1010

NUT,5/8"-11, G5

8шт.

7

A62577

PACKAGE

KIT Hardware, each add on weight, machinery item, Includes Ref. 8 - 11

1шт.

8

433-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5

BOLT round head square neck, 5/8 NC x 4 inch

8шт.

9

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

8шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

425-1010

NUT,5/8"-11, G5

8шт.

15

A34797

WIEGHT inside of wheel, 400 lb, machinery item

1шт.

16

A67487

KIT Hardware, wheel weight, rear, machinery item, Includes Ref. 17 - 20

1шт.

17

33-10144

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 9", Gr 5

BOLT round head square neck, 5/8 NC x 9 inch

8шт.

18

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

8шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

20

425-1010

NUT,5/8"-11, G5

8шт.

21

A67486

KIT Hardware, wheel weight, rear, machinery item, Includes Ref. 22 - 25

1шт.

22

111-638

CARRIAGE BOLT,Short NK, 5/8"-11 x 14", G5

BOLT round head square neck, 5/8 NC x 14 inch

8шт.

23

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

8шт.

24

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25

425-1010

NUT,5/8"-11, G5

8шт.

28

A67519

PACKAGE

KIT Hardware, wheel weight, rear, machinery item, Includes Ref. 29 - 32

1шт.

29

117-511

SQUARE BOLT,5/8" - 11 x 5", Gr 5

square head, 5/8 NC x 5 inch

8шт.

30

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

8шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

32

425-1010

NUT,5/8"-11, G5

8шт.

33

A67520

KIT Hardware, wheel weight, rear, machinery item, Includes Ref. 34 - 37

1шт.

34

117-512

BOLT,Sq Hd, 5/8" - 11 x 7", Gr 5

square head, 5/8 NC x 7-1/2 inch

8шт.

35

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

8шт.

36

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

37

425-1010

NUT,5/8"-11, G5

8шт.
