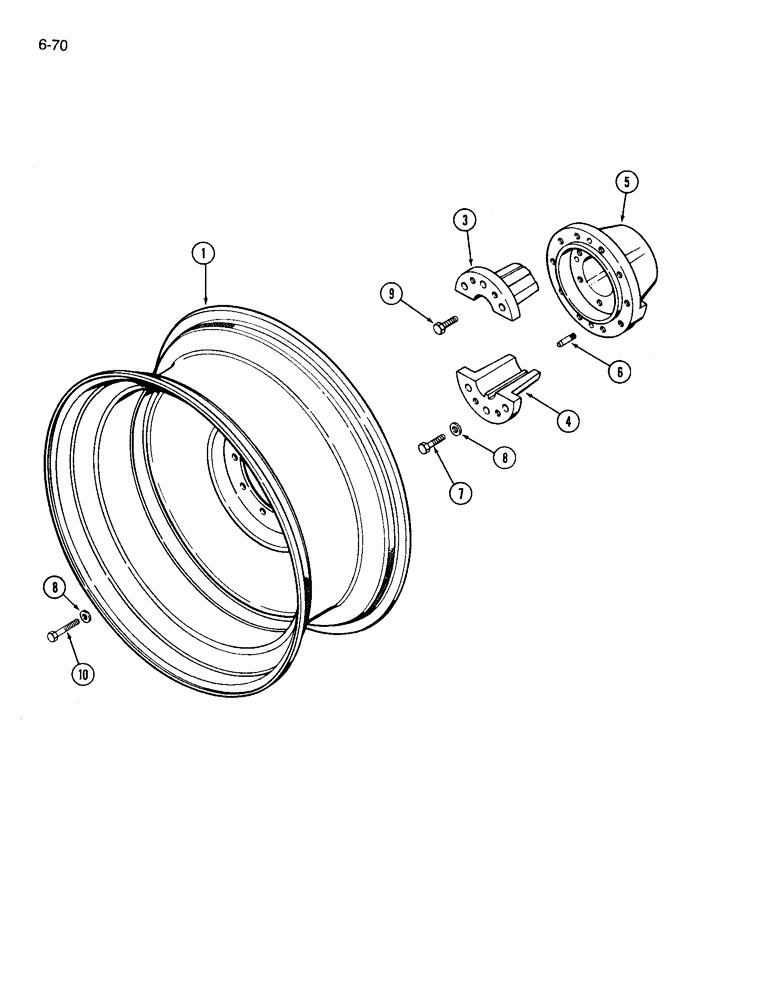

Запчасти Case IH 3594 (6-070) - DUAL REAR WHEELS, 38 AND 42 INCH STEEL RIMS, 10 BOLT (06) - POWER TRAIN

1

139266C1

WHEEL

steel, used with 18.4 x 38 tire, Replaces A181309

2шт.

1

139267C1

WHEEL

steel, used with 20.8 x 38 tire, Replaces A181310

2шт.

1

1270783C1

RIM

WHEEL steel, used with 18.4 x 42 tire, Replaces A181311

2шт.

1

1334333C1

RIM

WHEEL steel, used with 20.8 x 42 tire, Replaces A181314

2шт.

A67642

KIT Dual Hub, for 3-7/8 inch OD axle, Order components, Include Ref. 3 - 10

2шт.

3

A187155

BUSHING

hub, 3-7/8 inch ID, Replaces A180920

2шт.

4

A187156

BUSHING

hub, keyed, 3-7/8 inch ID, Replaces A180919

2шт.

5

A180916

HUB

wheel, 10 bolt

2шт.

6

A181315

GUIDE PIN

PIN guide, tapered, if required

2шт.

7

426-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8

hex, 7/8 NC x 3-1/2 inch, grade 8

12шт.

8

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

32шт.

9

113-839

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8, Full Thd

8шт.

10

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

hex, 7/8 NC x 2 inch, grade 8

20шт.
