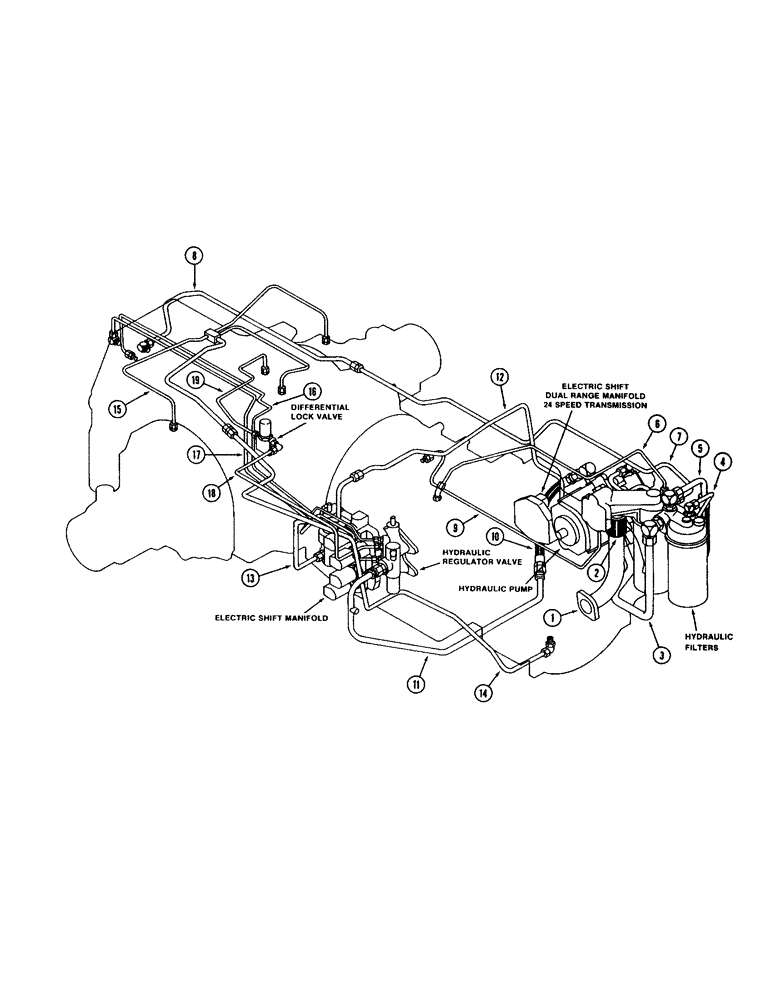

Запчасти Case IH 3594 (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Filter inlet tube, Page 8-21

1шт.

2

Filter inlet hose, Page 8-21

1шт.

3

Filter to pump tube, Page 8-21

1шт.

4

Priority valve tube, Page 8-21

1шт.

5

Hydraulic pump suction hose, Page 8-21

1шт.

6

Dual range lubrication tube, Page 8-21

1шт.

7

Front PTO lubrication tube, Page 8-3, 8-21

1шт.

8

Rear PTO lubrication tube, Page 8-3

1шт.

9

(C1) Lubrication tube, Page 8-21

1шт.

10

Regulator valve hose, Page 8-5, 8-7

1шт.

11

Pump to regulator valve tube, Page 8-5, 8-7

1шт.

12

Left dual range tube, Page 6-5

1шт.

13

Right dual range tube, Page 6-5

1шт.

14

Front planetary lubrication tube, Page 6-53

1шт.

15

Rear planetary lubrication tube, Page 6-53

1шт.

16

Regulator valve to PTO brake tube, Page 8-3

1шт.

17

Regulator valve to PTO clutch tube, Page 8-3

1шт.

18

Regulator valve to differential lock valve tube, Page 7-7

1шт.

19

Differential lock valve to transmission tube, Page 7-7

1шт.
