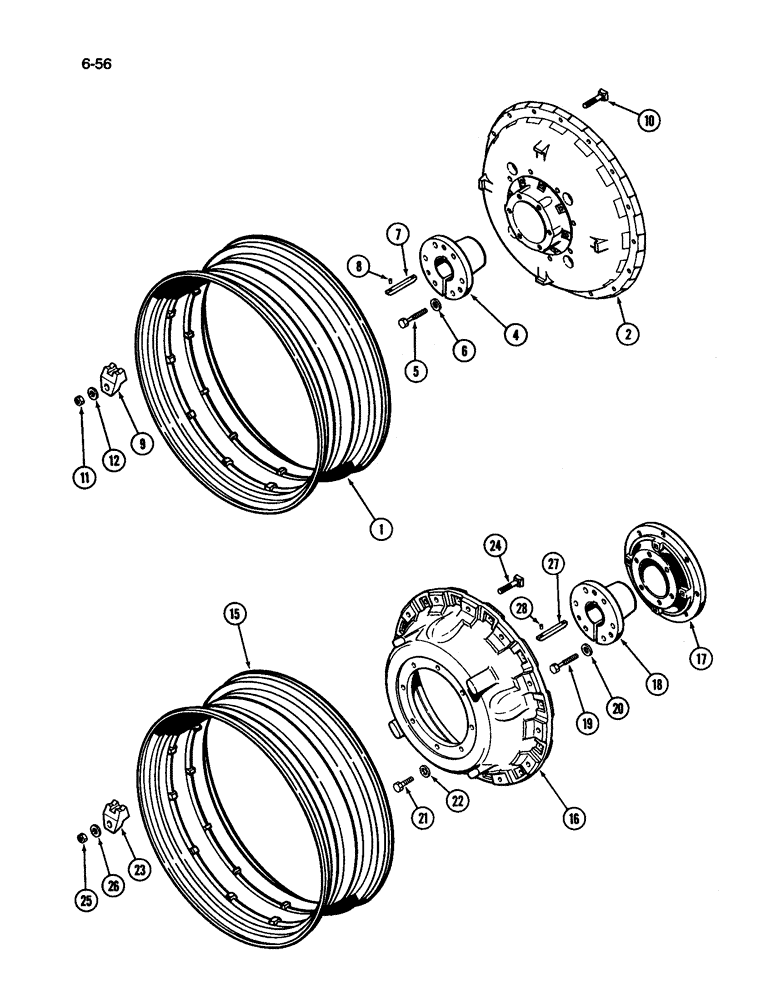

Запчасти Case IH 3594 (6-056) - REAR WHEELS (06) - POWER TRAIN

1

1334480C1

RIM

wheel, rear, used with 18.4 x 38 tire, Replaces A160971, solid cast with 38 inch

2шт.

1

1334481C1

RIM

wheel, rear, used with 20.8 x 38 tire, Replaces A160972, solid cast with 38 inch

2шт.

2

A161818

WHEEL

rear, solid cast with 38 inch rims

2шт.

4

A63805

BUSHING

wheel, 3-7/8 inch ID, solid cast with 38 inch rims

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex, 3/4 NC x 4-1/2 inch, solid cast with 38 inch rims

12шт.

6

D31328

WASHER

flat, 3/4 inch, solid cast with 38 inch rims

12шт.

7

A63219

KEY

axle, 3/4 x 6 inch, solid cast with 38 inch rims

2шт.

8

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Solid cast with 38 inch rims 1/4" x 1/2", Slotted

2шт.

9

A57654

CLAMP

adjusting, double ramp, solid cast with 38 inch rims

32шт.

10

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

square head, 3/4 NC x 3-1/2 inch, grade 5, solid cast with 38 inch rims

32шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

Solid cast with 38 inch rims 3/4"-10, G5, Hvy

32шт.

12

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

flat, wheel, solid cast with 38 inch rims

32шт.

15

1334480C1

RIM

wheel, rear, used with 18.4 x 38 tire, Replaces A160971, universal cast with 38 inch

2шт.

15

1334481C1

RIM

wheel, rear, used with 20.8 x 38 tire, Replaces A160972, universal cast with 38 inch

2шт.

16

A145464

WHEEL

rear, universal cast with 38 inch rims

2шт.

17

A145322

HUB

wheel, tapered, universal cast with 38 inch rims

2шт.

18

A63805

BUSHING

wheel, 3-7/8 inch ID, universal cast with 38 inch rims

2шт.

19

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BLOT hex, 3/4 NC x 4-1/2 inch, universal cast with 38 inch rims

12шт.

20

D31328

WASHER

flat, 3/4 inch, universal cast with 38 inch rims

12шт.

21

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

Universal cast with 38 inch rims Hex, 3/4"-10 x 2 3/4", G8

16шт.

22

D31328

WASHER

flat, 3/4 inch, universal cast with 38 inch rims

16шт.

23

A57654

CLAMP

adjusting, double ramp, universal cast with 38 inch rims

32шт.

24

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

square head, 3/4 NC x 3-1/2 inch, grade 5, universal cast with 38 inch rims

32шт.

25

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

Universal cast with 38 inch rims 3/4"-10, G5, Hvy

32шт.

26

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

flat, wheel, universal cast with 38 inch rims

32шт.

27

A63219

KEY

axle, 3/4 x 6 inch, universal cast with 38 inch rims

2шт.

28

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Universal cast with 38 inch rims 1/4" x 1/2", Slotted

2шт.
