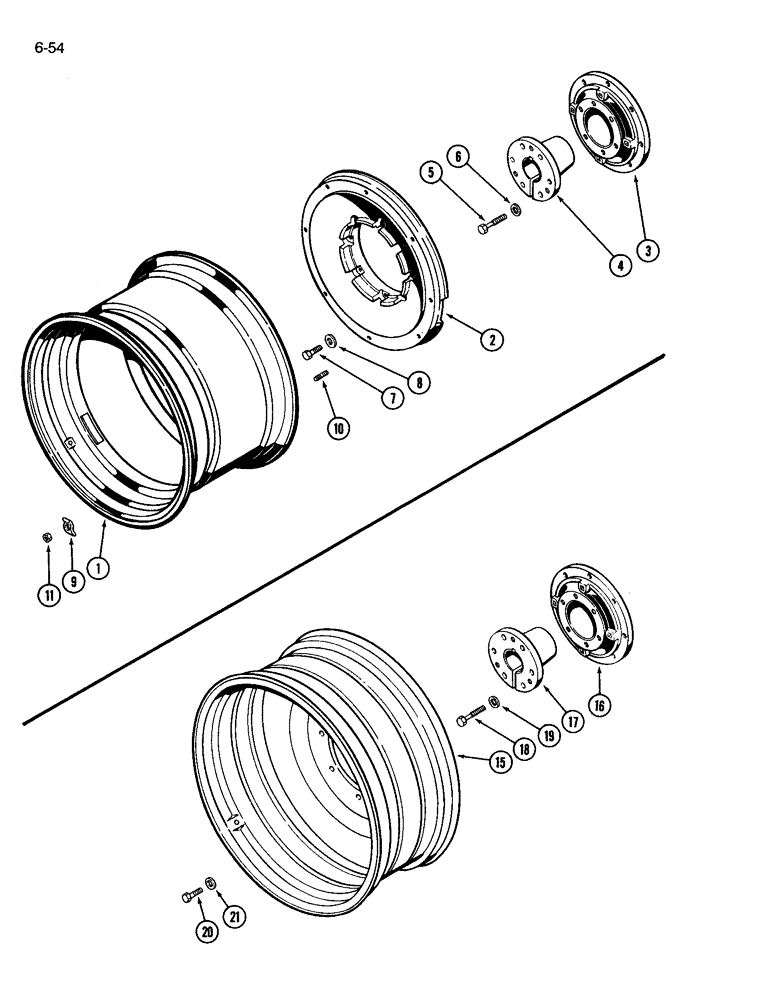

Запчасти Case IH 3594 (6-054) - REAR WHEELS (06) - POWER TRAIN

1

A63807

RIM

wheel, rear, used with 24.5 x 32 tire, cast with 32 inch

2шт.

2

A145461

FLANGE

WHEEL, rear, cast with 32 inch rims

2шт.

3

A145322

HUB

wheel, tapered, cast with 32 inch rims

2шт.

4

A63805

BUSHING

wheel, 3-7/8 inch ID, cast with 32 inch rims

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex, 3/4 NC x 4-1/2 inch, cast with 32 inch rims

12шт.

6

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 3/4 inch, cast with 32 inch rims

12шт.

7

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

hex, 3/4 NC x 2-1/2 inch, grade 8, cast with 32 inch rims

16шт.

8

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 3/4 inch, cast with 32 inch rims

16шт.

9

A166501

CLAMP

wheel to rim, cast with 32 inch rims

16шт.

10

A60047

STUD

clamp, rim to wheel, cast with 32 inch

16шт.

11

A27183

NUT

hex, 5/8 inch NC, cast with 32 inch rims

16шт.

15

A145462

RIM

wheel, rear, used with 30.5 x 32 tire, stamped with 32 inch

2шт.

16

A145322

HUB

wheel, tapered, stamped with 32 inch rims

2шт.

17

A63805

BUSHING

wheel, 3-7/8 inch ID, stamped with 32 inch rims

2шт.

18

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex, 3/4 NC x 4-1/2 inch, stamped with 32 inch rims

12шт.

19

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 3/4 inch, stamped with 32 inch rims

12шт.

20

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

hex, 3/4 NC x 2-1/2 inch, grade 8, stamped with 32 inch rims

16шт.

21

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 3/4 inch, stamped with 32 inch rims

16шт.
