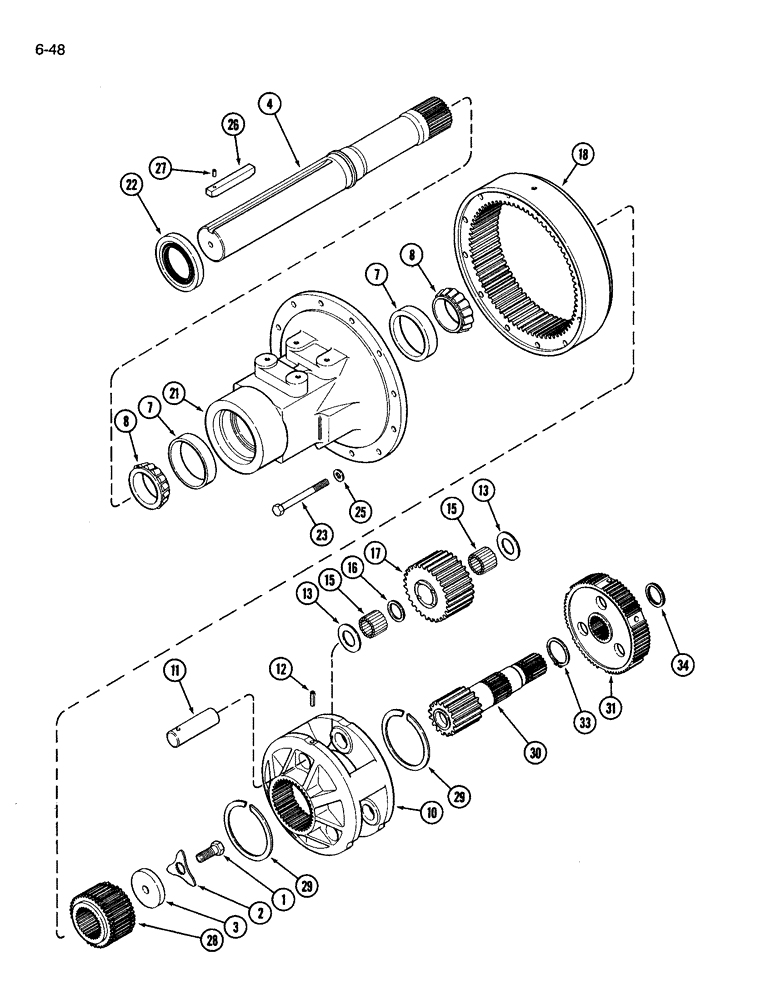

Запчасти Case IH 3594 (6-048) - REAR AXLE, HOUSING AND PLANETARY GEARS, SHORT AXLE, 96 INCH (06) - POWER TRAIN

1

326-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

2шт.

2

A63221

PLATE

bearing lock

2шт.

3

A63220

PLATE

retaining, rear axle

2шт.

4

A154882

SHAFT

rear axle

2шт.

7

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

CUP bearing

4шт.

8

67250C1

ROLLER BEARING,89.99mm ID x 35mm W

CONE bearing

4шт.

10

A154266

CARRIER

planet gear

2шт.

11

A154268

PIN

planet gear

6шт.

12

138-2006

PIN,3/8" x 1", Coiled

roll, 3/8 x 3/4 inch spirol

6шт.

13

A67116

WASHER

planetary gear

12шт.

15

A48461

BEARING, ROLLER

KIT Bearing, roller, planet gear, Includes 38 rollers

6шт.

16

A154491

WASHER

SPACER roller bearing separator

6шт.

17

A179215

GEAR

planet, rear axle

6шт.

18

A179593

GEAR

planetary ring

2шт.

21

A154869

HOUSING

rear axle

2шт.

22

A59046

OIL SEAL

oil, rear axle

2шт.

23

26-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 8

hex, 5/8 NC x 6-1/2 inch

24шт.

25

A64303

WASHER

flat, hardened

24шт.

26

A63219

KEY

axle, 3/4 x 6 inch

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

28

A154264

HUB

rear axle

2шт.

29

A154265

SNAP RING,#575, 5.446, Ext

RING retaining, hub

4шт.

30

A179189

SHAFT

differential, with sun gear

2шт.

31

A159552

HUB ASSY.

HUB brake

2шт.

33

100-11262

SNAP RING,#262, Ext

Ring, Snap, , hub #262, Ext

2шт.

34

102-12215

SNAP RING,#215, 2.060", Ext Spiral

RING retaining

2шт.
