Запчасти Case IH 3594 (6-046) - DIFFERENTIAL, PARK LOCK (06) - POWER TRAIN

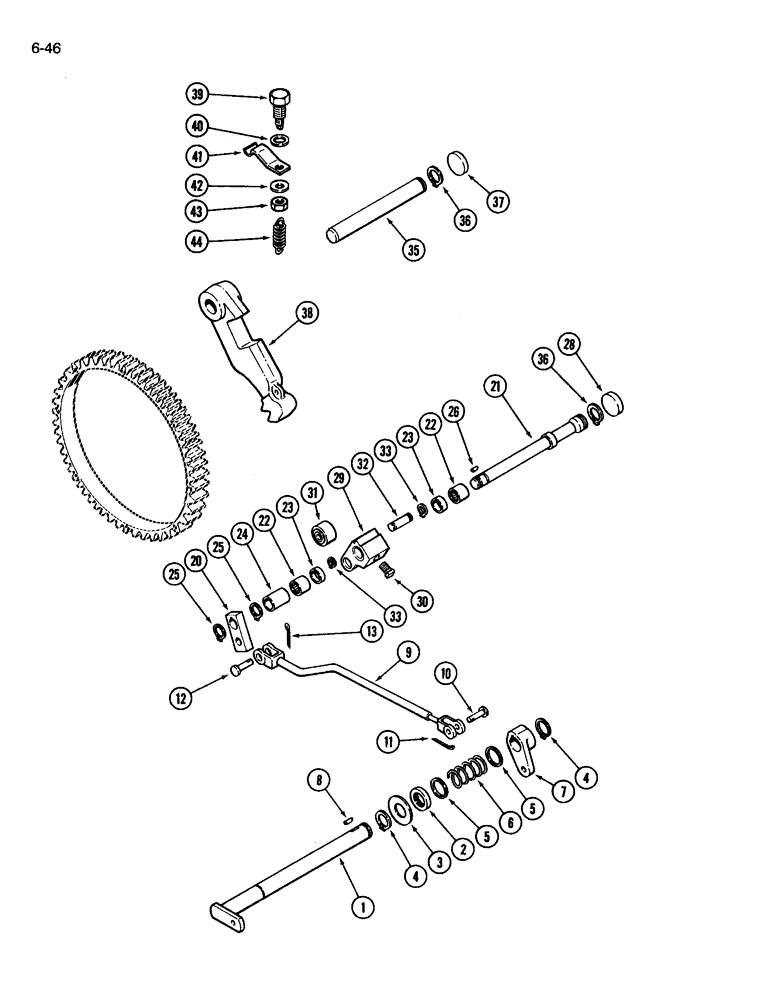

Схема запчастей Case IH 3594 - (6-046) - DIFFERENTIAL, PARK LOCK (06) - POWER TRAIN
11
5
5
28
31
44
30
36
22
42
37
10
33
20
43
33
41
7
9
4
38
36
6
22
23
12
40
32
24
25
3
4
39
26
21
35
25
8
23
2
1
13
29

Артикул

Название

Примечание

Количество

1

A148347

LEVER

park lock

1шт.

2

381721R91

OIL SEAL

oil

1шт.

3

95-11106

WASHER,1" x 2" x .134"

flat, 1-1/16 x 2 x 1/8 inch

1шт.

4

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

5

L31557

WASHER

spring retaining

2шт.

6

A144207

SPRING

compression

1шт.

7

A148362

LEVER

park lock, front

1шт.

8

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

9

A148361

ROD

park lock

1шт.

10

427-7119

CLEVIS PIN,11.13mm OD x 30.23mm L

PIN clevis, 7/16 inch

1шт.

11

432-616

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

1шт.

12

141-56

CLEVIS PIN,1/2" x 1.360"

PIN clevis, 1/2 inch

1шт.

13

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

20

A153618

LEVER

park lock, center

1шт.

21

A153619

SHAFT

park lock, center

1шт.

22

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING needle

2шт.

23

A144847

SPACER

bearing locating, short

2шт.

24

A153620

SPACER

bearing locating, long

1шт.

25

100-1175

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

26

126-106

WOODRUFF KEY,# 213, 1/8" x 3/8", HT

KEY woodruff, 1/8 x 3/8 inch

1шт.

28

41-1024

PLUG,Cup, 1 1/2"

cup, 1-1/2 inch

1шт.

29

A157308

LEVER

park lock, cam carrier

1шт.

30

85-55014

SET SCREW,Sq Hd, 1/2"-13 x 7/8"

SCREW square head, 1/2 NC x 7/8 inch

1шт.

31

A157227

ROLLER

CAM following, standard

1шт.

31

1349167C1

ROLLER

CAM following, oversize, 1.40 inch OD

1шт.

31

1349168C1

ROLLER

CAM following, oversize, 1.42 inch OD

1шт.

31

1349169C1

ROLLER

CAM following, oversize, 1.44 inch OD

1шт.

31

1349170C1

ROLLER

CAM following, oversize, 1.46 inch OD

1шт.

31

1349171C1

ROLLER

CAM following, oversize, 1.48 inch OD

1шт.

31

1349172C1

ROLLER

CAM following, oversize, 1.50 inch OD

1шт.

31

1349173C1

ROLLER

CAM following, oversize, 1.52 inch OD

1шт.

32

A157230

PIN

cam follower

1шт.

33

A39489

SNAP RING,#43, Ext

Ring, Snap, #43, Ext

2шт.

35

A63241

SHAFT

park lock, rear

1шт.

36

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

37

A58568

PLUG,Cup, 1 3/8", Stainless

cup, 1-3/8 inch diameter

1шт.

38

A148273

LEVER

park lock engaging

1шт.

39

A144206

RETAINER

spring detent

1шт.

40

A58608

GASKET

retainer

1шт.

41

A144413

SPRING

park lock detent

1шт.

42

95-11053

WASHER,1/2"

flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

43

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

44

A144541

SPRING

extension, engaging lever

1шт.

Выбрано товаров: 43
