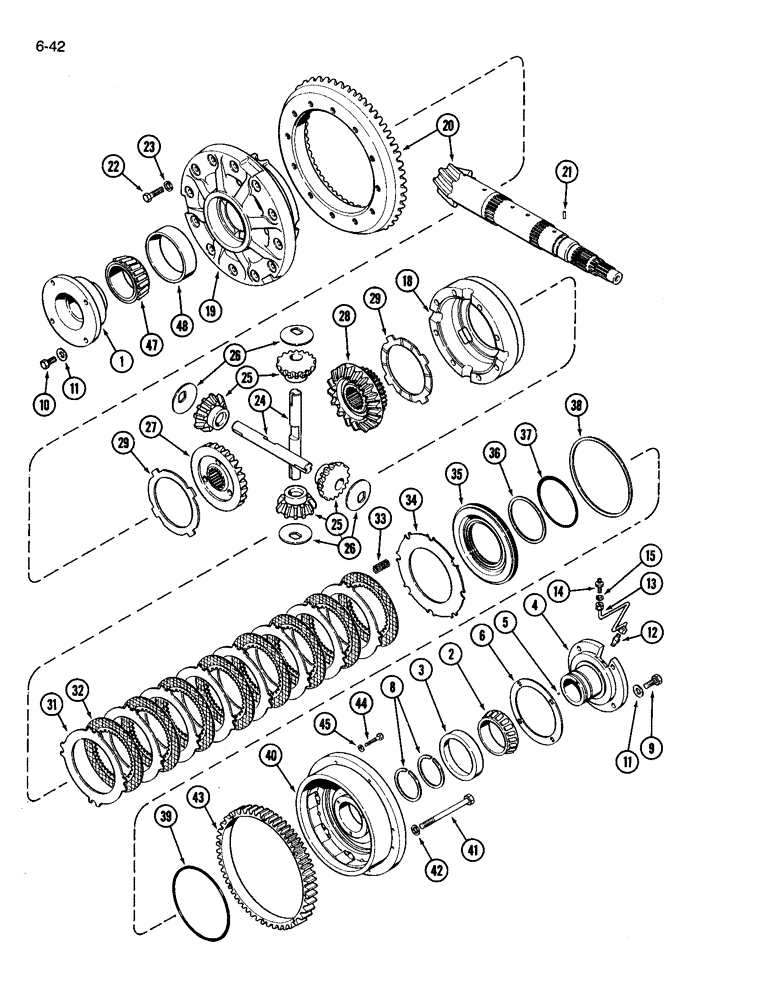

Запчасти Case IH 3594 (6-042) - DIFFERENTIAL, BEARING CARRIER, CAGE, SIDE GEAR AND SHAFT (06) - POWER TRAIN

1

A140049

CARRIER

differential bearing, right

1шт.

2

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE bearing

1шт.

3

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP bearing

1шт.

4

A148761

CARRIER

DIFFERENTIAL BEARING CARRIER ASSEMBLY, left, Includes Ref. 5

1шт.

5

211-204

BALL

3/16 inch, grade 200, chrome alloy steel

1шт.

6

A63186

SHIM,.015" Thk

Brg. carrier .015" Thk

1шт.

6

A63187

SHIM,.007" Thk

Brg. carrier .007" Thk

1шт.

6

A63188

SHIM,.005" Thk

Brg. carrier .005" Thk

1шт.

8

A63192

RING

seal, bearing carrier

2шт.

9

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

hex, 1/2 NC x 1-3/8 inch

4шт.

10

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

11

A148376

WASHER

flat, hardened

8шт.

12

222-91

ELBOW,45 Degree, 1/2"-24 x 1/8" NPT

45 degree, 1/4 tube 1/2-24 thread x 1/8 inch PT

1шт.

13

A64877

TUBE

oil, differential clutch lock

1шт.

14

A154119

FITTING

bulkhead

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

A156996

CAGE

DIFFERENTIAL CAGE ASSEMBLY, Includes Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

CAGE differential, intermediate

1шт.

19

NSS

NOT SOLD SEPARAT

CAGE differential, ring gear

1шт.

20

A168435

GEAR-SET

SET Gear, pinion and spiral bevel, matched

1шт.

21

138-2076

PIN,5/32" x 1/2", Coiled

1шт.

22

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

12шт.

23

A150672

WASHER

flat, hardened, 1/2 x 1 x 3/32 inch

12шт.

24

A168106

PIN,31.74mm OD x 259.59mm L

differential pinion

2шт.

25

A179575

PINION

GEAR pinion

4шт.

26

A179590

THRUST WASHER,32.05mm ID x 80mm OD x 2.39mm Thk

thrust

4шт.

27

A154890

GEAR

bevel, side, right

1шт.

28

A154821

GEAR WHEEL

GEAR bevel, side, left

1шт.

29

A154816

WASHER,137.92mm ID x 191.52mm OD x 2.39mm Thk

thrust, side gear

2шт.

31

A67115

PLATE

clutch, steel

8шт.

32

A136340

PLATE

clutch, sintered

8шт.

33

A138887

SPRING

return, differential lock piston

4шт.

34

A136339

PLATE

return spring

1шт.

35

A146670

PISTON

differential lock

1шт.

36

A146683

RING

sealing, 4-15/32 ID x 7/64 inch square, internal

1шт.

37

A150754

O-RING,4.718" ID x 0.107"

4-11/16 ID x 3/32 inch, internal

1шт.

38

A146682

RING

SEAL sealing, 8-9/32 OD x 7/64 inch square, external

1шт.

39

A150753

O-RING,7.84" ID x 0.107"

7-7/8 inch OD x 3/32 inch, external

1шт.

40

A144582

CAGE

differential lock

1шт.

41

26-10108

BOLT,Hex, 5/8" - 11 x 6-3/4", Gr 8

hex, 5/8 NC x 6-3/4 inch

8шт.

42

A64303

WASHER

flat, hardened

8шт.

43

A157139

GEAR

ring, park lock

1шт.

44

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

hex, 3/8 NC x 1-3/4 inch, grade 8

8шт.

45

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

flat, hardened

8шт.

47

971533R91

BEARING,85.75mm ID x 43.07mm W

CONE bearing

1шт.

48

971522R1

BEARING CUP,142.16mm OD x 34.13mm W

CUP bearing

1шт.
