Запчасти Case IH 3594 (6-040) - TRANSMISSION (06) - POWER TRAIN

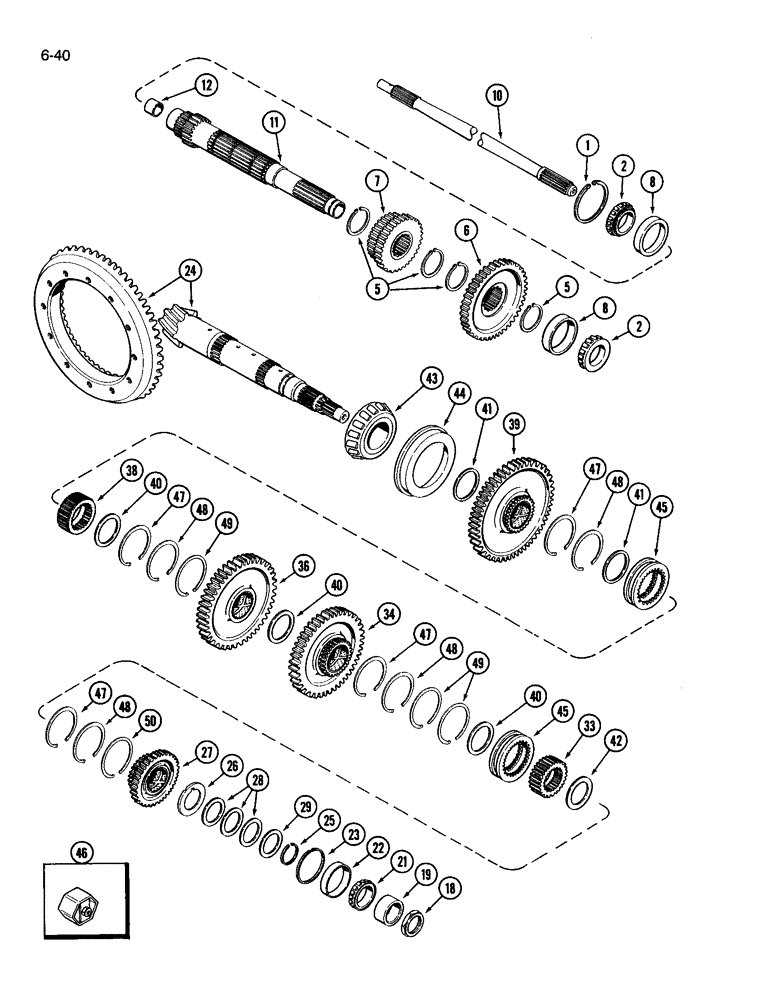

Схема запчастей Case IH 3594 - (6-040) - TRANSMISSION (06) - POWER TRAIN
29
45
40
27
5
47
43
6
28
36
48
8
47
47
5
50
42
34
10
26
38
41
25
11
49
24
33
8
48
48
23
44
40
22
19
47
2
7
12
45
18
1
2
46
39
40
21
49
41
48

Артикул

Название

Примечание

Количество

1

A156868

RING, SNAP

RING retaining, 0.131 inch, black, planetary output

1шт.

1

A168769

RING

retaining, 0.089 inch, orange, planetary output

1шт.

1

A168768

OIL SEAL

RING retaining, 0.095 inch, pink, planetary output

1шт.

1

A156833

RING, SNAP

RING retaining, 0.101 inch, yellow, planetary output

1шт.

1

A156834

RING, SNAP

RING retaining, 0.107 inch, red, planetary output

1шт.

1

A156835

RING, SNAP

RING retaining, 0.113 inch, dark green, planetary output

1шт.

1

A156836

RING, SNAP

RING retaining, 0.119 inch, white, planetary output

1шт.

1

A156837

RING, SNAP

RING retaining, 0.125 inch, blue, planetary output

1шт.

1

A156869

RING, SNAP

RING retaining, 0.137 inch, light green, planetary output

1шт.

2

52843V

BEARING ASSY,57.15mm ID x 22.05mm W

CONE bearing, shaft, planetary output

2шт.

5

A63115

SNAP RING,#255, Ext

Ring, Snap, , planetary output shaft #255, Ext

4шт.

6

A168982

SCREW

GEAR driver, 4th, planetary output

1шт.

7

A156831

GEAR

drive, 2nd and 3rd, Replaces A182205, planetary output

1шт.

8

659459R1

BEARING, CUP

CUP bearing, shaft, planetary output

2шт.

10

A152396

SHAFT

power output, planetary

1шт.

11

A168983

SHAFT

PLANETARY OUTPUT SHAFT ASSEMBLY, Replaces A182225, Includes Ref. 12

1шт.

12

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

input shaft support, planetary output

1шт.

18

A168038

NUT

adjusting, countershaft

1шт.

19

A168585

SPACER

bearing to nut, countershaft

1шт.

21

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE bearing, countershaft

1шт.

22

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP bearing, countershaft

1шт.

23

A31253

RING, SNAP

RING retaining, countershaft

1шт.

24

A168435

GEAR-SET

SET Gear, pinion and spiral bevel, matched set, countershaft

1шт.

25

A32413

SNAP RING,#212, 1.997", Ext

RING retaining, countershaft

1шт.

26

A150536

COLLAR

pinion locating, countershaft

1шт.

27

A182354

GEAR

DRIVEN GEAR ASSEMBLY, 4th, Includes bushing, Replaces A157414, countershaft

1шт.

28

A150537

SHIM

countershaft, 0.002 inch

1шт.

28

A150538

SHIM

countershaft, 0.006 inch

1шт.

28

A150539

SHIM

countershaft, 0.010 inch

1шт.

29

A150540

WASHER

backup, countershaft

1шт.

33

A140028

HUB

shaft, splined pinion, 3rd and 4th, countershaft

1шт.

34

A182314

GEAR

DRIVEN GEAR ASSEMBLY, 3rd, Includes bushing, countershaft

1шт.

36

A182312

GEAR

DRIVEN GEAR ASSEMBLY, 2nd, Includes bushing, countershaft

1шт.

38

A140024

HUB

shaft, splined pinion, 1st and 2nd, countershaft

1шт.

39

A179968

GEAR

DRIVEN GEAR ASSEMBLY, 1st, Includes bushing, Replaces A157420, countershaft

1шт.

40

A144342

WASHER,70.36mm ID x 89.41mm OD x 0.84mm Thk

gear thrust, countershaft

3шт.

41

A144341

WASHER

gear thrust, countershaft

2шт.

42

A144343

WASHER

gear thrust, countershaft

1шт.

43

A63089

ROLLER BEARING,76.2mm ID x 46.11mm W

CONE bearing, countershaft

1шт.

44

A63088

ROLLER BEARING,171.47mm OD x 31.75mm W

CUP bearing, countershaft

1шт.

45

A157410

COLLAR

sliding, Replaces A182210, countershaft

2шт.

46

A43109

SOCKET/RECEPTACLE

SOCKET countershaft nut, service tool

1шт.

47

R30570

SNAP RING,3.75", Int, #375

RING retaining, 2.77 mm, countershaft

4шт.

48

A182776

RING, SNAP

RING retaining, 2.23 mm, color code yellow, countershaft

4шт.

49

A168768

OIL SEAL

RING retaining, 0.095 inch, color code pink, countershaft

3шт.

50

A156837

RING, SNAP

RING retaining, 0.125 inch, color code blue, countershaft

1шт.

Выбрано товаров: 46
