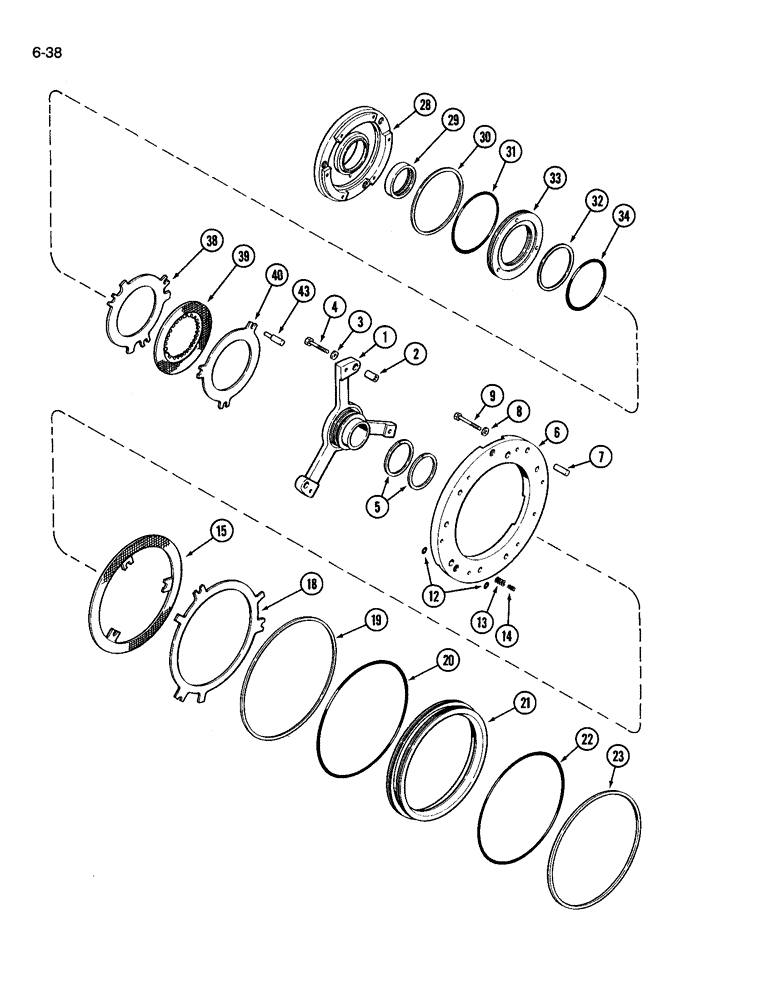

Запчасти Case IH 3594 (6-038) - TRANSMISSION, DUAL RANGE (C5) AND (C6) CLUTCHES (06) - POWER TRAIN

1

A156915

HUB

oil distributor

1шт.

211-10

BALL

11/32 inch, grade 200, chrome alloy steel

3шт.

The ball is sold seperate from A156915.

1шт.

2

A156917

DOWEL

ring

3шт.

3

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

hardened

3шт.

4

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3шт.

5

A152204

RING

seal

2шт.

Part of Seal Kit P/N A49395

1шт.

6

A156918

RING

PLATE ring, C6 reaction

1шт.

7

A65555

PIN

DOWEL

3шт.

8

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

hardened

6шт.

9

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

6шт.

12

A50651

SEALING RING

RING seal

7шт.

Part of Seal Kit P/N A49395

1шт.

13

A62606

SPRING

return, C6 clutch

3шт.

14

A62607

SPRING

return, C6 clutch

3шт.

15

A156955

LARGE PLATE

PLATE friction, C6 clutch

1шт.

18

A144577

LARGE PLATE

PLATE steel, C6 clutch

1шт.

19

A144580

RING

sealing, C6 piston, large OD

1шт.

Part of Seal Kit P/N A49395

1шт.

20

A150943

O-RING,11.09" ID x 0.107"

C6 piston, large OD

1шт.

Part of Seal Kit P/N A49395

1шт.

21

A144576

PISTON

C6 clutch

1шт.

22

A150945

O-RING,10.465" ID x 0.107"

C6 piston, small OD

1шт.

Part of Seal Kit P/N A49395

1шт.

23

A144581

SEAL

RING sealing, C6 piston, small OD

1шт.

Part of Seal Kit P/N A49395

1шт.

28

A153417

CARRIER

C5 piston

1шт.

29

A67531

NEEDLE BEARING,Needle, 69.85mm ID x 79.38mm OD x 15.88mm W

BEARING needle, roller

1шт.

30

A144774

SEAL

RING sealing, C5 piston, external

1шт.

Part of Seal Kit P/N A49395

1шт.

31

A150944

O-RING,6.09" ID x 0.107"

C5 piston, external

1шт.

Part of Seal Kit P/N A49395

1шт.

32

A144775

SEAL

RING sealing, C5 piston, internal

1шт.

Part of Seal Kit, P/N A49395

1шт.

33

A179542

PISTON

C5 clutch

1шт.

34

A150946

O-RING,4.306" ID x 0.107"

C5 piston, internal

1шт.

Part of Seal Kit P/N A49395

1шт.

38

A144799

LARGE PLATE

PLATE steel, C5 clutch

1шт.

39

A153782

LARGE PLATE

PLATE friction, C5 clutch

1шт.

40

A144798

LARGE PLATE

PLATE steel, C5 clutch

1шт.

43

A144855

PIN

C5 reaction

3шт.

A49395

SEAL

KIT Seal, Includes Ref. 5, 12, 19, 20, 22, 23, 30, 31, 32 and 34

1шт.
