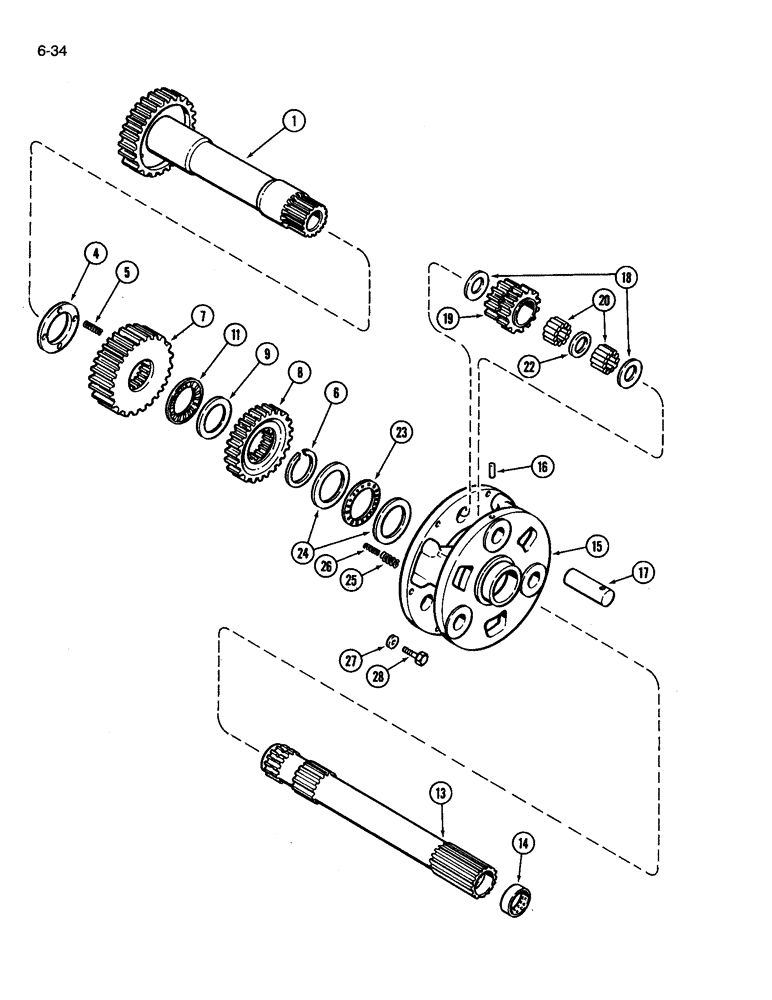

Запчасти Case IH 3594 (6-034) - TRANSMISSION, DUAL RANGE PLANETARY, 24 SPEED TRANSMISSION (06) - POWER TRAIN

1

A179598

SHAFT

planetary input drive

1шт.

4

A154595

RETAINER

gear spring

1шт.

5

A144795

SPRING

gear retainer

4шт.

6

A144790

SNAP RING,#200, 1.880", Ext

RING retaining

1шт.

7

A153779

GEAR

sun, output

1шт.

8

A153778

GEAR

sun, input

1шт.

9

H147785

BEARING WASHER

WASHER thrust

1шт.

11

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING needle, thrust, flanged

1шт.

13

A179597

SHAFT

INPUT DRIVE SHAFT ASSEMBLY, dual range, Includes Ref. 14

1шт.

14

A144797

BUSHING

input shaft

1шт.

15

A153781

CARRIER

planetary

1шт.

16

135-339

GROOVED PIN,3/16" x 3/4", Type F

Pin, Grooved, 3/16" x 3/4", Type F

3шт.

17

A155278

PIN,26.5mm OD x 71.12mm L

planet gear

3шт.

18

A153010

WASHER,26.57mm ID x 44.45mm OD x 0.81mm Thk

thrust

6шт.

19

A153780

GEAR

cluster

3шт.

20

A144856

ROLLER

BEARING roller, planet gear

108шт.

22

A153783

SPACER

roller bearing

3шт.

23

A66478

THRUST BEARING,2.007" ID x 2.74" OD x 0.0781"

BEARING thrust

1шт.

24

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

thrust, bearing

2шт.

25

A62606

SPRING

return, C5 clutch

3шт.

26

A62607

SPRING

return, C5 clutch

3шт.

27

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

hardened

6шт.

28

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

hex, 3/8 NC x 1-1/4 inch, grade 8

6шт.
