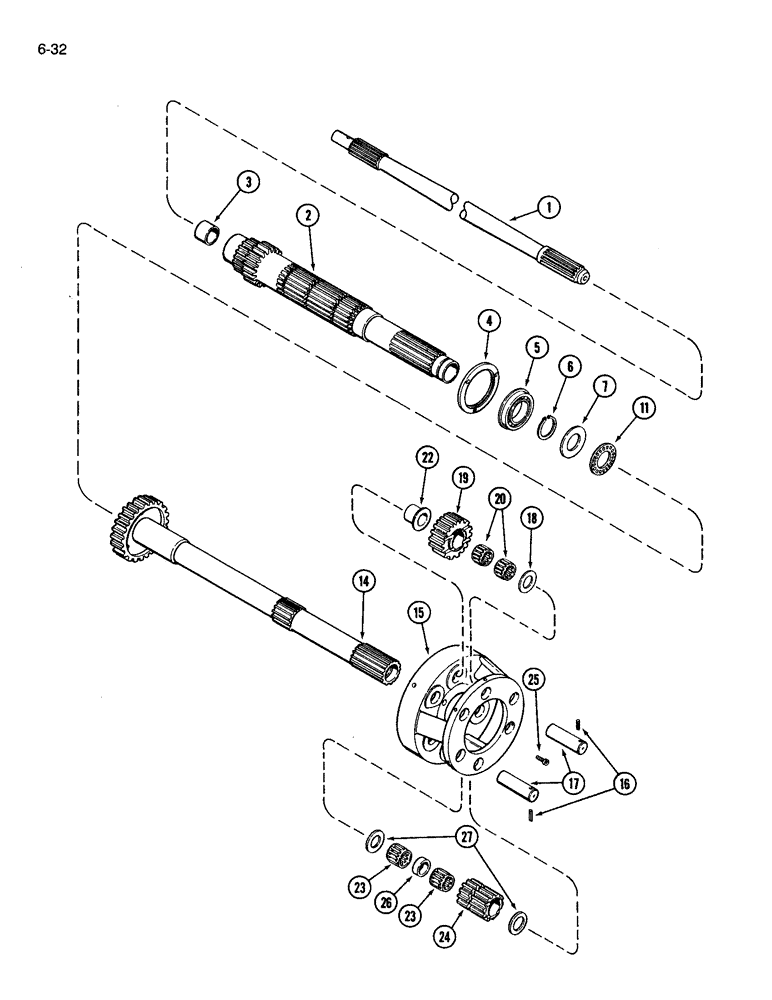

Запчасти Case IH 3594 (6-032) - TRANSMISSION, PLANETARY, 12 SPEED TRANSMISSION (06) - POWER TRAIN

1

A152396

SHAFT

PTO drive, front

1шт.

2

A168983

SHAFT

PLANETARY OUTPUT SHAFT ASSEMBLY, Replaces A182225, Includes Ref. 3

1шт.

3

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

input shaft support

1шт.

4

A146603

RETAINER

carrier bearing

1шт.

5

A63109

BEARING, BALL

BEARING ball, with retaining ring

1шт.

6

A7611

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

7

A54021

WASHER

RACE thrust, 1-3/4 x 2-1/2 x 3/32 inch, 44 x 64 x 2 mm

1шт.

11

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING needle, thrust, flanged

1шт.

14

A179599

SHAFT

planetary input drive

1шт.

15

A168196

CARRIER

planetary

1шт.

16

38-31212

PIN,3/16" x 3/4", Coiled

6шт.

17

A168912

PIN,25.4mm OD x 105.28mm L

planetary gear

6шт.

18

A150410

SPACER

RACE thrust, planetary gear

3шт.

19

A179099

GEAR

planetary, short, Replaces A148352

3шт.

20

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING needle, 3/4 inch wide

6шт.

22

A151046

SPACER

flanged, short planetary gear

3шт.

23

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING needle, 1-1/4 inch wide

6шт.

24

A179196

GEAR

planetary, long, Replaces A148353

3шт.

25

62-32510

HEX SOC SCREW,1/4" - 28 x 3/8"

SCREW hex socket head, 1/4 NF x 5/8 inch

3шт.

26

A146606

SPACER

bearing

3шт.

27

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE thrust, planetary gear

6шт.
