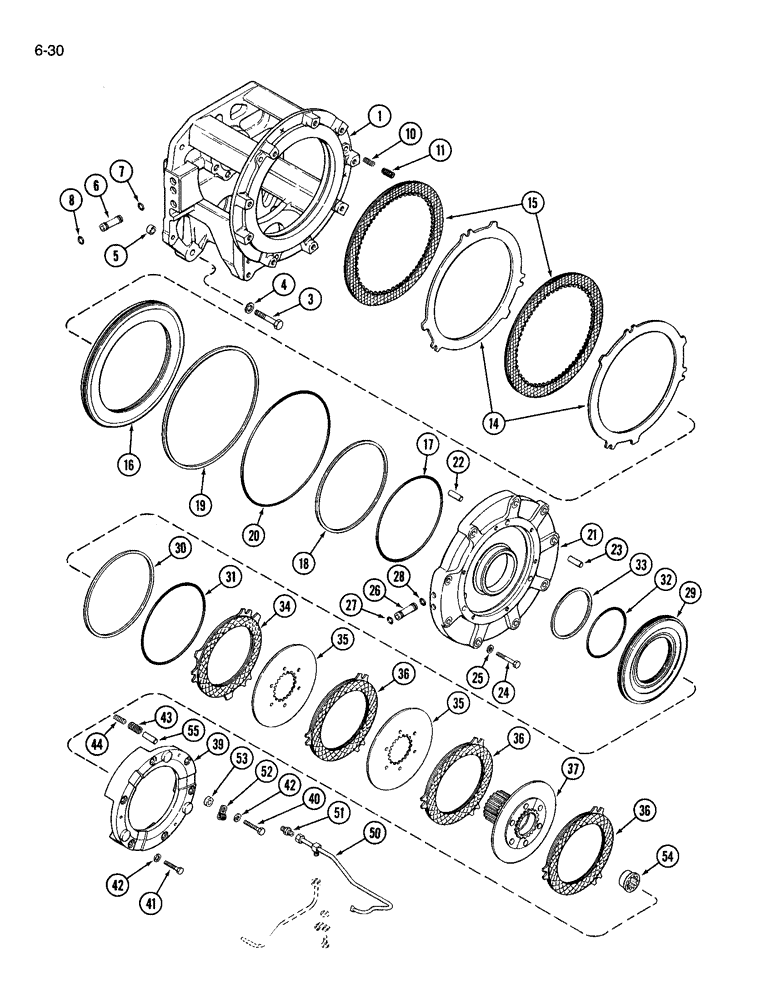

Запчасти Case IH 3594 (6-030) - TRANSMISSION, (C1) AND (C4) CLUTCHES (06) - POWER TRAIN

1

A168287

CARRIER

POWER SHIFT CARRIER ASSEMBLY

1шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

3

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

3шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

A188330

SLEEVE

dowel

2шт.

6

A152371

TUBE

oil, C2 and C3 clutch, 2.125"

3шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

Part of Seal Kit P/N A46286

1шт.

8

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

3шт.

10

A142613

SPRING

return, C4 clutch

3шт.

11

A62606

SPRING

return, C4 clutch

3шт.

14

A58056

PLATE

steel, C4 clutch

2шт.

15

1981280C1

PLATE

friction, C4 clutch, Replaces A67128

2шт.

16

A146671

PISTON

C4 clutch

1шт.

17

A150752

O-RING,9.206" ID x 0.107" OD

9-5/32 ID x 3/32 inch, C4 piston, internal

1шт.

Part of Seal Kit P/N A46286

1шт.

18

A146681

SEAL

sealing, 8-31/32 ID x 7/64 inch, C4 piston, internal

1шт.

Part of Seal Kit P/N A46286

1шт.

19

A146680

RING

sealing, 12-9/16 OD x 7/64 inch, C4 piston, external

1шт.

Part of Seal Kit P/N A46286

1шт.

20

A150751

O-RING,12.09" ID x 0.107"

12-1/16 OD x 3/32 inch, C4 piston, external

1шт.

Part of Seal Kit P/N A46286

1шт.

21

A67163

CARRIER

PISTON CARRIER ASSEMBLY, C1 and C2, Includes Ref. 22 and 23

1шт.

22

A65555

PIN

clutch reaction plate, C4 clutch, 1-1/2 inch

3шт.

23

A75102

PIN,12.45mm OD x 50.8mm L

clutch reaction plate, C1 clutch, 2 inch

3шт.

24

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

9шт.

25

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

hardened

9шт.

26

A152371

TUBE

oil, C1 and C4 clutch, 2.125"

2шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

Part of Seal Kit P/N A46286

1шт.

29

A146670

PISTON

C1 clutch

1шт.

30

A146682

RING

SEAL sealing, 8-9/32 OD x 7/64 inch, C1 piston, external

1шт.

Part of Seal Kit P/N A46286

1шт.

31

A150753

O-RING,7.84" ID x 0.107"

7-7/8 OD x 3/32 inch, C1 piston, external

1шт.

Part of Seal Kit P/N A46286

1шт.

32

A150754

O-RING,4.718" ID x 0.107"

4-11/16 ID x 3/32 inch, C1 piston, internal

1шт.

Part of Seal Kit P/N A46286

1шт.

33

A146683

RING

sealing, 4-15/32 ID x 7/64 inch, C1 piston, internal

1шт.

Part of Seal Kit P/N A46286

1шт.

34

A168484

PLATE

friction, C1 clutch, with tabs

1шт.

35

A182507

PLATE

steel, C1 clutch, Replaces A152112

2шт.

36

A168483

PLATE

friction, C1 clutch, without tabs

3шт.

37

A182523

GEAR

SUN REACTION PLATE ASSEMBLY, C1 clutch, Replaces A168203

1шт.

39

A156921

PLATE

C1 reaction

1шт.

40

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

1шт.

41

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

5шт.

42

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

hardened

6шт.

43

A142612

SPRING

return, C1 clutch

3шт.

44

A142613

SPRING

return, C1 clutch

3шт.

50

A150622

TUBE

lubrication, C1 clutch, 12 speed transmission

1шт.

51

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER straight, 9/16-18 flare x 1/4 inch PT

1шт.

52

49845

CLAMP

tube

1шт.

53

A136208

SPACER

tube clamp

1шт.

54

A76482

BUSHING,20T

input shaft, front

1шт.

55

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

3шт.

A46286

SEAL KIT,Power Shift

KIT Seal, Includes Ref. 7, 17 - 20, 28 and 30 - 33

1шт.
