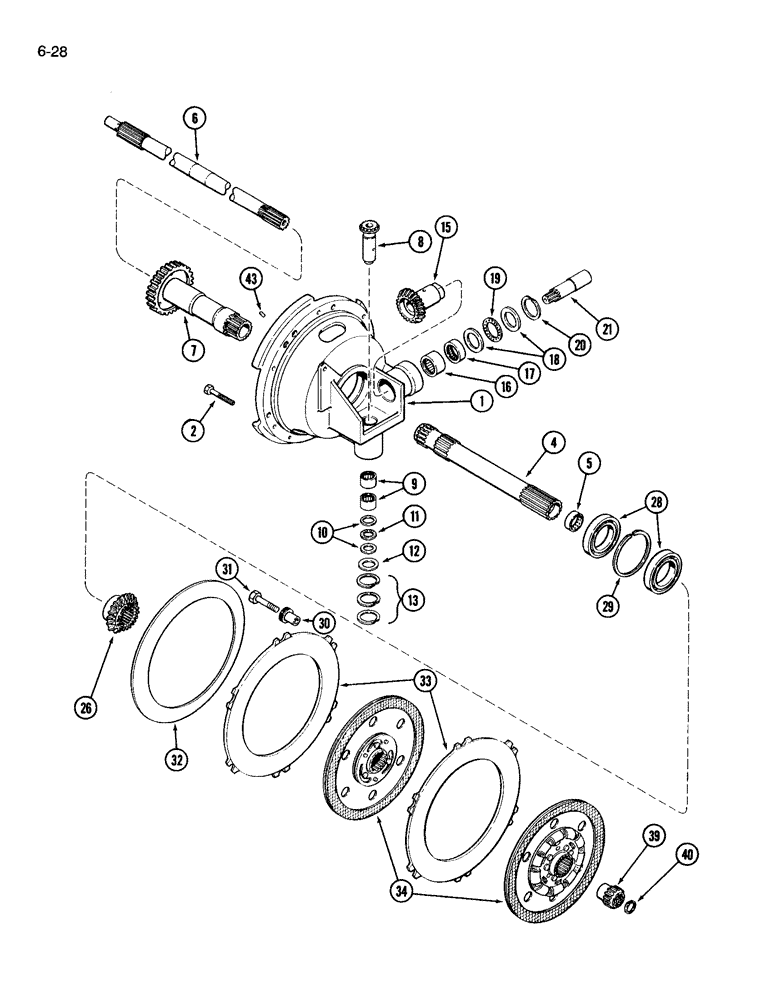

Запчасти Case IH 3594 (6-028) - TORQUE LIMITER AND PUMP DRIVE, 24 SPEED TRANMISSION (06) - POWER TRAIN

1

A156942

HOUSING

HOUSING pump drive

1шт.

2

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

BOLT, Hex, 3/8"-16 x 2 3/4", G8

6шт.

4

A179597

SHAFT

INPUT DRIVE SHAFT ASSEMBLY, dual range, Includes Ref. 5

1шт.

5

A144797

BUSHING

BUSHING drive shaft

1шт.

6

A144806

DRIVE SHAFT

SHAFT PTO drive

1шт.

7

A179598

SHAFT

SHAFT planetary input drive

1шт.

8

A63074

GEAR

GEAR bevel, charging pump

1шт.

9

A63065

NEEDLE BEARING,Needle, 28.57mm ID x 34.92mm OD x 19.05mm W

BEARING needle

2шт.

10

A63075

THRUST BEARING,0.887" ID x 1.417" OD x 0.063"

RACE thrust bearing

2шт.

11

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING needle thrust

1шт.

12

A63076

WASHER

RACE thrust bearing

1шт.

13

A64081

RING

RING retaining, internal 0.094 inch

1шт.

13

A64082

RING

RING retaining, internal 0.084 inch

1шт.

13

A64083

RING

RING retaining, internal 0.074 inch

1шт.

15

A144805

GEAR

GEAR bevel, dual pump

1шт.

16

A144861

NEEDLE BEARING

BEARING roller

1шт.

17

A144862

NEEDLE BEARING,1.625" ID x 2.0005" OD x 0.625"

BEARING roller

1шт.

18

A50673

BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk

RACE thrust bearing

2шт.

19

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING needle thrust

1шт.

20

A144792

RING

RING retaining, internal 0.094 inch

1шт.

20

A144793

RING

RING retaining, internal 0.084 inch

1шт.

20

A144794

RING

RING retaining, internal 0.074 inch

1шт.

21

A140942

COUPLING, BREAK AWAY

COUPLING pump drive

1шт.

26

A151827

GEAR

GEAR pump drive

1шт.

28

A152844

BALL BEARING,64.99mm ID x 100mm OD x 18mm W

BEARING ball

2шт.

29

A31234

RING

RING retaining

1шт.

30

A155865

RETAINER

RETAINER torque limiter spring

6шт.

31

326-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

BOLT, Hex, 1/2"-13 x 2 1/2", G8

6шт.

32

A64370

SPRING

SPRING belleville yellow color code

1шт.

33

A155859

PLATE

PLATE pressure

2шт.

34

1981314C1

TORQUE LIMITER,301.75mm OD

PLATE torque limiter, Replaces A157381

2шт.

34

1981314C1R

REMAN-CLUTCH DISC

Clutch Plate

2шт.

34

1981314C1C

CORE-CLUTCH DISC

Return Part Number

2шт.

39

A144804

SLEEVE

SLEEVE drive shaft, PTO

1шт.

40

A22496

RING, SNAP

RING SNAP RING retaining

1шт.

211-1012

BALL,3/8" Dia

BALL, 3/8 inch, grade 200, chrome alloy steel, not shown

1шт.

211-207

BALL

BALL, 9/32 inch, grade 200, chrome alloy steel, not shown

2шт.

43

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.
