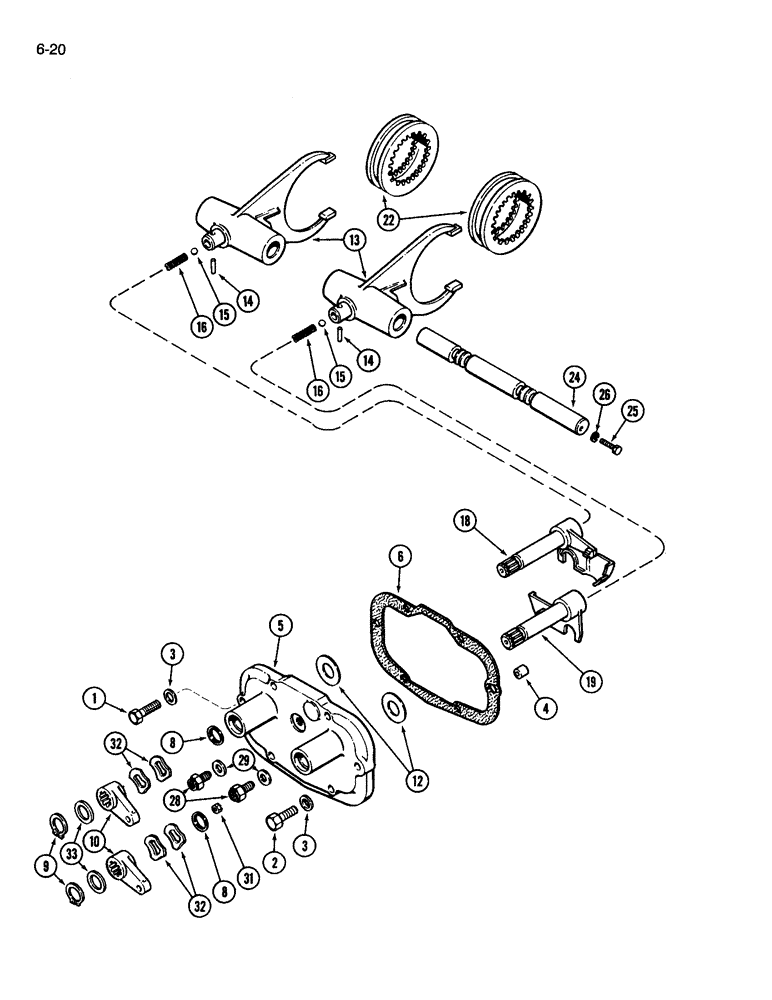

Запчасти Case IH 3594 (6-020) - GEAR SHIFT MECHANISM (06) - POWER TRAIN

1

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

5шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

3

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

6шт.

4

A63167

SLEEVE

dowel

1шт.

5

A150365

HOUSING

shifter

1шт.

6

1981249C1

GASKET

housing, Replaces A64067

1шт.

8

A76307

OIL SEAL,25.4mm ID x 31.9mm OD x 4.75mm Thk

shifter shaft

2шт.

9

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

10

A64936

LEVER

splined, shift control

2шт.

12

A65121

SHIM,.005" Thk

Shifter shaft .005" Thk

1шт.

13

A136728

FORK

gear shift

2шт.

14

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, 1/4" x 7/8", Slotted

2шт.

15

211-212

BALL

7/16 inch, grade 200, chrome alloy steel

2шт.

16

A26530

SPRING

detent

2шт.

18

A153005

LEVER

shift, 1st and 2nd

1шт.

19

A153006

LEVER

shift, 3rd and 4th

1шт.

22

A157410

COLLAR

sliding

2шт.

24

A66753

RAIL

shifter

1шт.

25

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

hex, 5/16 NC x 1-3/8 inch

1шт.

26

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

A160237

SWITCH

- neutral start

2шт.

29

G49402

SHIM,.010" Thk

Mounting .010" Thk

1шт.

31

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

hex, with external tooth lock washer, No. 8 NC

4шт.

32

A63169

SPRING

WASHER spring wave

4шт.

33

G46081

BEARING WASHER

WASHER spacer

2шт.
