Запчасти Case IH 3588 (08-05) - ELECTRICAL, ENGINE HARNESS AND ALTERNATOR (06) - ELECTRICAL

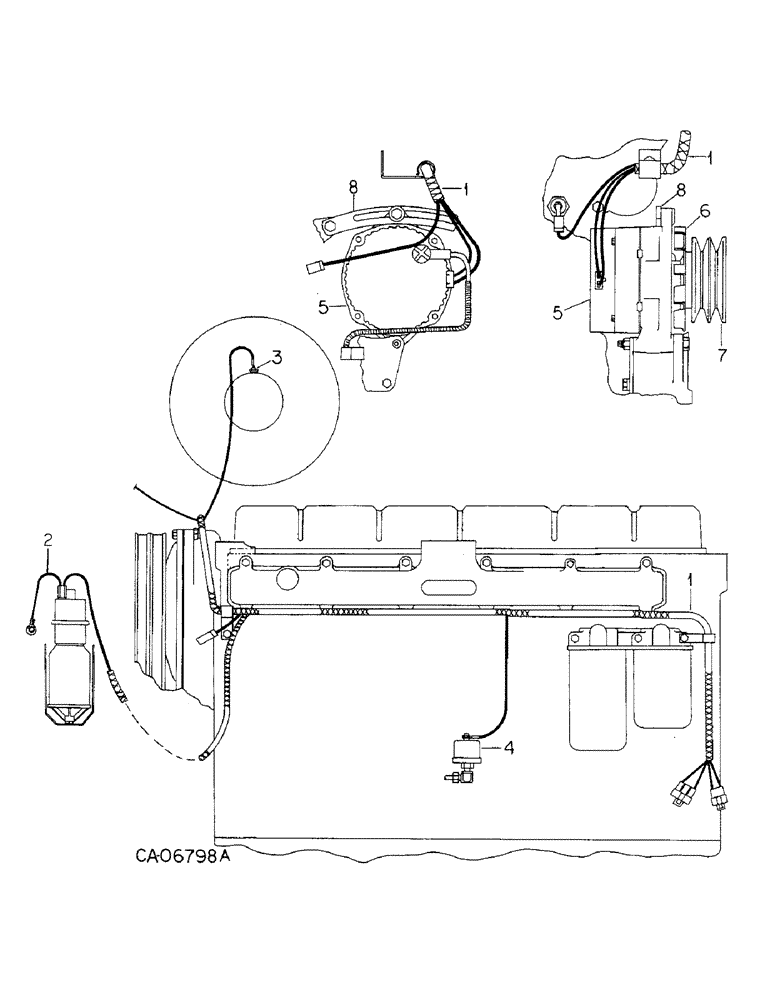

Схема запчастей Case IH 3588 - (08-05) - ELECTRICAL, ENGINE HARNESS AND ALTERNATOR (06) - ELECTRICAL
3
5
8
1
7
6
5
1
2
8
4

Артикул

Название

Примечание

Количество

1

143408C91

PACKAGE

PACKAGE, service harness and cable extension, Replaces 132534C92, Consists of

1шт.

147039C1

SPARE PART CABLE ASSY, ether canister extension

1шт.

NSS

NOT SOLD SEPARAT

HARNESS ASSY, engine

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot, furnished as part of 132534C92

1шт.

2

405227R1

CABLE

CABLE ASSY, ether, Serial Range: solenoid-ground

1шт.

3

3224405R91

RESTRICTION SWITCH

SWITCH ASSY, electric air cleaner vaccuum

1шт.

4

130707C3

SENDER UNIT

SENDER, engine oil pressure

1шт.

5

1103160

ALTERNATOR

ALTERNATOR-GENERATOR W/REGULATOR, 72 amp, Replaces 1102922, non metric

1шт.

5

1103184

ALTERNATOR

ALTERNATOR-GENERATOR W/REGULATOR, 72 ampere, metric, See alternator-generator this group for list of components

1шт.

5

131328C91

ALTERNATOR

ALTERNATOR-GENERATOR W/REGULATOR, 100 amp, non metric, order 146472C91 and attaching hardware, See alternator-generator this group for list of components

1шт.

5

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

5

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

BOLT, 3/8 x 3-1/2 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

1шт.

121743

CHAIN,#12 - 24

no. 12 mach screw type 1

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

5

146472C91

GENERATOR

ALTERNATOR-GENERATOR, 100 amp metric, See alternator-generator this group for list of components

1шт.

931715R1

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

BOLT, M10 x 90 pln class 8.8

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc p/t class 10

1шт.

30281R1

NUT,M6, Cl 10

NUT, M6 class 10

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock

1шт.

6

221425R1

FAN

FAN, alternator-generator, w/auxiliary lighting attachment

1шт.

7

384645R1

PULLEY

PULLEY, alternator-generator, Used with 72 amp alternator

1шт.

7

131042C1

PULLEY

PULLEY, alternator-generator, Used with 100 amp alternator, w/auxiliary lighting attachment

1шт.

7

537070R1

PULLEY

PULLEY, alternator-generator, Used with air conditioning, w/o auxiliary lighting attachment

1шт.

8

532418R1

BRACE

BRACE, alternator-generator

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

BOLT, 5/16 x 1 type 5

1шт.

557265R1

WASHER

WASHER, .344 x 1.000 x .105 pln

1шт.

Выбрано товаров: 31
