Артикул
Название
Примечание
Количество

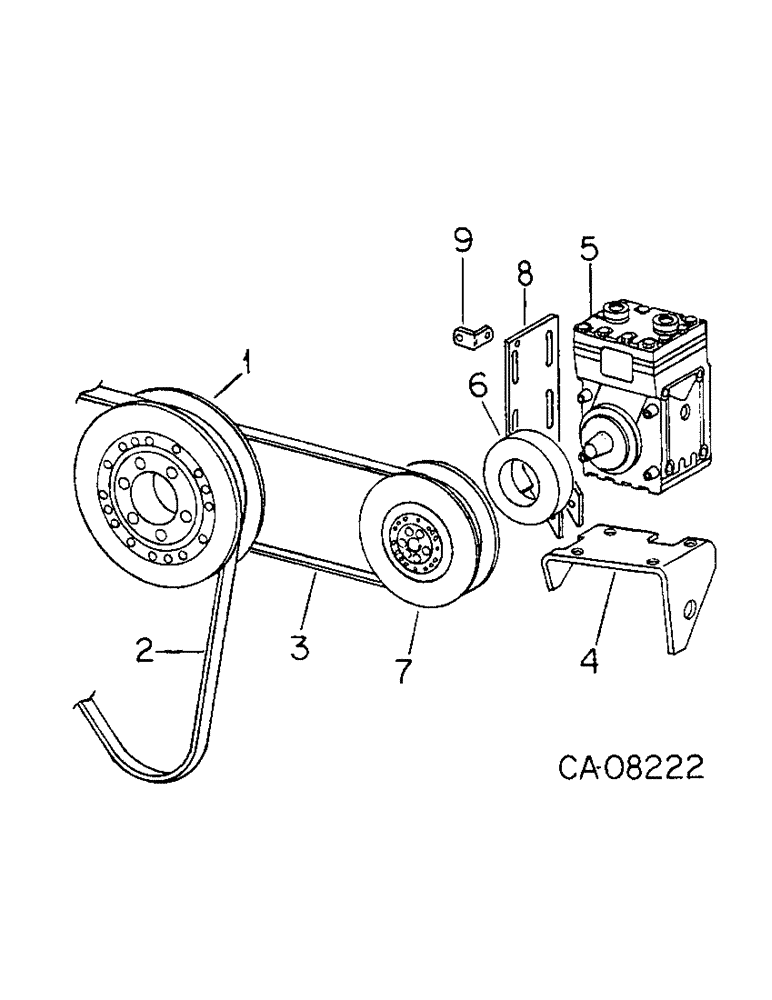

1
537071R1
PULLEY
PULLEY, fan water pump and compressor, 3 belt grooves
1шт.
2
537072R91
SET OF BELTS
V-matched dual, Fan drive
1шт.
4
537073R5
BRACKET
BRACKET ASSY, compressor mtg
1шт.
26257
POINT
SCREW, 3/8 x 3 znp sq/hd c/pt set
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
NUT, Jam, 3/8"-16, G5
1шт.
21741R1
WASHER
WASHER, .406 x .875 x .105
5шт.
180138
BOLT,Hex, 3/8" - 16 x 3", Gr 5
BOLT, 3/8 x 3 type 5
1шт.
189304
BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5
BOLT, 3/8 x 3-1/4 type 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
120377
NUT,3/8" - 16, Gr 5
NUT, 3/8"-16, G5
3шт.
5
118250C91
COMPRESSOR
COMPRESSOR ASSY, air conditioner w/screen, refer to compressor listing in this group for components
1шт.
5
1924006C2
REMAN-A/C COMPRESSOR
Reman For New PN 118250C91
1шт.
5
1924007C1
CORE-A/C COMPRESSOR
Return Number
1шт.
19571R1
BOLT,Hex, 3/8"-16 x 1 1/8", G2
BOLT, 3/8 x 1-1/8 type 1
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
6
70833C1
SEAL
SEAL, foam dust
1шт.
7
143405C91
PULLEY
CLUTCH ASSY, compressor, 7.00 in., serviceable items are
1шт.
143406C1
PULLEY ASSY.
PULLEY
1шт.
28203R1
BOLT,Hex, 5/16" - 24 x 1 1/4", Gr 8
BOLT
1шт.
21496R1
WASHER
WASHER
1шт.
143407R1
COIL
1шт.
161108C1
BOLT,Hex Serr, 1/4" - 20 x 1/2"
BOLT
1шт.
221438H1
BEARING ASSY,29.99mm ID x 62mm OD x 26.99mm W
BEARING
4шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 type 1
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
7
CLUTCH ASSY, compressor, 7.00 in., service parts for 111631c91 are
1шт.
117820C1
PULLEY
PULLEY
1шт.
117822C1
COIL
COIL
1шт.
221438H1
BEARING ASSY,29.99mm ID x 62mm OD x 26.99mm W
BEARING
4шт.
8
NOT USED THIS APPLICATION
1шт.
9
NOT USED THIS APPLICATION
1шт.
Выбрано товаров: 33
