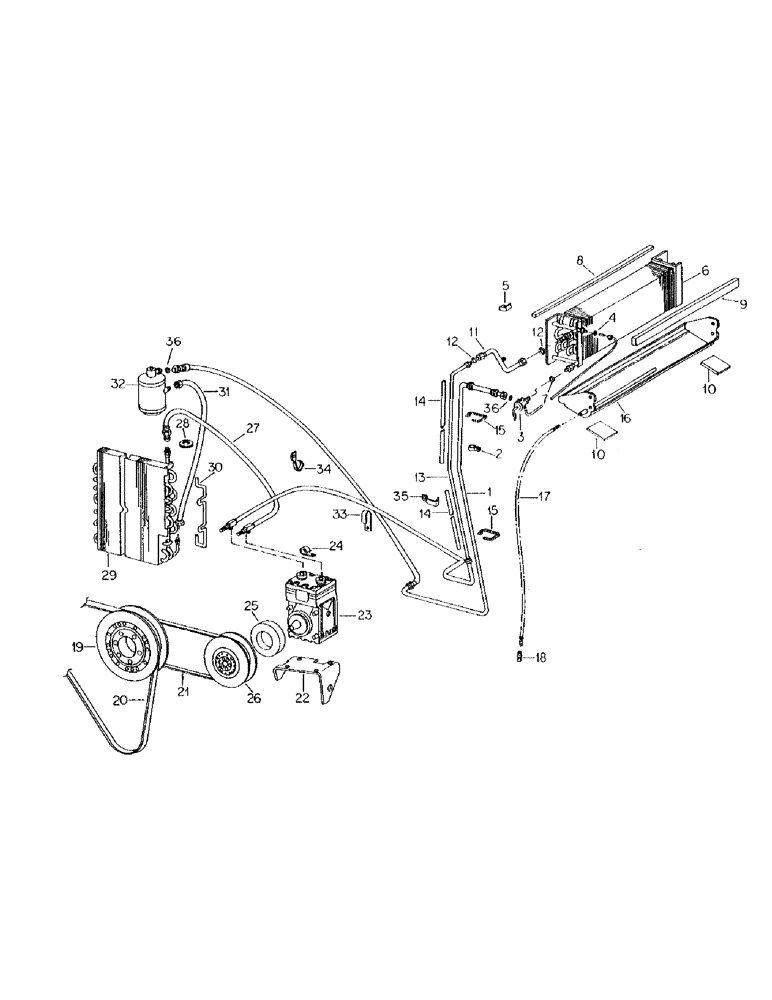

Запчасти Case IH 3588 (13-34) - SUPERSTRUCTURE, AIR CONDITIONER, CAB WITH SERIAL NO. 107806 AND BELOW (05) - SUPERSTRUCTURE

1

118414C2

TUBE

TUBE ASSY, liquid, hose

1шт.

2

111610C1

CLAMP

CLAMP, plastic hose

1шт.

*

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, #10 x 1/2 polyseal tap

2шт.

*

118676

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

WASHER, .219 x .500 x .036 phc

2шт.

*

118461C1

COVER

COVER, molded rubber

2шт.

3

118305C3

VALVE

VALVE, expansion

1шт.

4

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

O-RING, 1/4 OD tube

1шт.

5

118444C1

CLAMP

CLAMP, expansion valve bulb

1шт.

6

118315C1

EVAPORATOR

CORE, evaporator

1шт.

*

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, #10 x 3/8 polyseal tap

4шт.

7

375271R1

O-RING,0.426" ID x 0.07" Width

O-RING, 1/2 OD tube

1шт.

8

117817C1

SEALING STRIP

STRIP, evaporator core seal

1шт.

9

117819C2

SEAL

SEAL, evaporator core

1шт.

10

118159C1

SEAL

SEAL, drain pan

2шт.

11

118324C1

TUBE,5 mm OD, 218.95 mm Length

TUBE ASSY, evaporator discharge

1шт.

12

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, 5/8 OD tube

4шт.

13

118415C3

A/C HOSE

TUBE ASSY, suction

1шт.

14

143007C1

INSULATOR

INSULATION, suction tube

1шт.

15

111619C1

STRAP

STRAP, adjustable

3шт.

16

111304C1

PAN ASSY.

PAN, evaporator drain

1шт.

*

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, #10 x 3/8 polyseal tap

4шт.

17

HOSE, evaporator drain, Use 75 inches from bulk roll marked 198091C1

2шт.

18

109239C2

CHECK VALVE

VALVE, CHECK, Evaporator drain

2шт.

19

537071R1

PULLEY

PULLEY, fan, water pump and compressor, 3 belt grooves

1шт.

20

537072R91

SET OF BELTS

V-matched dual, Fan drive

1шт.

21

874097C1

V-BELT,39.50" L

Compressor drive

1шт.

22

537073R5

BRACKET

BRACKET ASSY, compressor mtg

1шт.

*

26257R1

SET SCREW

SCREW, 3/8 x 3 znp sq/hd c/pt set

1шт.

*

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

*

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

*

21741R1

WASHER

WASHER, .406 x .875 x .105

5шт.

*

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, 3/8 x 3 type 5

1шт.

*

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

BOLT, 3/8 x 3-1/4 type 5

2шт.

*

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

*

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

23

118250C91

COMPRESSOR

COMPRESSOR ASSY, air conditioner, See detail list

1шт.

23

1924006C2

REMAN-A/C COMPRESSOR

Reman For New PN 118250C91

1шт.

23

1924007C1

CORE-A/C COMPRESSOR

Return Number

1шт.

*

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

*

19571R1

BOLT,Hex, 3/8"-16 x 1 1/8", G2

BOLT, 3/8 x 1-1/8 type 1

4шт.

24

366460R1

CABLE CLIP

CLIP, wire

4шт.

25

70833C1

SEAL

SEAL, foam dust

1шт.

26

143405C91

PULLEY

CLUTCH ASSY, compressor, 7.00 in., Replaces 111631C91, only serviceable items are

1шт.

*

143406C1

PULLEY ASSY.

PULLEY

1шт.

*

28203R1

BOLT,Hex, 5/16" - 24 x 1 1/4", Gr 8

BOLT

1шт.

*

21496R1

WASHER

WASHER

1шт.

*

143407C1

COIL ASSY.

COIL

1шт.

1611081C

BOLT

1шт.

*

221438H1

BEARING ASSY,29.99mm ID x 62mm OD x 26.99mm W

BEARING

4шт.

*

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

2шт.

*

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

26

CLUTCH ASSY, compressor, 7.00 in., service parts for 111631C91 are

1шт.

*

117820C1

PULLEY

PULLEY

1шт.

*

117822C1

COIL

COIL

1шт.

*

221438H1

BEARING ASSY,29.99mm ID x 62mm OD x 26.99mm W

BEARING

1шт.

27

118417C1

HOSE

HOSE ASSY, compressor discharge

1шт.

28

19351R1

GROMMET,1" ID x 1 5/8" x .125", Diag Cut

GROMMET, 1.0 inch ID

1шт.

29

118316C2

CONDENSER

CONDENSER, core

1шт.

*

24497R1

WASHER

WASHER, .344 x 1.250 x .105 znd

1шт.

*

142745

NUT, WING

NUT, 5/16 wing

1шт.

30

127361C2

ROD

HINGE, condenser

1шт.

*

938117R1

NUT

NUT, 5/16-18 flange lock

2шт.

31

118416C1

A/C HOSE

HOSE ASSY, condenser liquid

1шт.

32

118418C1

AIR CLEANER

RECEIVER-DRYER

1шт.

*

118304C2

RESERVOIR

SPARE PART BOLT, 1/4 x 1-1/4 type 1

1шт.

*

118304C2GV

RECEIVER-DRYER

SPARE PART BOLT, 1/4 x 1-1/4 type 1

1шт.

*

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

*

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

1шт.

33

395467R1

NO LONGER SERVICED

CABLE STRAP/Retired CLIP, refrig hose, 3388, Serial Range: -10910

1шт.

33

395467R1

NO LONGER SERVICED

CABLE STRAP/Retired CLIP, refrig hose, 3588, Serial Range: -14208

1шт.

33

395467R1

NO LONGER SERVICED

CABLE STRAP/Retired CLIP, refrig hose, 3788, Serial Range: -11037

1шт.

*

143126C1

STRIP

STRIP, sponge rubber

1шт.

*

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, 3/8 x 3/4 type 5

1шт.

*

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT, 3/8 flange lock

1шт.

33

143389C1

CLAMP

CLAMP, refrig hose, 3388, Start Serial: 10911

1шт.

33

143389C1

CLAMP

CLAMP, refrig hose, 3588, Start Serial: 14209

1шт.

33

143389C1

CLAMP

CLAMP, refrig hose, 3788, Start Serial: 11038

1шт.

34

118246C1

CLAMP

CLAMP, hose

1шт.

35

143325C1

CLAMP

CLAMP, closed tube

1шт.

*

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

1шт.

*

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

359158R1

O-RING,0.301" ID x 0.07" Width

O-RING, -011, 70 Duro, .031" ID x .070" Thk

2шт.

*

143125C1

STRIP

STRIP, sponge rubber

2шт.

*

TAPE, insulation, Use 72 inches from bulk roll marked 118468C1 to wrap ref. nos. 3 and 11

1шт.
