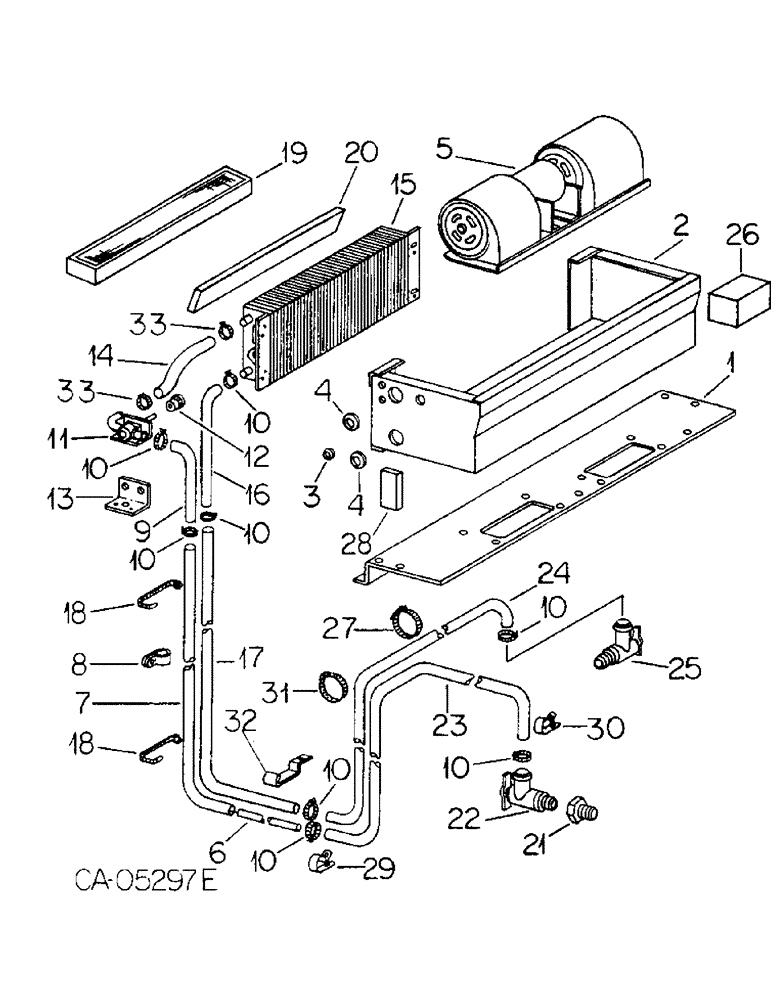

Запчасти Case IH 3588 (13-29) - SUPERSTRUCTURE, PRESSURIZER, HEATER AND FILTERS, CAB WITH SERIAL NO. 107806 AND BELOW (05) - SUPERSTRUCTURE

1

1255639C1

SHEET

blower box mounting, Replaces 142989C1 by also ordering the following parts

1шт.

118520C2

SCREW

7шт.

28439R1

WASHER, .266 x .50 x .036 phc

7шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, #10 x 1/2 polyseal tap

6шт.

2

109106C2

BOX

ASSY, pressurizer blower

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, #10 x 1/2 polyseal tap

7шт.

3

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

rubber, blower cable

1шт.

4

187954

GROMMET,1" ID x 1 3/4" x .062"

rubber, heater hose

2шт.

5

109246C94

BLOWER

ASSY, pressurizer, refer to pressurizer blower this group, For list of components

1шт.

5

143166C91

BLOWER

ASSY, pressurizer, optional w/109246C93, refer to pressurizer blower this group, For list of components

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

8шт.

6

109262C1

HEATER TUBE,.625" OD, 42.38, 7.75, 9" Length

TUBE, heater inlet

1шт.

7

109283C1

TUBE

INSULATION, heater inlet tube

1шт.

8

111610C1

CLAMP

plastic tube

2шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, #10 x 1/2 polyseal tap

2шт.

118031C1

WASHER

D

2шт.

118461C1

COVER

molded rubber, tip

2шт.

9

HOSE, heater inlet, tube to valve, Use 23 in of 5/8 ID heater hose from a roll of hose marked 117724C1

1шт.

10

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 hose

8шт.

11

111221C4

VALVE

heater control

1шт.

12

111282C1

KNOB

heater control

1шт.

13

109134C1

BRACKET

heater control valve

1шт.

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, #10 x 3/8 polyseal tap

2шт.

1276054C1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW, #10 x 1/2 polyseal mach

2шт.

174097

NUT, 10-24 znd reg lock

2шт.

14

HOSE, heater control valve to core, Use 20 in. of 5/8 ID heater hose from a roll of hose marked, 117724C1

1шт.

15

539056R3

CORE

heater

1шт.

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, #10 x 3/8 polyseal tap

4шт.

16

HOSE, heater core outlet, Use 14 in. 5/8 ID heater hose from a roll of hose marked, 117724C1

1шт.

17

1092631C

TUBE, heater outlet

1шт.

18

111619C1

STRAP

adjustable

5шт.

19

143481C92

CAB FILTER

PACKAGE, cab panel filter

1шт.

19

87543798

CAB FILTER

Charcoal cab filter

1шт.

20

109240C1

CAB FILTER

FILTER, air recirculation

1шт.

21

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing pipe

1шт.

22

301803R91

VALVE

ASSY, heater inlet shut-off

1шт.

23

HOSE, heater inlet, Use 134 in. of 5/8 ID heater hose from a roll of hose marked 117724C1

1шт.

24

HOSE, heater outlet, Use 183 in. of 5/8 ID heater hose from a roll of hose marked, 117724C1

1шт.

25

301803R91

VALVE

ASSY, heater outlet shut-off

1шт.

26

NOT USED THIS APPLICATION

1шт.

27

111619C1

STRAP

adjustable tie

2шт.

28

NOT USED THIS APPLICATION

1шт.

29

118246C1

CLAMP

straight, single heater hose inlet

1шт.

30

NOT USED IN THIS APPLICATION

1шт.

31

NOT USED IN THIS APPLICATION

1шт.

32

143326C1

CLAMP

closed tube

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

33

313318R1

HOSE CLAMP,#14, 7/8", Spring

CLAMP, no. 14 hose

2шт.
