Запчасти Case IH 3588 (13-09) - SUPERSTRUCTURE, FENDERS AND OPERATORS PLATFORM (05) - SUPERSTRUCTURE

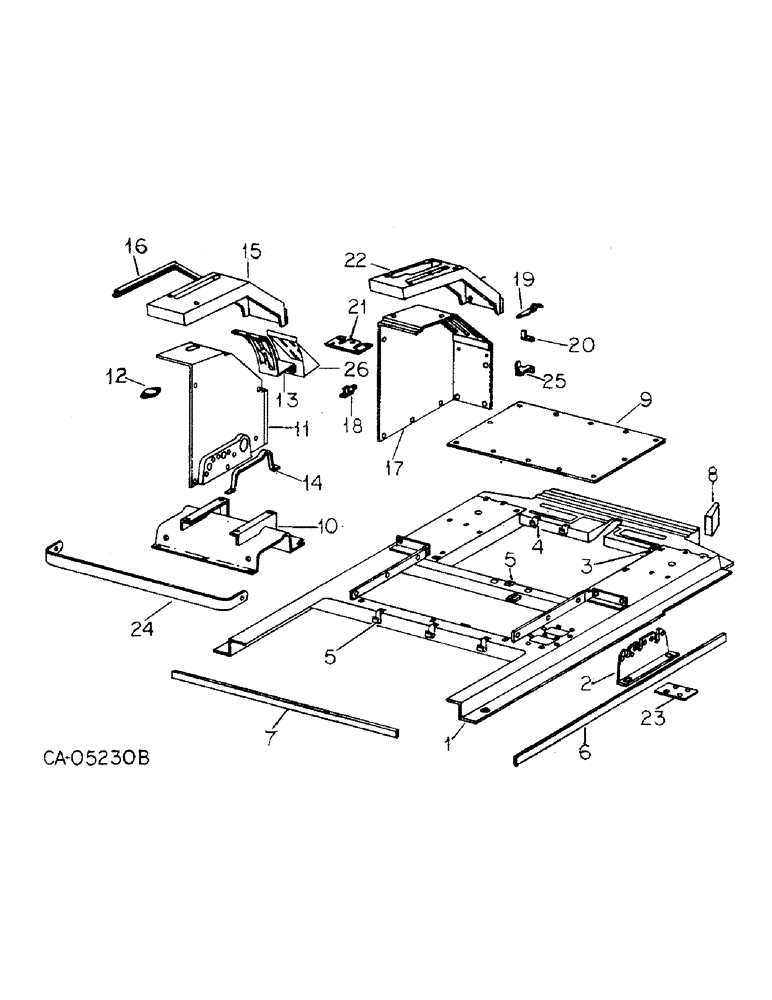

Схема запчастей Case IH 3588 - (13-09) - SUPERSTRUCTURE, FENDERS AND OPERATORS PLATFORM (05) - SUPERSTRUCTURE
5
25
10
17
9
19
26
21
1
11
2
8
13
4
23
6
14
16
18
12
20
15
5
3
22
7
24

Артикул

Название

Примечание

Количество

1

143566C1

FRAME

ASSY, platform sub, Replaces 104152C5

1шт.

2

139140C1

PLATE

ASSY, shift linkage support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

3

384557R1

CLIP

floodlight & cab wiring harness

1шт.

4

366460R1

CABLE CLIP

CLIP, floodlight harness

3шт.

5

104808C1

CLIP

main wiring harness

3шт.

104899C1

NUT

5/16-18 speed grip retainer

9шт.

131-625

NUT,Ret, 3/8"-16

3/8-16 speed grip retainer

5шт.

6

109256C1

SEALING STRIP

sub frame side, seal

2шт.

7

109257C1

SEALING STRIP

sub frame rear, seal

1шт.

8

104753C1

SEAL

sub frame front

2шт.

9

104165C2

PLATFORM

sub-frame

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

12шт.

10

120019C1

COVER

ASSY, seat support

1шт.

104899C1

NUT

5/16-18 speed grip retainer

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

5шт.

11

104260C1

HOUSING

ASSY, LH, console

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 phc type 8

3шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

2шт.

104329C1

NUT

shift panel mtg

5шт.

12

103926C1

PLATE

IPTO opening cover

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5/16 x 1/2 pln type 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

148791C1

SECTOR

ASSY, trans shift, 4 speed, 3388 and 3588 tractors, Replaces 104326C2 by also ordering cover 148810C1

1шт.

13

148811C1

SECTOR

ASSY, trans shift, 3 speed, 3788 tractors

1шт.

104036C1

NUT

console cover mounting

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

5шт.

14

104264C1

SUPPORT

STRIP, seat support dust, seal

2шт.

15

104331C2

SECTOR

LH console, cover, 3388 and 3588 tractors

1шт.

15

104570C2

SECTOR

LH console, cover, 3788 tractors

1шт.

16

104316C1

SEAL

console cover edge

2шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, console cover mtg., No. 10 x 3/4

5шт.

17

120491C91

HOUSING

ASSY, RH, console, Includes ref. nos. 18, 19, 20 & 25

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 phc type 8

3шт.

18

102091C1

SUPPORT

LEVER, position control handle lockout

1шт.

19

120474C1

LEVER

neutral lockout

4шт.

20

120475C1

LEVER

float lockout

4шт.

104803C1

WASHER

lockout lever friction

10шт.

104804C1

RIVET,Pop, 3/16" x .575"

3/16 aluminum pop

10шт.

21

104327C1

SUPPORT

RH console extension, plate

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

3шт.

22

120793C1

COVER, RH console

1шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, console cover mtg, No. 10 x 3/4

6шт.

23

143565C1

COVER

draft control opening, Replaces 104519C1

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

24

120066C2

BAR

console tie

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

2шт.

25

139108C1

LEVER

motor lock

1шт.

104803C1

WASHER

lever friction

1шт.

104804C1

RIVET,Pop, 3/16" x .575"

3/16 aluminum pop

1шт.

26

148810C1

COVER

LH console, insert

1шт.

Выбрано товаров: 51
