Запчасти Case IH 3588 (13-08) - SUPERSTRUCTURE, SOUND INSULATION (05) - SUPERSTRUCTURE

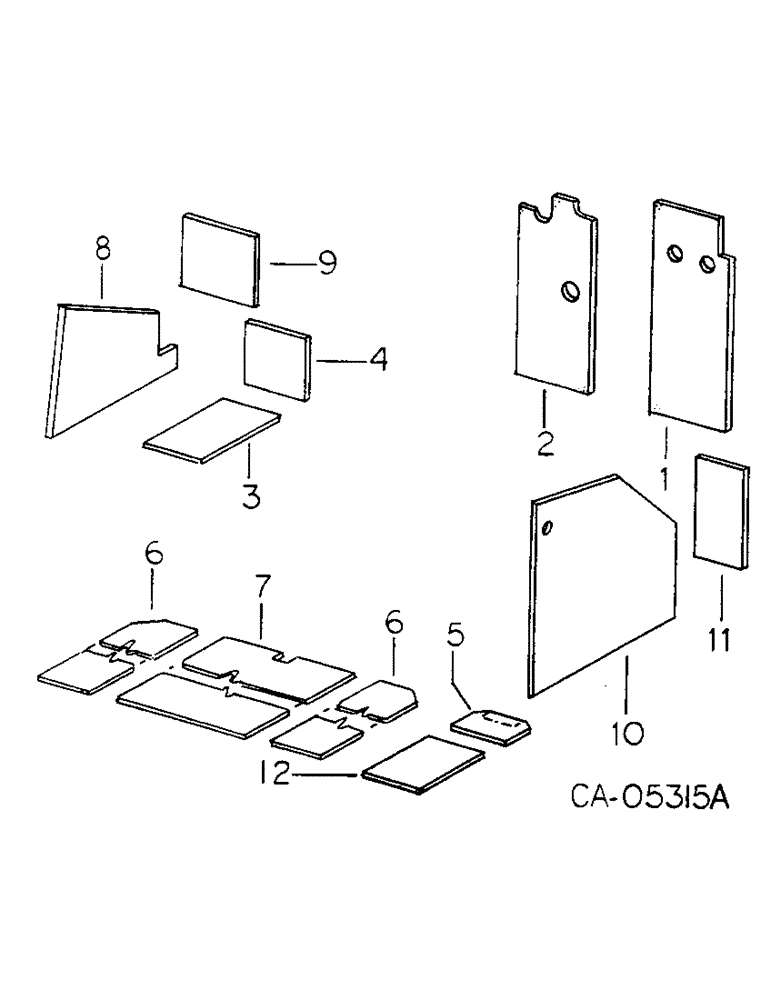

Схема запчастей Case IH 3588 - (13-08) - SUPERSTRUCTURE, SOUND INSULATION (05) - SUPERSTRUCTURE
2
5
11
4
6
8
1
6
3
12
10
7
9

Артикул

Название

Примечание

Количество

1

120320C2

PAD

RH firewall sound insulation

1шт.

2

120321C3

PAD

LH firewall sound insulation

1шт.

3

120356C1

PAD

LH console bottom rear, Replaces 120323C1 by, Serial Range: cutting-size

1шт.

4

120356C1

PAD

LH console bottom front, Replaces 120324C1 by, Serial Range: cutting-size

1шт.

5

120356C1

PAD

RH console bottom insulation, Replaces 144266C1 by, Serial Range: cutting-size

1шт.

6

120330C2

PAD

seat support outer LH & RH

2шт.

7

120331C2

PAD

seat support center

1шт.

8

120327C1

PAD

LH console side insulation, Replaces 120327C1 by, Serial Range: cutting-size

1шт.

9

120329C1

PAD

LH console front insulation

1шт.

10

120327C1

PAD

RH console side insulation, Replaces 120325C2 by, Serial Range: cutting-size

1шт.

11

NOT USED IN THIS APPLICATION

1шт.

12

120329C1

PAD

RH console bottom insulation

1шт.

Выбрано товаров: 12
