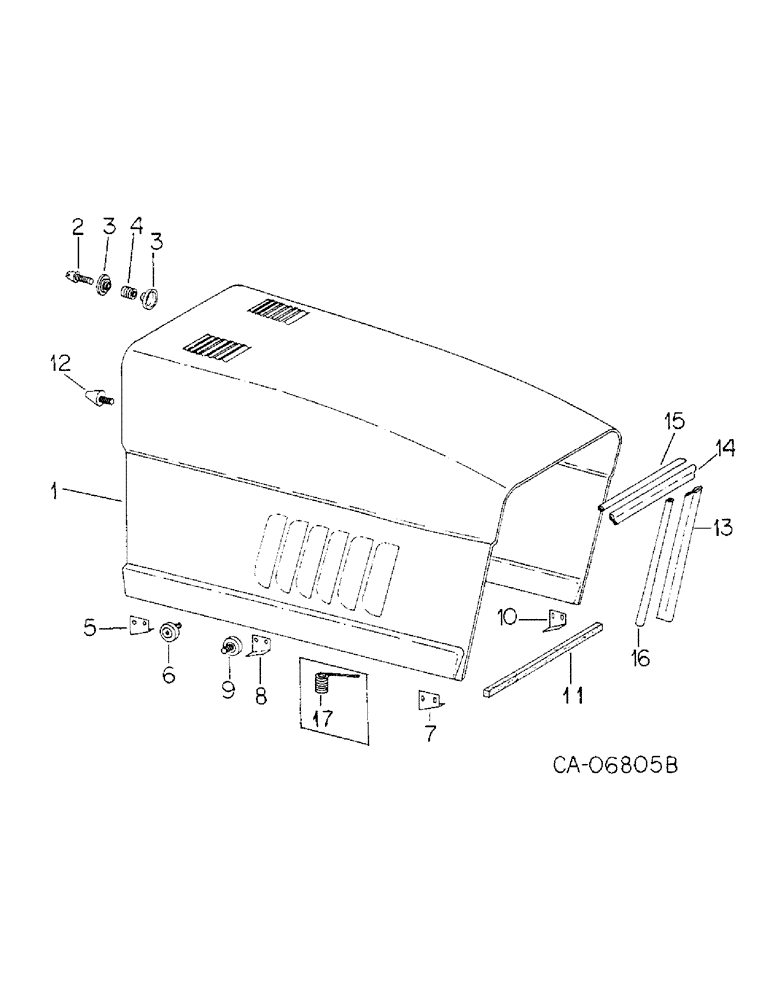

Запчасти Case IH 3588 (13-01) - SUPERSTRUCTURE, FRONT HOOD (05) - SUPERSTRUCTURE

1

146917C1

HOOD

ASSY, front, Replaces hood 127697C1 on 3388 tractors by also ordering package, 1250171C91, Serial Range: -10079

1шт.

1

146917C1

HOOD

ASSY, front, Replaces hood 127697C1 on 3588 tractors by also ordering package, 1250171C91, Serial Range: -11887

1шт.

142271C1

SHIELD

heat 152.5 x 400

1шт.

142272C1

SHIELD

heat 305 x 850

1шт.

2

142220C1

BOLT,7/16" - 14 x 90.42mm

hood latch

1шт.

3

416749C1

RETAINER

spring

2шт.

4

141863C1

SPRING

hood latch

1шт.

120389

WASHER,7/16"

.500 x 1.250 x .064

1шт.

272230

SPACER

NUT, 7/16 pln thick type 5

1шт.

5

138786C1

STOP

rear RH channel

1шт.

109084

NUT,1/4"-20, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

141831C3

ROLLER

track

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

138789C2

STOP

SUPPORT, lower frt hood RH side, stop

1шт.

102635

NUT,3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

8

138800C1

STOP

rear LH channel

1шт.

109084

NUT,1/4"-20, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

141831C3

ROLLER

track

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

138787C2

STOP

lower front hood LH side

1шт.

102635

NUT,3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

11

60760C1

GASKET

bottom

1шт.

12

437385C1

BUMPER

rubber

2шт.

120376

NUT,5/16"-18, G5

2шт.

13

138886C2

SEAL

side, weather strip

2шт.

14

138887C2

SEAL

top, weather strip

1шт.

15

138888C1

SEAL

top guard

1шт.

16

138889C1

SEAL

side guard

2шт.

17

138797C2

SPRING

secondary latch, 3388, Serial Range: -10079

1шт.

17

138797C2

SPRING

secondary latch, 3588, Serial Range: -11887

1шт.

60760C1

GASKET

HOOD SEALER, Use 92.1 in. from bulk carton marked 146793C1

1шт.

1250171C91

LATCH ASSY.

PACKAGE, secondary hood latch service, Consists of

1шт.

146703C1

LEVER

ASSY, hood latch cable

1шт.

28259R1

SCREW

1/4 x 2 znp h/hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

146702C1

SPRING

torsion

1шт.

146701C1

SHAFT

hood latch pivot

1шт.

17080R1

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

146853C1

NUT

plate 1/4-20

1шт.

146700C1

CLAMP

control cable

1шт.

186491

SCREW,Hex Hd, 1/4"-20 x 1/2", w/LW

1/4 x 1/2 znp h/hd l/w mach

2шт.

138834C3

SHIELD

ASSY, heat

1шт.

132949C2

CABLE

ASSY, hood latch

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.
