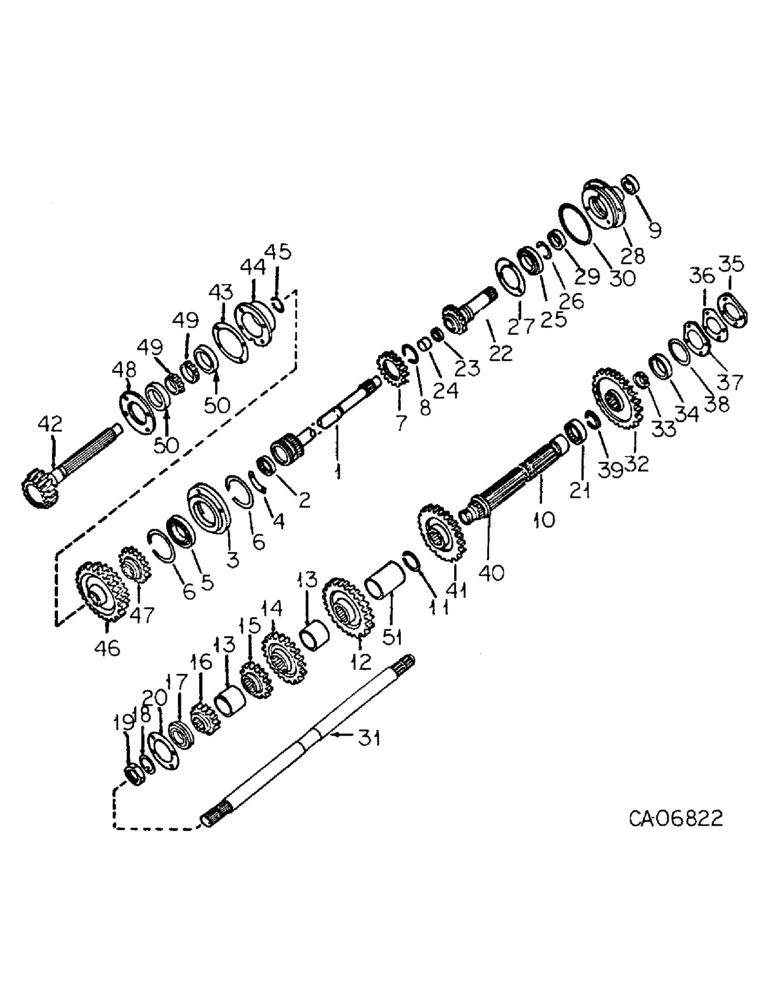

Запчасти Case IH 3588 (07-18) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING, 3388 AND 3588 TRACTORS (04) - Drive Train

1

380076R4

SHAFT

transmission drive

1шт.

2

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

BEARING, main shaft front, 3588 tractors

1шт.

2

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

main shaft front, 3388 tractors

1шт.

3

141993C1

CAGE

constant mesh drive gear brg

1шт.

4

380081R1

PLATE

constant mesh drive gear brg cage lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

4шт.

5

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING, constant mesh drive gear

1шт.

6

392683R1

RING

constant mesh drive brg cage int snap

2шт.

7

141992C1

GEAR

constant mesh drive, 28T

1шт.

8

381330R1

RING

constant mesh drive gear ext snap

1шт.

9

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch pilot

1шт.

9

524598R91GV

BEARING

Value, Ball Bearing

1шт.

10

148951C2

SHAFT

COUNTERSHAFT, LH thread, Replaces 71484C1 countershaft RH thread by also ordering LH thread nut, 148952C1

1шт.

11

357035R1

RING

constant mesh gear snap

1шт.

12

141991C2

GEAR

constant mesh, 45T

1шт.

13

380126R2

SPACER

countershaft gears

2шт.

14

528671R1

GEAR

3rd speed driving, 42T

1шт.

15

142098C1

GEAR

2nd speed driving, 32T

1шт.

16

406473R1

GEAR

1st speed driving, 27T

1шт.

17

539163R91

BEARING ASSY,2.3622" ID x 4.3307" OD x 0.8661"

countershaft rear

1шт.

18

380091R2

THRUST WASHER,59.51mm ID x 82.55mm OD x 1.52mm Thk

countershaft brg lock nut, Used w/countershaft, 71784C1

1шт.

19

539281R1

NUT

countershaft brg lock, RH thread

1шт.

19

148952C2

NUT

countershaft brg lock, LH thread

1шт.

20

380093R1

RETAINER

countershaft rear brg

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

384114R91

NEEDLE BEARING

countershaft front needle

1шт.

22

104401C1

SHAFT

IPTO drive

1шт.

23

127513C1

OIL SEAL

drive shaft oil

1шт.

24

69751C1

BUSHING

ASSY, drive shaft w/space

1шт.

69752C1

SPACER

drive shaft bushing

1шт.

25

70227C91

BEARING ASSY,55mm ID x 100mm OD x 21mm W

roller

1шт.

ST453

RING

bearing snap

1шт.

26

384337R1

RING

shaft brg retaining

1шт.

27

384184R1

RETAINER

shaft brg

1шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 phc p/t type 8

3шт.

28

67753C1

CAGE

drive shaft brg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

5шт.

29

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

shaft brg cage oil

1шт.

30

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 x 1/8 shaft brg cage sealing

1шт.

31

67754C1

SHAFT

IPTO driven, 3588 tractors

1шт.

31

65357C1

SHAFT

IPTO driven, 3388 tractors

1шт.

32

104400C1

GEAR

IPTO driven, 58T, 3588 tractors

1шт.

32

68512C1

GEAR

IPTO driven, 58T, 3388 tractors

1шт.

33

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

ASSY, IPTO shaft frt cone

1шт.

34

376463C1

BEARING CUP

BEARING, IPTO shaft frt cup

1шт.

35

67757C1

RETAINER

driven shaft brg

1шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 phc p/t type 8

4шт.

36

67758C1

SHIM

shaft brg retainer, .028

1шт.

37

67760C1

SHIM

shaft brg retainer, .007

3шт.

38

67761C1

SEAL RETAINER

IPTO front brg retainer

1шт.

39

67755C1

RING

IPTO driven ring snap, 3588 tractors

1шт.

39

359141R1

RING, SNAP

RING, IPTO driven ring snap, 3388 tractors

1шт.

40

71147C2

SPACER

TA driven gear, tractors w/torque amplifier

1шт.

41

68142C2

GEAR

TA driven, 47T, tractors w/torque amplifier

1шт.

42

529282R2

SHAFT

main, 20 & 23 tooth, tractors w/o torque amplifier

1шт.

42

529434R2

SHAFT

main, 20 & 23 tooth, tractors w/torque amplifier

1шт.

43

380095R1

SHIM

main shaft rear brg (Or as required)

1шт.

44

529283R2

CAGE

main shaft rear brg

1шт.

45

380097R1

RING

main shaft rear brg snap

1шт.

46

142097C1

GEAR

1st & 2nd speed sliding 38 & 46T

1шт.

47

528675R1

GEAR

3rd & 4th speed sliding, 31T

1шт.

48

380098R2

RETAINER

main shaft rear brg

1шт.

NLS

NO LONGER SERVICED

4шт.

49

529207R91

BEARING ASSY,54.99mm ID x 29mm W

ASSY, main shaft rear cone

2шт.

50

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING, main shaft rear cup

2шт.

51

384091R3

SPACER

constant mesh gear, long, tractors w/torque amplifier

1шт.
