Запчасти Case IH 3588 (07-09) - DRIVE TRAIN, REAR DRIVE AXLE, 3388 AND 3588 TRACTORS (04) - Drive Train

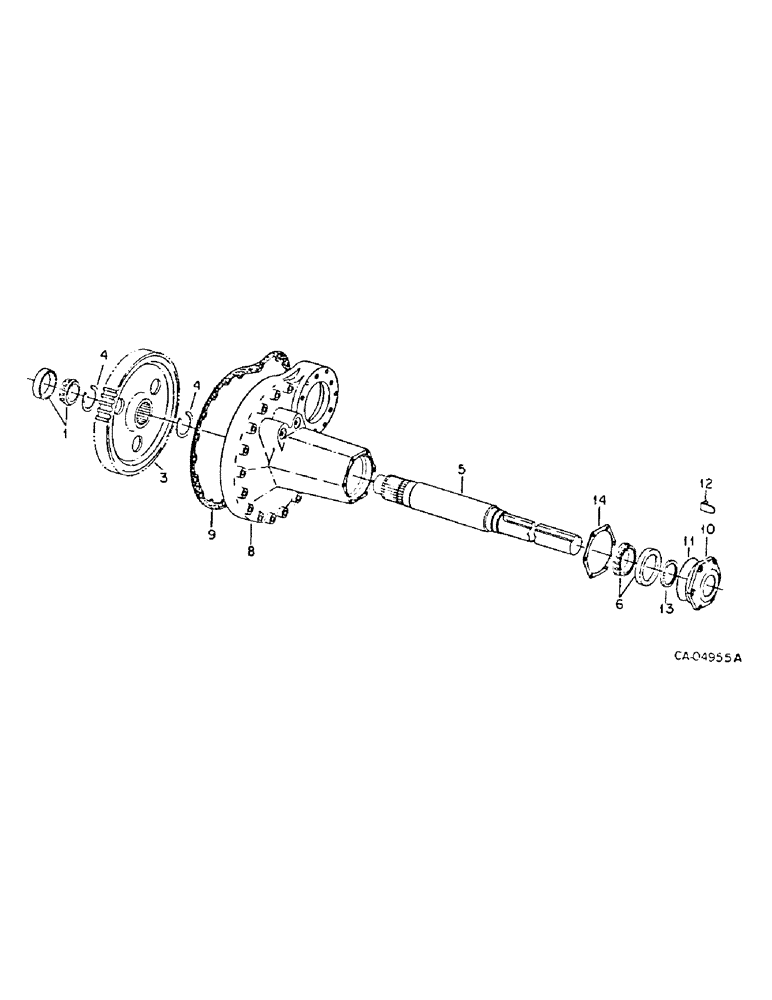

Схема запчастей Case IH 3588 - (07-09) - DRIVE TRAIN, REAR DRIVE AXLE, 3388 AND 3588 TRACTORS (04) - Drive Train
10
3
4
4
13
5
14
1
9
8
11
6
12

Артикул

Название

Примечание

Количество

1

ST2111

BEARING ASSY,66.68mm ID x 122.24mm OD x 38.1mm W

axle inner

2шт.

2

NOT USED THIS APPLICATION

1шт.

3

380219R1

GEAR

bull, 73T, 3388 tractor

2шт.

3

384075R1

GEAR

bull, 73T, 3588 tractor

2шт.

4

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap

4шт.

5

535664R2

AXLE

rear, 104 in.

2шт.

5

535662R1

AXLE

rear, 118 in.

2шт.

6

ST2041

TAPERED BEARING,3.376" ID x 5.376" OD x 1.2015"

BEARING, rear axle outer

2шт.

7

NOT USED THIS APPLICATION

1шт.

8

143528C1

CARRIER

rear axle

2шт.

271568

PIPE FITTING,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 pln type 5

20шт.

271571

SEALING RING COLLAR

BOLT, 5/8 x 4-1/4 pln type 5

16шт.

9

380225R2

GASKET

rear axle carrier

2шт.

10

530033R2

CAP

rear axle carrier

2шт.

11

529133R1

RING

rear axle carrier cap sealing

2шт.

12

392346R1

BRACKET

rear wheel inner position cage

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8 x 1-3/8 pln type 5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

13

535667R91

OIL SEAL

rear axle carrier cap oil

2шт.

14

380227R2

SHIM

rear axle carrier cap, .007 (Or as required)

6шт.

14

380228R2

SHIM

rear axle carrier cap, .012 (Or as required)

4шт.

14

380229R2

SHIM

rear axle carrier cap, .030

1шт.

14

380230R2

SHIM

rear axle carrier cap, .004

1шт.

14

385158R2

SHIM

rear axle carrier cap, .003

1шт.

Выбрано товаров: 24
